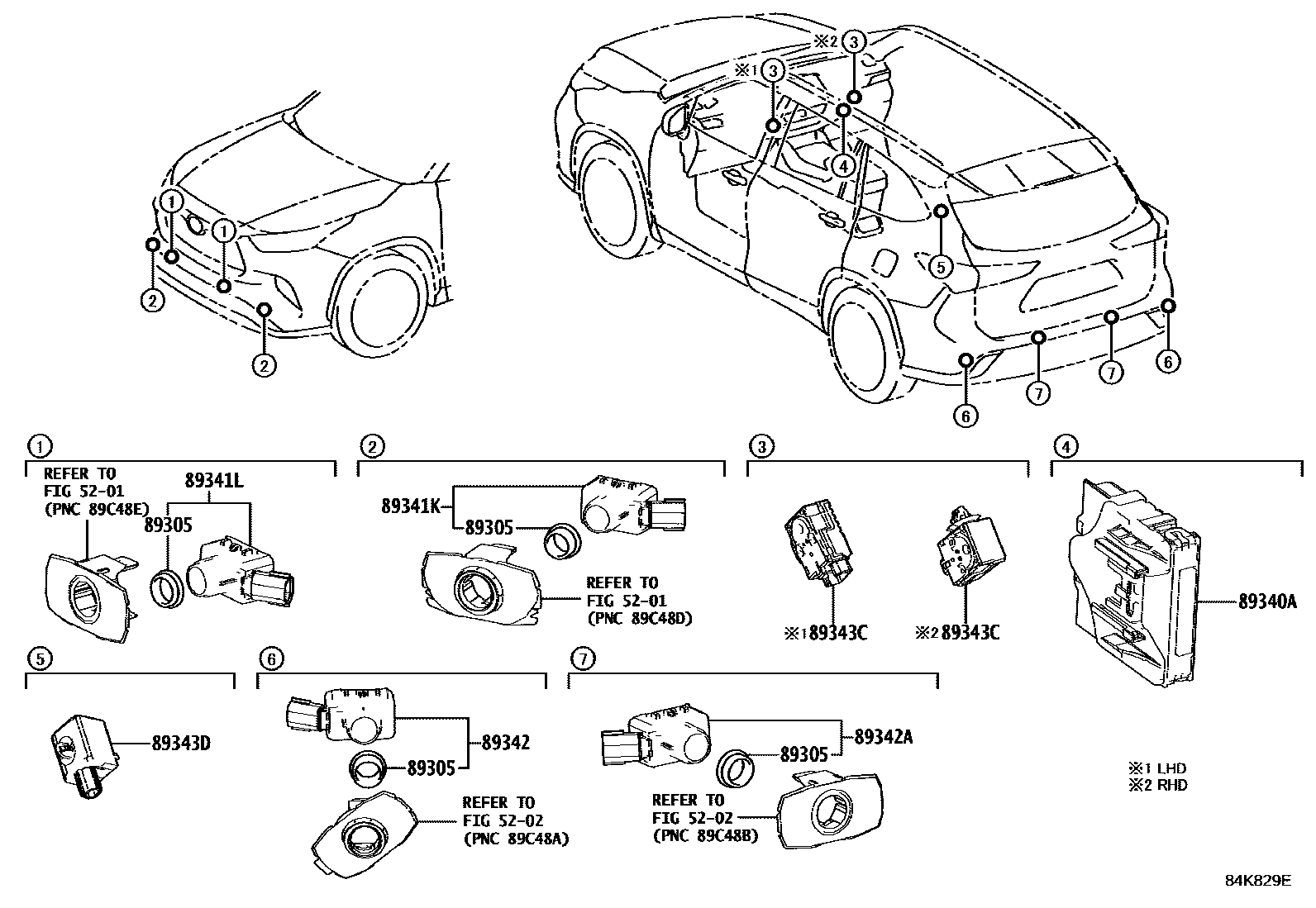

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iAXUH78,TXUA7#..RHD202210-202312

main89305-52010iAXUH70..LIMD202311-202410

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-0E050iAXUH7#..LIMD..GCC202002-202210

main89340-0E060iAXUH78,GSU75..(LE,LIMD)..(EUR,RUS)202003-202210

main89340-0E100iAXUH78,GSU7#..ARL202012-202210

main89340-0E190iAXUH78,TXUA75..LHD..(LE,LIMD)..(EUR,RUS)202210-202311

main89340-0E200iAXUH78,TXUA7#..ARL202210-202312

main89340-0E270iAXUH78,TXUA75..(LE,LIMD)..(EUR,RUS)202311-202503

*614

main89340-0E280iAXUH78..LHD..LIMD..EUR; AXUH78..XLE..EUR202311-202503

*614; AZERBAIJAN SPEC,*614

main89340-0E290iAXUH78..ARL202401

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0E040-A0×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

PLATINUM WHITE PEARL MC.,089

main89341-0E040-B1×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

SILVER ME.,1J9

main89341-0E040-B4×2iAXUH78..ARL;AXUH78..LIMD..GCC202410

PRECIOUS METAL,1L5

main89341-0E040-B6×2iTXUA7#;AXUH78..EUR202311-202503

GRAY ME.,1G3

main89341-0E040-B7×2iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202410

PRECIOUS GALENA,1K5

main89341-0E040-C3×2iAXUH70..LIMD202311-202410

ATTITUDE BLACK MC.,218

main89341-0E040-D0×2iTXUA7#;AXUH78..EUR202311-202503

RED MC.,3T3

main89341-0E040-G1×2iAXUH70..LIMD202311-202410

GREEN M.M.,6X5

main89341-0E040-J0×2iTXUA7#;AXUH78..EUR202311-202503

DK. BLUE MC.,8X8

main89341-33220-A1×2iAXUH78,TXUA7#..RHD202210-202312

PLATINUM WHITE PEARL MC.,089

main89341-33220-A5×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202110

WHITE PEARL CS.,070

main89341-33220-B1×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

SILVER ME.,1J9

main89341-33220-B9×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

PRECIOUS GALENA,1K5

main89341-33220-C0×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

ATTITUDE BLACK MC.,218

main89341-33220-D7×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

RED MC.,3T3

main89341-33220-J9×2iAXUH78,TXUA7#..RHD202210-202312

DK. BLUE MC.,8X8

main89341-33220-L4×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

BLACKISH BROWN MC.,4X9

main89341-33220-P2×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

GRAY ME.,1G3

main89341-33220-Q0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

GREEN M.M.,6X5

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0E040-A0×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

PLATINUM WHITE PEARL MC.,089

main89341-0E040-B1×2iTXUA7#;AXUH78..EUR202311-202503

SILVER ME.,1J9

main89341-0E040-B4×2iAXUH78..ARL;AXUH78..LIMD..GCC202410

PRECIOUS METAL,1L5

main89341-0E040-B6×2iTXUA7#;AXUH78..EUR202311-202503

GRAY ME.,1G3

main89341-0E040-B7×2iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202410

PRECIOUS GALENA,1K5

main89341-0E040-C3×2iTXUA7#;AXUH78..EUR202311-202503

ATTITUDE BLACK MC.,218

main89341-0E040-D0×2iAXUH70..LIMD202311-202410

RED MC.,3T3

main89341-0E040-G1×2iAXUH70..LIMD202311-202410

GREEN M.M.,6X5

main89341-0E040-J0×2iTXUA7#;AXUH78..EUR202311-202503

DK. BLUE MC.,8X8

main89341-33220-A1×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

PLATINUM WHITE PEARL MC.,089

main89341-33220-A5×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202110

WHITE PEARL CS.,070

main89341-33220-B1×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

SILVER ME.,1J9

main89341-33220-B9×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

PRECIOUS GALENA,1K5

main89341-33220-C0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

ATTITUDE BLACK MC.,218

main89341-33220-D7×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

RED MC.,3T3

main89341-33220-J9×2iAXUH78,TXUA7#..RHD202210-202312

DK. BLUE MC.,8X8

main89341-33220-L4×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

BLACKISH BROWN MC.,4X9

main89341-33220-P2×2iAXUH78,TXUA7#..RHD202210-202312

GRAY ME.,1G3

main89341-33220-Q0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

GREEN M.M.,6X5

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0E040-A0×2iTXUA7#;AXUH78..EUR202311-202503

PLATINUM WHITE PEARL MC.,089

main89341-0E040-B1×2iAXUH70..LIMD202311-202410

SILVER ME.,1J9

main89341-0E040-B4×2iAXUH78..ARL;AXUH78..LIMD..GCC202410

PRECIOUS METAL,1L5

main89341-0E040-B6×2iAXUH70..LIMD202311-202410

GRAY ME.,1G3

main89341-0E040-B7×2iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202410

PRECIOUS GALENA,1K5

main89341-0E040-C3×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

ATTITUDE BLACK MC.,218

main89341-0E040-D0×2iAXUH70..LIMD202311-202410

RED MC.,3T3

main89341-0E040-G1×2iAXUH70..LIMD202311-202410

GREEN M.M.,6X5

main89341-0E040-J0×2iAXUH70..LIMD202311-202410

DK. BLUE MC.,8X8

main89341-33220-A1×2iAXUH78,TXUA7#..RHD202210-202312

PLATINUM WHITE PEARL MC.,089

main89341-33220-A5×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202110

WHITE PEARL CS.,070

main89341-33220-B1×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

SILVER ME.,1J9

main89341-33220-B9×2iAXUH78,TXUA7#..RHD202210-202312

PRECIOUS GALENA,1K5

main89341-33220-C0×2iAXUH78,TXUA7#..RHD202210-202312

ATTITUDE BLACK MC.,218

main89341-33220-D7×2iAXUH78,TXUA7#..RHD202210-202312

RED MC.,3T3

main89341-33220-J9×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

DK. BLUE MC.,8X8

main89341-33220-L4×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

BLACKISH BROWN MC.,4X9

main89341-33220-P2×2iAXUH78,TXUA7#..RHD202210-202312

GRAY ME.,1G3

main89341-33220-Q0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

GREEN M.M.,6X5

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0E040-A0×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

PLATINUM WHITE PEARL MC.,089

main89341-0E040-B1×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

SILVER ME.,1J9

main89341-0E040-B4×2iAXUH78..ARL;AXUH78..LIMD..GCC202410

PRECIOUS METAL,1L5

main89341-0E040-B6×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

GRAY ME.,1G3

main89341-0E040-B7×2iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202410

PRECIOUS GALENA,1K5

main89341-0E040-C3×2iAXUH70..LIMD202311-202410

ATTITUDE BLACK MC.,218

main89341-0E040-D0×2iAXUH78..ARL;AXUH78..LIMD..GCC202311

RED MC.,3T3

main89341-0E040-G1×2iAXUH70..LIMD202311-202410

GREEN M.M.,6X5

main89341-0E040-J0×2iTXUA7#;AXUH78..EUR202311-202503

DK. BLUE MC.,8X8

main89341-33220-A1×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202110-202210

PLATINUM WHITE PEARL MC.,089

main89341-33220-A5×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202110

WHITE PEARL CS.,070

main89341-33220-B1×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

SILVER ME.,1J9

main89341-33220-B9×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

PRECIOUS GALENA,1K5

main89341-33220-C0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

ATTITUDE BLACK MC.,218

main89341-33220-D7×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

RED MC.,3T3

main89341-33220-J9×2iAXUH78,TXUA7#..RHD202210-202312

DK. BLUE MC.,8X8

main89341-33220-L4×2iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

BLACKISH BROWN MC.,4X9

main89341-33220-P2×2iAXUH78,TXUA7#..RHD202210-202312

GRAY ME.,1G3

main89341-33220-Q0×2iTXUA75..RUS;AXUH7#..LHD..LIMD202210-202311

GREEN M.M.,6X5

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iAXUH7#..LIMD..GCC;AXUH78,GSU7#..(LE,LIMD)..(ARL,EUR,RUS)202002-202210

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-0R020iAXUH78..ARL;AXUH78..LIMD..GCC202403

main89747-30040iAXUH7#..LIMD..GCC;AXUH78,TXUA7#..ARL,EUR,RUS202311-202402
