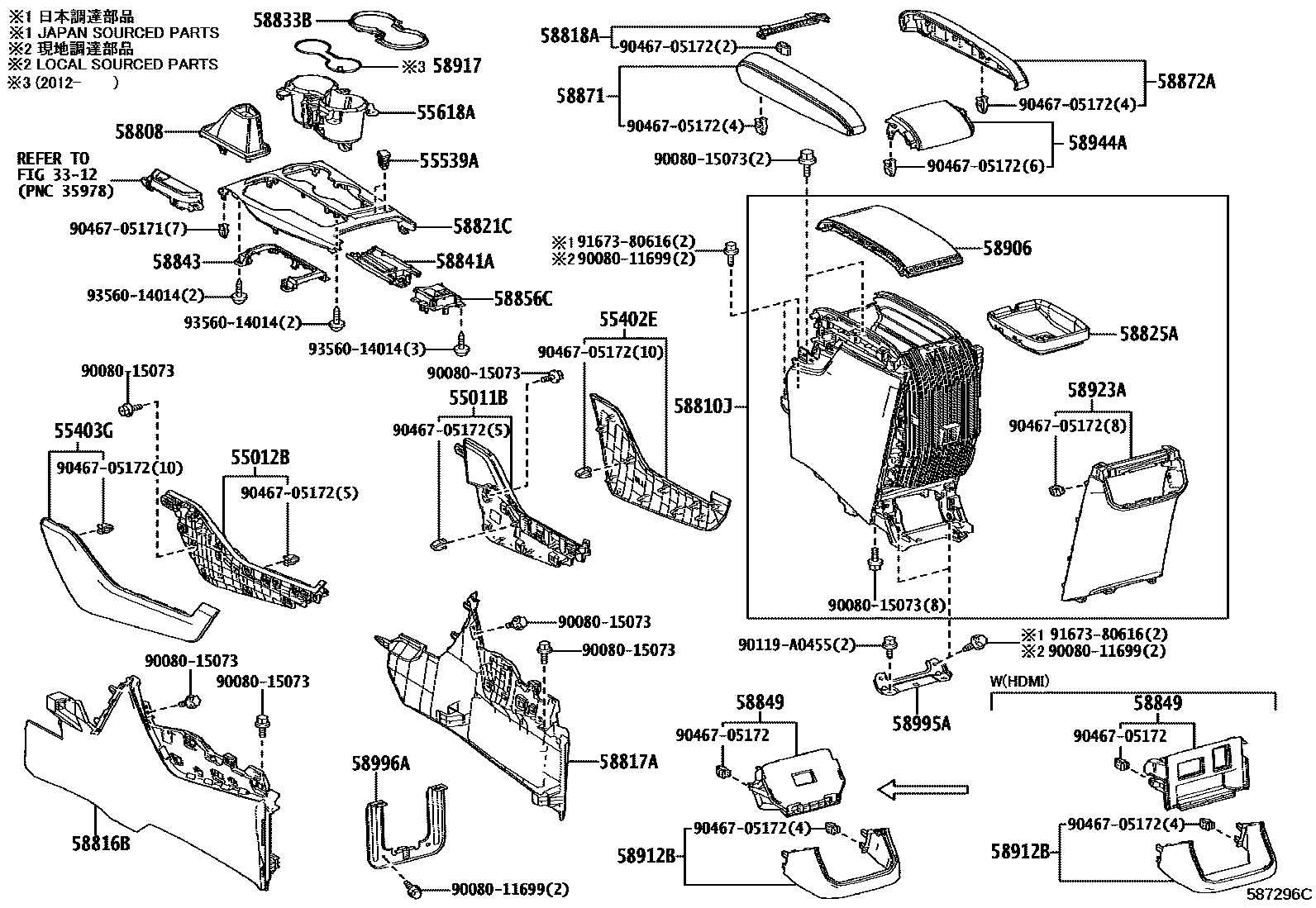

CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
55011BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1
55012BGARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55402EPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.1
GREY, GREY,TRIM1#
BLACK, GREY,TRIM2#
BLACK/BLACK,TRIM42
OCHER, BROWN,TRIM41
NEUTRAL BEIGE, IVORY,TRIM4#; NEUTRAL BEIGE, IVORY,TRIM40
GRAY,TRIM1#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
55403GPAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2
GREY, GREY,TRIM1#
BLACK, GREY,TRIM2#
BLACK/BLACK,TRIM42
OCHER, BROWN,TRIM41
NEUTRAL BEIGE, IVORY,TRIM4#; NEUTRAL BEIGE, IVORY,TRIM40
main55403-0E070-B0iAXUH78..LE..GCC;AXUH78..XLE..EUR;AXUH70,TXUA75..LHD..(LE,XLE); AXUH78..XLE..GCC202210-202311
GRAY,TRIM1#; GRAY,TRIM10
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
55539ACOVER, SPARE SWITCH HOLE
55618AHOLDER, CONSOLE BOX CUP
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0E070-C0iAXUH7#..(LE,XLE)..GCC; GSU75..RUS;AXUH7#..LHD..LIMD;AXUH78..LHD..XLE..EUR202002-202210
BLACK/GRAY,TRIM1#,2#; BLACK/GRAY,TRIM1#,2#,4#
BLACK/BLACK,TRIM20
BLACK,TRIM1#,2#,4#
58810JBOX ASSY, CONSOLE
main58810-0E330-C0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
BLACK/GRAY,TRIM1#; BLACK/GRAY,TRIM10
main58810-0E330-C1iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
BLACK/BLACK,TRIM13,2#; BLACK/BLACK,TRIM2#
BLACK/NEUTRAL BEIGE,TRIM4#; BLACK/NEUTRAL BEIGE,TRIM40
BLACK/OCHER,TRIM41
NOBLE BROWN/BEIGE,TRIM40
NOBLE BROWN/OCHER,TRIM41
BLACK/GRAY,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,42
BLACK/BEIGE,TRIM4#
BLACK/OCHER,TRIM41
TELEVISION & DVD PLAYER-WITH,BLACK, GREY,TRIM1#
TELEVISION & DVD PLAYER-WITH,BLACK, BLACK,TRIM2#
TELEVISION & DVD PLAYER-WITH,NOBLE BROWN, BEIGE,TRIM4#
TELEVISION & DVD PLAYER-WITH,NOBLE BROWN, OCHER,TRIM41
WIRELESS CHARGER-WITH (ILA),BLACK, GRAY,TRIM1#
WIRELESS CHARGER-WITH (ACCESSORY),BLACK, BLACK,TRIM2#
WIRELESS CHARGER-WITH (ACCESSORY),BLACK/NEUTRAL BEIGE,TRIM40
WIRELESS CHARGER-WITH (ACCESSORY),BLACK/OCHER,TRIM41
WIRELESS CHARGER-WITH (ILA),NOBLE BROWN, BEIGE,TRIM4#; WIRELESS CHARGER-WITH (ILA),NOBLE BROWN, BEIGE,TRIM40
WIRELESS CHARGER-WITH (ILA),NOBLE BROWN/OCHER,TRIM41
WIRELESS CHARGER-WITH (ACCESSORY),BLACK/GRAY,TRIM1#
WIRELESS CHARGER-WITH (ACCESSORY),BLACK,TRIM2#; WIRELESS CHARGER-WITH (ACCESSORY),BLACK,TRIM2#,42
WIRELESS CHARGER-WITH (ACCESSORY),BLACK/ BEIGE,TRIM40
WIRELESS CHARGER-WITH (ACCESSORY),BLACK/ OCHER,TRIM41
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM4#
main58816-0E190-C0iAXUH7#..(LE,XLE)..GCC; TXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
58818ACOVER, CONSOLE BOX, FR
GRAY,TRIM1#
BLACK,TRIM2#; BLACK,TRIM2#,42
main58818-0E060-E1iAXUH7#..LIMD..GCC;AXUH78,TXUA75..(LE,XLE)..(EUR,RUS); AXUH78,TXUA75..LHD..LIMD..(EUR,RUS)202210-202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
OCHER,TRIM41
58821CPANEL, CONSOLE, UPPER
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58841ACOVER, SHIFTING HOLE
58843BEZEL, SHIFTING HOLE
58849COVER, CONSOLE BOX HOLE, NO.2
TELEVISION & DVD PLAYER-WITH
58856CHOLDER, CONSOLE
58871CUSHION, CONSOLE BOX
main58871-0E010-B0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
GRAY/GRAY,TRIM1#; GRAY/GRAY,TRIM10
BLACK/GRAY,TRIM2#
BLACK/OCHRE,TRIM13
BLACK/MD GRAY,TRIM20
OCHER/BROWN,TRIM41
main58871-0E010-E3iAXUH78,TXUA7#..LIMD..(ARL,EUR,RUS); AXUH78..LIMD..GCC;AXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202311
NEUTRAL BEIGE/IVORY,TRIM4#; NEUTRAL BEIGE/IVORY,TRIM40
58872ACUSHION, CONSOLE BOX, NO.2
main58872-0E010-B0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
GRAY/GRAY,TRIM1#; GRAY/GRAY,TRIM10
BLACK/GRAY,TRIM2#
BLACK/OCHRE,TRIM13
BLACK/MD GRAY,TRIM20
OCHER/BROWN,TRIM41
main58872-0E010-E3iAXUH78,TXUA7#..LIMD..(ARL,EUR,RUS); AXUH78..LIMD..GCC;AXUH78,TXUA7#..(LE,XLE)..(ARL,EUR,RUS)202311
NEUTRAL BEIGE/IVORY,TRIM4#; NEUTRAL BEIGE/IVORY,TRIM40
58906DOOR SUB-ASSY, UPPER CONSOLE
main58906-0E050-B0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main58906-0E050-C0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
OCHER,TRIM41
58912BBOX, REAR CONSOLE, LOWER
main58912-0E130-C0iAXUH7#..(LE,XLE)..GCC; TXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
TELEVISION & DVD PLAYER-WITH,BLACK,TRIM1#,2#
TELEVISION & DVD PLAYER-WITH,NOBLE BROWN,TRIM4#
58917MAT, BOX BOTTOM, NO.2
58923APANEL, CONSOLE REAR END
main58923-0E190-C0iAXUH7#..(LE,XLE)..GCC; TXUA75..RUS;AXUH78..XLE..EUR;AXUH7#..LHD..LIMD202210-202311
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM4#
58944ACOVER, CONSOLE, REAR
main58944-0E030-B0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main58944-0E030-C0iAXUH78..XLE..EUR;AXUH70,TXUA75..LHD;AXUH78..LHD..(LE,LIMD); AXUH78..XLE..GCC202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
OCHER,TRIM41
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9008011699
main90080-11699
9008015073
main90080-15073
90119A0455
main90119-A0455
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9356014014
main93560-14014
35 parts on this diagram · 2 diagrams in section
