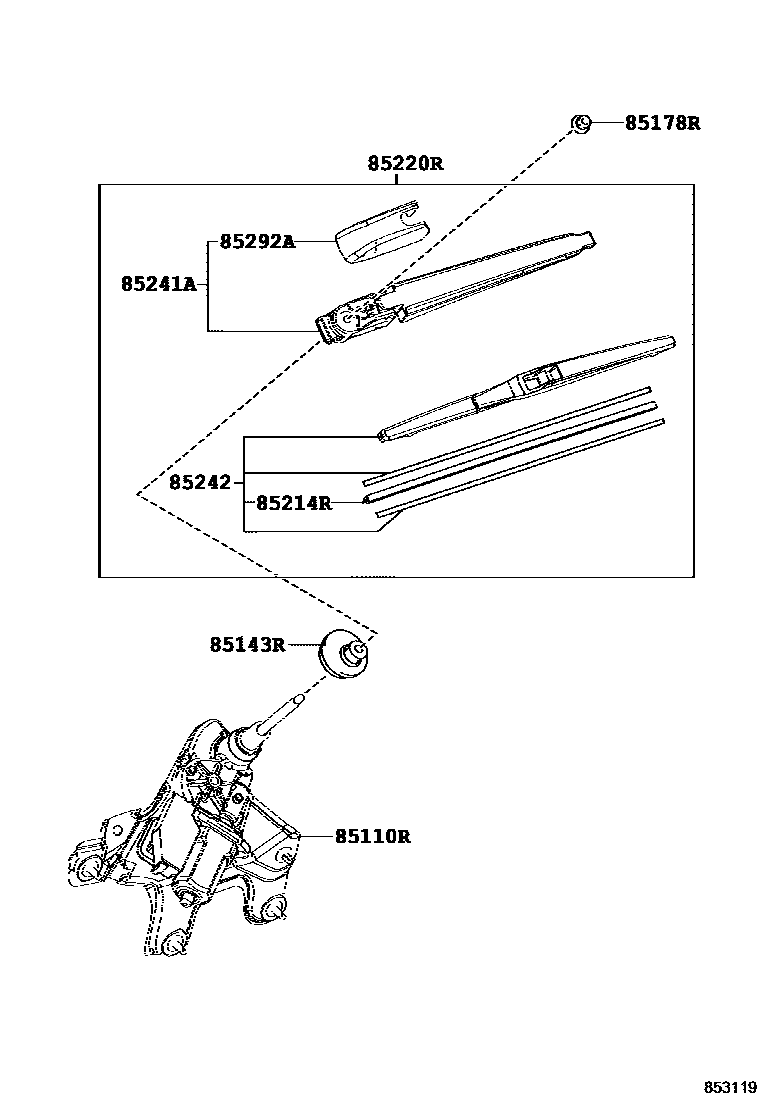

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0E070i201312-201611

main85130-0E080supersedes 85130-0E070i201312-201611

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

85143RGROMMET, REAR WIPER MOTOR

main85143-0E030i201312-201611

85178RNUT (FOR REAR WIPER ARM SETTING)

main90080-17021i201312-201611

85214RRUBBER, REAR WIPER

main85214-0E120i201312-201611

85220RBLADE ASSY, REAR WIPER

main85240-0E050i201312-201611

85241AARM, REAR WIPER

main85241-0E050i201312-201611

85242BLADE, RR WIPER

main85242-0E080i201312-201611

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080i201312-201611

8 parts on this diagram · 2 diagrams in section
