FOG LAMP

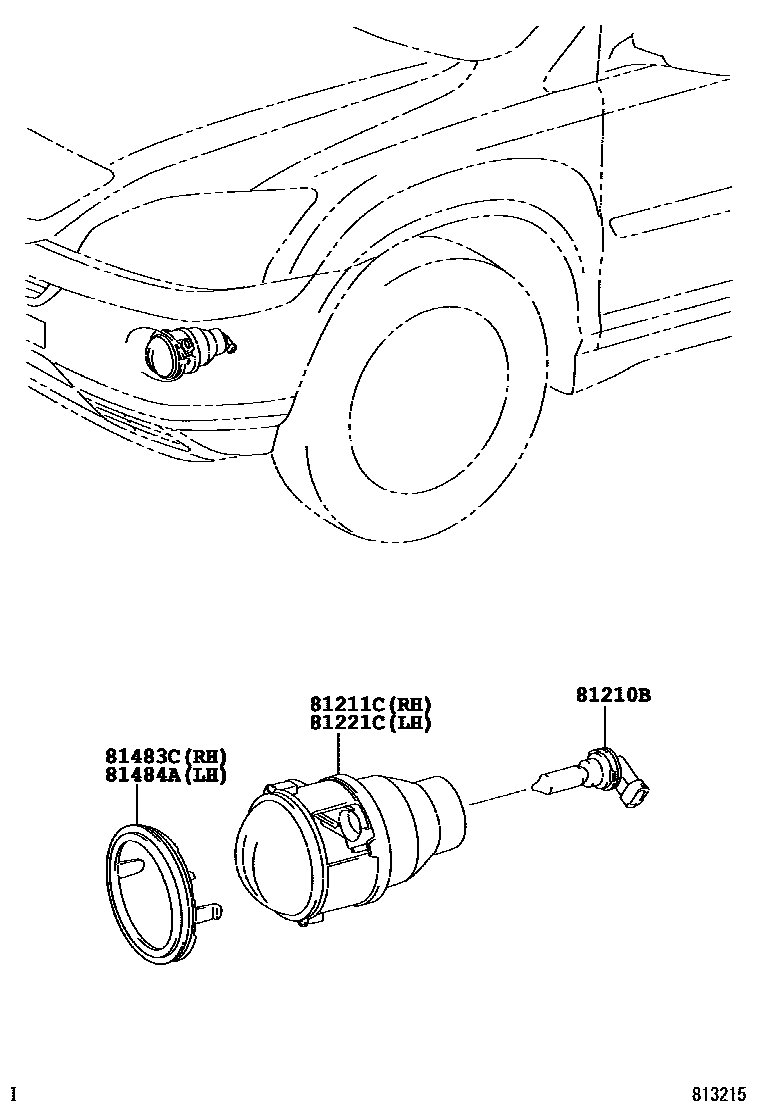

Parts diagram

81210BBULB, FOG LAMP

main90981-13075i200503-200812

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-48040i200503-200610

main81211-48041i200611-200812

81221CLAMP UNIT, FOG LAMP, LH

main81221-48040i200503-200610

main81221-48041i200611-200812

81483CPROTECTOR, FOG LAMP, RH

main81483-48020i200503-200812

81484APROTECTOR, FOG LAMP, LH

main81484-48010i200503-200812

5 parts on this diagram · 1 diagram in section
