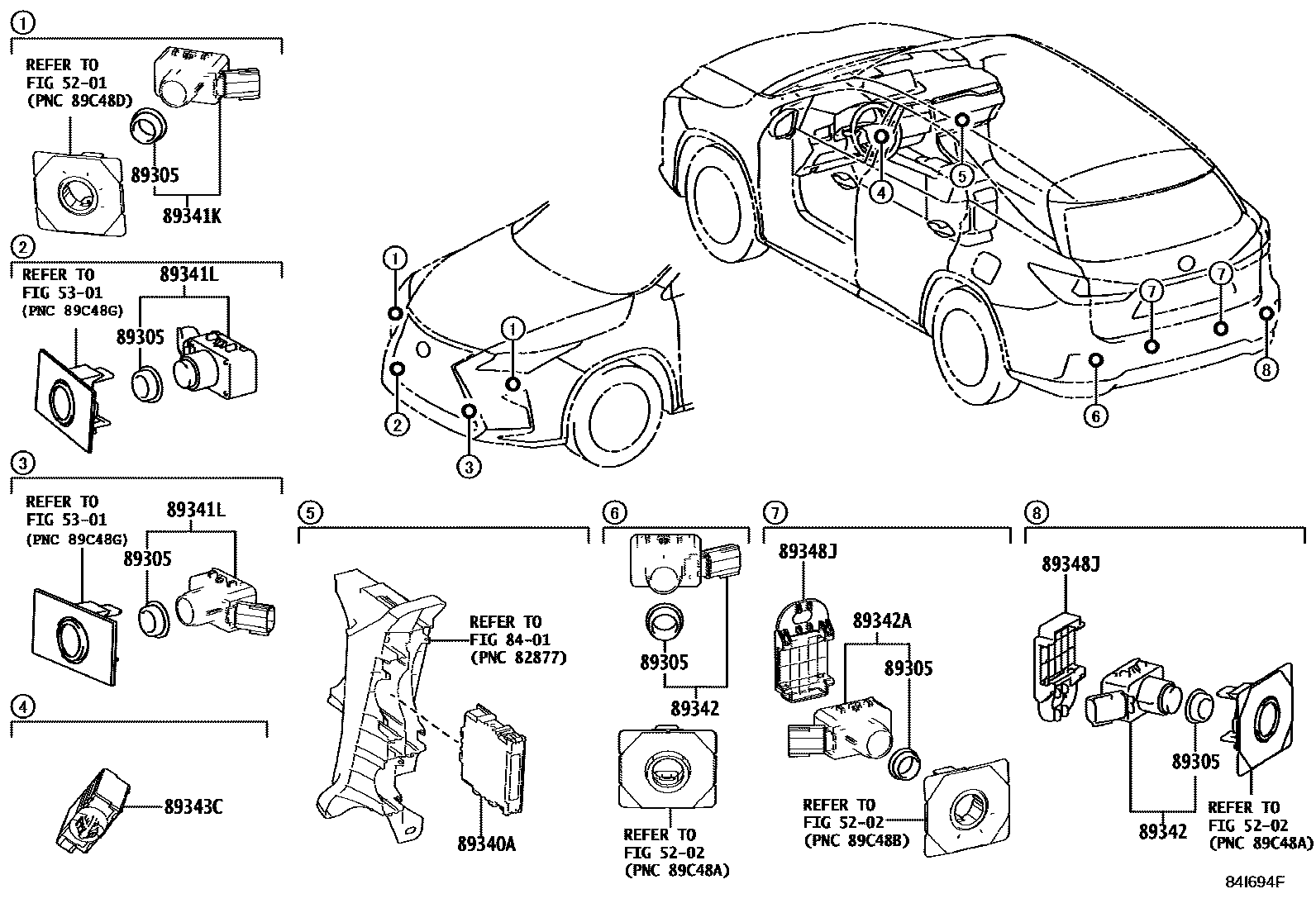

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5301RADIATOR GRILLE

→ Go to FIG 53-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341KSENSOR, ULTRASONIC, FRONT CORNER

89341LSENSOR, ULTRASONIC, FRONT CENTER

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-48040

main89341-33220

89342ASENSOR, ULTRASONIC, REAR CENTER

89343CBUZZER, CLEARANCE WARNING, NO.1

89348JCLIP, ULTRASONIC SENSOR

12 parts on this diagram · 4 diagrams in section
