ABS & VSC

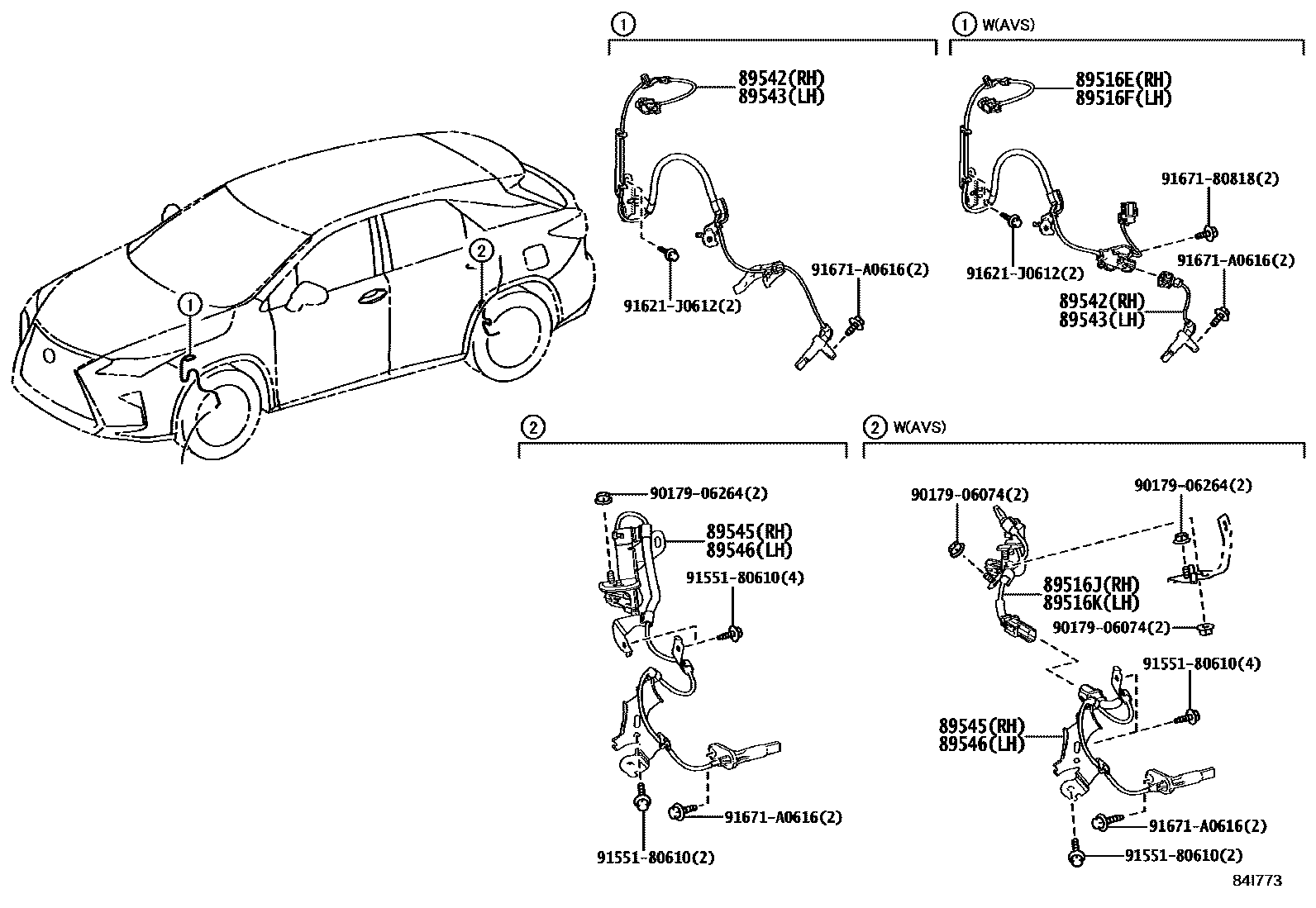

0001 1SKID CONTROL SENSER 0002 1COMPUTER & BUZZER & SENSER 0003 1COMPUTER & BUZZER & SENSER

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-48170iGGL26,GYL26201908

*AVS-WITH

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-48180iGGL26,GYL26201908

*AVS-WITH

89516JWIRE, SKID CONTROL SENSOR, REAR RH NO.2

main89516-48190iGGL26,GYL26201712-201908

*AVS-WITH

89516KWIRE, SKID CONTROL SENSOR, REAR LH NO.2

main89516-48200iGGL26,GYL26201712-201908

*AVS-WITH

89542SENSOR, SPEED, FRONT RH

main89542-48070supersedes 89542-48060iGGL26,GYL26201908

*AVS-WITH

89543SENSOR, SPEED, FRONT LH

main89543-48070supersedes 89543-48060iGGL26,GYL26201712-201908

*AVS-WITH

89545SENSOR, SPEED, REAR RH

main89545-48100supersedes 89545-48090iGGL26,GYL26201712-201908

*AVS-WITH

89546SENSOR, SPEED, REAR LH

main89546-48100supersedes 89546-48090iGGL26,GYL26201712-201908

*AVS-WITH

9017906074

main90179-06074

9017906264

main90179-06264

9155180610

main91551-80610

91621J0612

main91621-J0612

9167180818

main91671-80818

91671A0616

main91671-A0616

14 parts on this diagram · 3 diagrams in section
