REAR COMBINATION LAMP

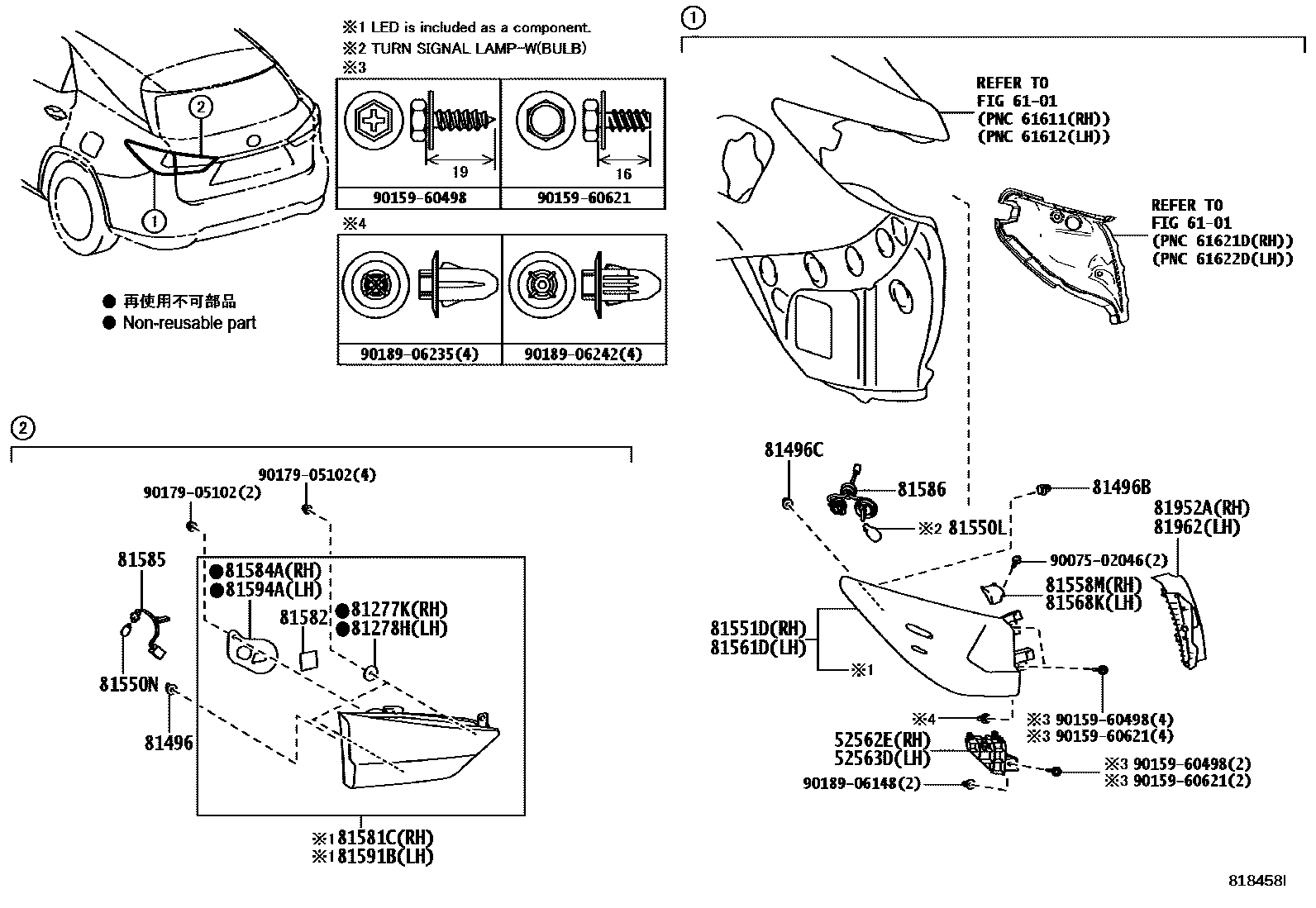

Parts diagram

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-48020i201712-201908

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-48020i201712-201908

6101SIDE MEMBER

→ Go to FIG 61-01

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240×2i201712-201908

81278HSHADE, LICENSE PLATE LAMP, LH

main81277-20240×2i201712-201908

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2i201712-201908

81496BGUIDE, REAR LAMP

main81496-60010×2i201712-201908

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2i201712-201908

81550LAMP ASSY, REAR COMBINATION, RH

main00000-00000supersedes 81550-48470i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP),NOT APPLICABLE

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2i201908

12V 21W,AMBER,REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81550NBULB, BACK UP LAMP

main90981-11059×2i201908-202209

12V 16W,REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48350i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

main81551-48370supersedes 81551-48350i201712-201908

FRONT TURN SIGNAL LAMP-WITH(LED)&SEQUENTIAL

81558MBRACKET, REAR COMBINATION LAMP, RH

main81558-48350i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48350i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

main81561-48370supersedes 81561-48350i201712-201908

FRONT TURN SIGNAL LAMP-WITH(LED)&SEQUENTIAL

81568KBRACKET, REAR COMBINATION LAMP, LH

main81568-48350i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81581CLENS AND BODY, REAR LAMP, RH

main81581-48161i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

main81581-48201supersedes 81581-48161i201712-201908

FRONT TURN SIGNAL LAMP-WITH(LED)&SEQUENTIAL

81582GASKET, REAR LAMP

main81582-48170×2i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81584AGASKET, REAR LAMP RH

main81584-48170supersedes 81584-48310i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81585SOCKET & WIRE, REAR LAMP

main81585-48160×2supersedes 81585-48310i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81586CORD, REAR LAMP

main81555-48350×2i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

main81555-48360×2supersedes 81555-48350i201712-201908

FRONT TURN SIGNAL LAMP-WITH(LED)&SEQUENTIAL

81591BLENS AND BODY, REAR LAMP, LH

main81591-48161i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

main81591-48201supersedes 81591-48161i201712-201908

FRONT TURN SIGNAL LAMP-WITH(LED)&SEQUENTIAL

81594AGASKET, REAR LAMP LH

main81594-48170supersedes 81594-48310i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81952ACOVER, REAR LAMP, RH

main81952-48020supersedes 81952-48030i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

81962COVER, REAR LAMP, LH

main81962-48020supersedes 81962-48030i201908

REAR COMBINATION LAMP-BULB TYPE(BACK UP LAMP & TURN LAMP)

9007502046

main90075-02046

9015960498

main90159-60498

9015960621

main90159-60621

9017905102

main90179-05102

9018906148

main90189-06148

9018906235

main90189-06235

9018906242

main90189-06242

31 parts on this diagram · 2 diagrams in section
