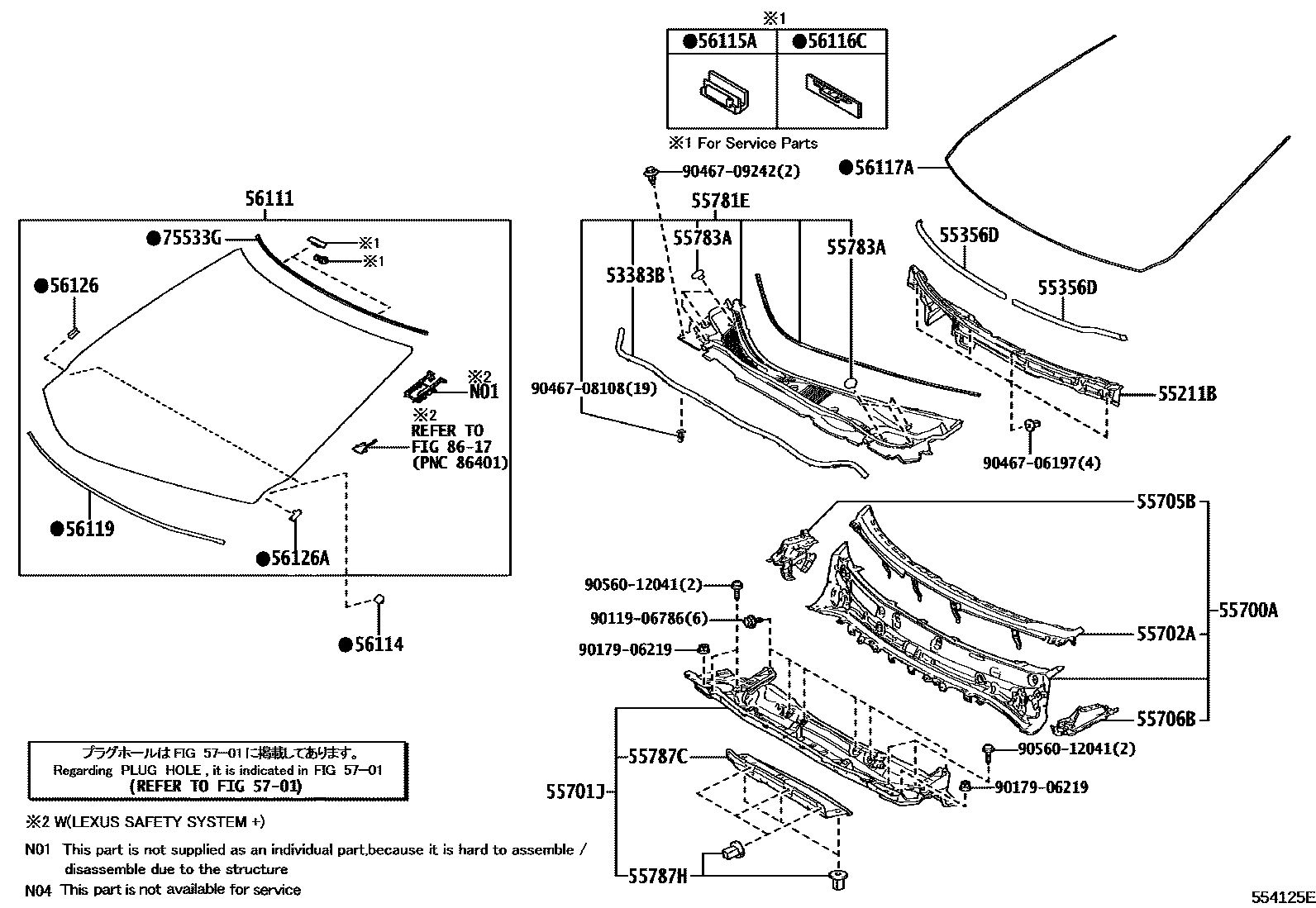

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-48070i201712-201908

55211BSILENCER, FRONT PANEL

main55211-48120i201712-201908

main55211-48130i201803-201908

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-48110×2i201712-201908

55700APANEL ASSY, COWL TOP

main55700-48130i201712-201908

main55700-48140i201803-201908

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-48160i201712-201908

main55701-48170i201908

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-48090i201908

main55702-48100i201803-201908

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-48040i201908

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-48040i201712-201908

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-48170supersedes 55708-48210i201908

WITHOUT(COLD AREA SPEC)

main55708-48210supersedes 55708-48170i201908

COLD AREA SPEC

main55708-48230supersedes 55708-48220i201803-201908

COLD AREA SPEC

55783APAD, COWL TOP SILENCER

main55783-48070×6i201908

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-48060i201908

55787HCLIP, COWL TOP PANEL INSULATOR

main90467-06158×6i201712-201908

main90467-06158-C0×6i201908

BLACK

56111GLASS, WINDSHIELD

main56101-48640supersedes 56101-48892i201908

HEAD UP DISPLAY-WITH

main56101-48650supersedes 56101-48892i201908

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&HEAD UP DISPLAY-WITH

main56101-48680supersedes 56101-48892i201908

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main56101-48872supersedes 56101-48892i201803-201908

HEAD-UP DISPLAY-WITH

main56101-48A22supersedes 56101-48892i201803-201908

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56101-48A42supersedes 56101-48892i201803-201908

COLD AREA SPEC

main56101-48A62supersedes 56101-48E00i201803-201908

HEAD-UP DISPLAY-WITH

main56101-48A80supersedes 56101-48E80i201712-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; ARMENIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; SERBIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH

main56101-48B02supersedes 56101-48E80i201712-201908

UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)

main56101-48B20supersedes 56101-48E80i201712-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC); ARMENIA SPEC&WITHOUT(COLD AREA SPEC); AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC); GEORGIA SPEC&WITHOUT(COLD AREA SPEC); SERBIA SPEC&WITHOUT(COLD AREA SPEC); UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main56101-48B30supersedes 56101-48E80i201712-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; ARMENIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; SERBIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH

main56101-48B42supersedes 56101-48E00i201803-201908

COLD AREA SPEC&HEAD-UP DISPLAY-WITH

main56101-48B50supersedes 56101-48E80i201712-201908

ADRIA(SLOVENIA) SPEC&HEAD-UP DISPLAY-WITH; ARMENIA SPEC&HEAD-UP DISPLAY-WITH; AZERBAIJAN SPEC&HEAD-UP DISPLAY-WITH; GEORGIA SPEC&HEAD-UP DISPLAY-WITH; SERBIA SPEC&HEAD-UP DISPLAY-WITH; UKRAINE SPEC&HEAD-UP DISPLAY-WITH

main56101-48B62supersedes 56101-48E80i201712-201908

UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56101-48B70supersedes 56101-48E80i201712-201908

ADRIA(SLOVENIA) SPEC; ARMENIA SPEC; AZERBAIJAN SPEC; GEORGIA SPEC; SERBIA SPEC; UKRAINE SPEC

main56101-48B80supersedes 56101-48E80i201712-201908

HEAD-UP DISPLAY-WITH

main56101-48C52supersedes 56101-48E80i201712-201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56101-48C62supersedes 56101-48E80i201712-201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD-UP DISPLAY-WITH

main56101-48D30supersedes 56101-48892i201908

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-48D80supersedes 56101-48E00i201908

ADRIA(SLOVENIA) SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREASPEC)&HEAD UP DISPLAY-WITH; AZERBAIJAN SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; GEORGIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; HEAD UP DISPLAY-WITH; SERBIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH

main56101-48D90supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; SERBIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH

main56101-48E00supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREASPEC); AZERBAIJAN SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC); GEORGIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC); SERBIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC); UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)

main56101-48E10supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC); AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC); GEORGIA SPEC&WITHOUT(COLD AREA SPEC); SERBIA SPEC&WITHOUT(COLD AREA SPEC); UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main56101-48E20supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT); AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT); GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT); SERBIA SPEC&WITHOUT(COLD AREA SPEC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT); UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT)

main56101-48E30supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH; AZERBAIJAN SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH; COLD AREA SPEC&HEAD UP DISPLAY-WITH; GEORGIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH; SERBIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH; UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH

main56101-48E40supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&HEAD UP DISPLAY-WITH; AZERBAIJAN SPEC&HEAD UP DISPLAY-WITH; GEORGIA SPEC&HEAD UP DISPLAY-WITH; SERBIA SPEC&HEAD UP DISPLAY-WITH; UKRAINE SPEC&HEAD UP DISPLAY-WITH

main56101-48E50supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; AZERBAIJAN SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; COLD AREA SPEC; GEORGIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; SERBIA SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main56101-48E60supersedes 56101-48E80i201908

ADRIA(SLOVENIA) SPEC; AZERBAIJAN SPEC; GEORGIA SPEC; SERBIA SPEC; UKRAINE SPEC

main56101-48E70supersedes 56101-48E80i201908

HEAD UP DISPLAY-WITH

main56101-48F10supersedes 56101-48E80i201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD UP DISPLAY-WITH

main56101-48F20supersedes 56101-48E80i201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

56114RETAINER, WINDSHIELD GLASS

main56114-48010×2i201712-201905

main56114-48020×2i201906-201908

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i201712-201908

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201908

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130i201712-201908

*D,L=3143; *D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; *D,L=3143,ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD-UP DISPLAY-WITH; *D,L=3143,ADRIA(SLOVENIA) SPEC; *D,L=3143,ADRIA(SLOVENIA) SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; *D,L=3143,ARMENIA SPEC; *D,L=3143,ARMENIA SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,ARMENIA SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,ARMENIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,ARMENIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; *D,L=3143,AZERBAIJAN SPEC; *D,L=3143,AZERBAIJAN SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; *D,L=3143,GEORGIA SPEC; *D,L=3143,GEORGIA SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,GEORGIA SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; *D,L=3143,HEAD-UP DISPLAY-WITH; *D,L=3143,SERBIA SPEC; *D,L=3143,SERBIA SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,SERBIA SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,SERBIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,SERBIA SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH; *D,L=3143,UKRAINE SPEC; *D,L=3143,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +; *D,L=3143,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&HEAD-UP DISPLAY-WITH; *D,L=3143,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC); *D,L=3143,UKRAINE SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,UKRAINE SPEC&HEAD-UP DISPLAY-WITH; *D,L=3143,UKRAINE SPEC&WITHOUT(COLD AREA SPEC); *D,L=3143,UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&HEAD-UP DISPLAY-WITH; *D,L=3143,UKRAINE SPEC&WITHOUT(COLD AREA SPEC)&WIND SHIELD WIPER CONTROL-WITH

56119SEAL, WINDSHIELD GLASS

main56119-48090i201712-201908

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-48010i201712-201908

56126ASPACER, WINDSHIELD GLASS, NO.1

main56127-48010i201712-201908

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-48130i201712-201908

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17
