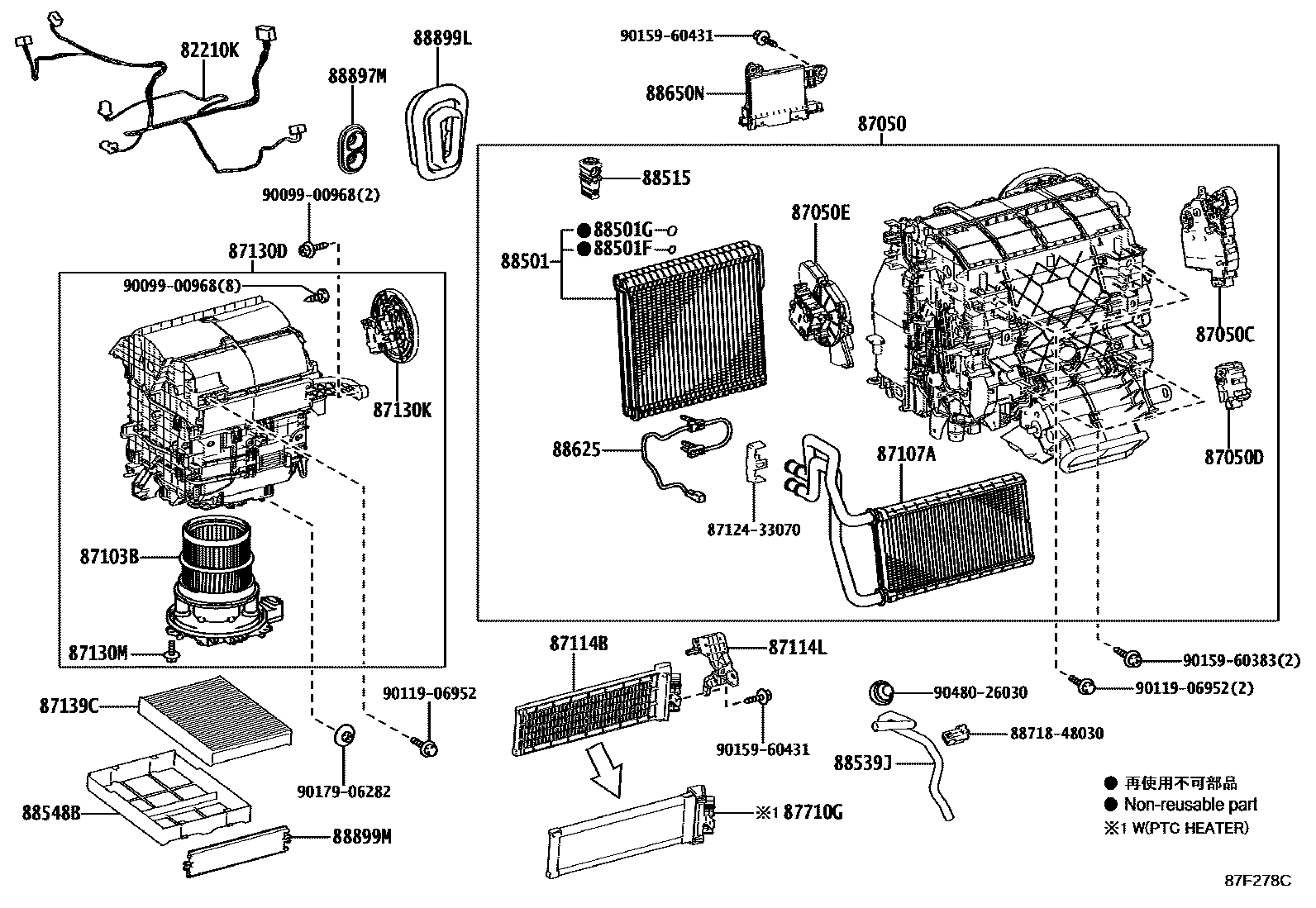

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-48060iAGL2#,GGL25,GYL25..LHD201509-201908

main82212-48070iGYL25..RHD201509-201908

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48580iGGL25201509-201908

main87050-48650iGYL25..LHD201510-201908

main87050-48660iGYL25..RHD201510-201908

main87050-48690iAGL2#201509-201908

main87050-48700iAGL2#..RHD201509-201908

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iAGL2#,GGL25,GYL25201509-201908

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-48200iAGL2#,GGL25,GYL25..LHD201509-201908

main87106-48210iAGL2#,GYL25..RHD201509-201908

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-28230iGYL25..RHD201509-201908

main87106-48240iAGL2#,GGL25,GYL25..LHD201509-201908

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42120iAGL2#,GGL25,GYL25..LHD202107

main87103-42130iGYL25..RHD202107

main87103-58070iAGL2#,GYL25..RHD201509-202106

main87103-58080iAGL2#,GGL25,GYL25..LHD201509-202106

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48120iAGL2#,GGL25,GYL25..LHD201509-201908

main87107-48130iAGL2#,GYL25..RHD201509-201908

87114BCOVER, HEATER

main87114-58050iGGL25201509-201908

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iGGL25201509-201908

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iGGL25201509-201908

ARMENIA SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iGGL25201509-201908

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iGGL25201509-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iGGL25201509-201908

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main87114-58050iAGL2#,GGL25,GYL25201908

87114LCOVER, HEATER, NO.2

main87114-48120iAGL2#,GYL25..RHD201509-201908

main87114-48140iAGL2#,GGL25,GYL25..LHD201509-201908

87130DBLOWER ASSY

main87130-48340iAGL2#,GGL25,GYL25..LHD201509-202106

main87130-48341iAGL2#,GGL25,GYL25..LHD202107

main87130-48350iAGL2#,GYL25..RHD201509-202106

main87130-48351iGYL25..RHD202107

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iAGL2#,GYL25..RHD201509-201908

main87106-58050iAGL2#,GGL25,GYL25..LHD201509-201908

87130MSCREW(FOR BLOWER)

main87193-87101iAGL2#,GGL25,GYL25202107

87139CFILTER, CLEAN AIR

main87139-48050iAGL2#,GGL25,GYL25201509-201908

main87139-48050iAGL2#,GGL25,GYL25201908

DEODORANT FILTER

87710GQUICK HEATER ASSY

main87710-58010iGGL25,GYL25201509-201908

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48430iGGL25201509-201908

main88501-48440iGYL25..LHD201510-201908

main88501-48460iGYL25..RHD201510-201908

main88501-48500iAGL2#..LHD201509-201908

main88501-48510iAGL2#..RHD201509-201908

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAGL2#,GGL25,GYL25201509-201908

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAGL2#,GGL25,GYL25201509-201908

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-48110iAGL2#,GYL25..LHD201908

BELARUS SPEC&SATELLITE RADIO-WITHOUT

main88515-48110iAGL2#,GYL25..LHD201908

KAZAKHSTAN SPEC&SATELLITE RADIO-WITHOUT

main88515-48110iAGL2#,GYL25..LHD201908

MOROCCO SPEC

main88515-48110iAGL2#,GYL25..LHD201509-201908

UKRAINE SPEC

main88515-48110iAGL2#,GYL25..LHD201509-201908

GEORGIA SPEC

main88515-48110iAGL2#,GYL25..LHD201509-201908

AZERBAIJAN SPEC

main88515-48110iAGL2#,GYL25..LHD201509-201908

ADRIA(SLOVENIA) SPEC

main88515-48110iAGL2#,GYL25..LHD201509-201908

SERBIA SPEC

main88515-48110iAGL2#,GYL25..LHD201908

MONGOLIA SPEC

main88515-48110iAGL2#,GYL25..LHD201908

RUSSIA,BELARUS,KAZAKHSTAN SPEC&SATELLITE RADIO-WITHOUT

main88515-48110iAGL2#,GYL25..LHD201908

ARMENIA SPEC&SATELLITE RADIO-WITHOUT

main88515-48110iGGL25201509-201908

RUSSIA,BELARUS,KAZAKHSTAN SPEC&COLD AREA SPEC

main88515-48110iGGL25201509-201908

ARMENIA SPEC

main88515-48140iAGL2#,GYL25201509-201908

88539JHOSE, DRAIN COOLER

main88539-48090iGGL25,GYL25..LHD201509-201908

main88539-48100iGYL25..RHD201510-201908

main88539-48110iAGL2#..LHD201509-201908

main88539-48120iAGL2#..RHD201509-201908

88548BCASE, AIR FILTER

main88899-48050iAGL2#,GGL25,GYL25201806-201908

main88899-48070iAGL2#,GGL25,GYL25201509-201805

88625THERMISTOR, COOLER, NO.1

main88620-28050iGGL25,GYL25201509-201908

main88620-28060iAGL2#201509-201908

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-48A10iAGL2#..RHD201509-201610

main88650-48A11iAGL2#..RHD201611-201712

main88650-48A30iAGL2#..RHD201509-201610

COLD AREA SPEC

main88650-48A30iGGL25201509-201610

COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-48A30iGGL25201509-201610

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR)

main88650-48A31iAGL2#..RHD201611-201712

COLD AREA SPEC

main88650-48A31iAGL2#..RHD201611-201712

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR)

main88650-48A31iAGL2#..RHD201611-201712

COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-48A50iGGL25201509-201610

ARMENIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

CROATIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

ROMANIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

BULGARIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

ISRAEL SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A50iAGL2#..LHD201509-201610

SEAT HEATER-WITH(FRONT ONLY)

main88650-48A50iAGL2#..LHD201509-201610

SEAT HEATER-WITH(FRONT & REAR)

main88650-48A51iAGL2#..RHD201611-201712

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

CROATIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

ROMANIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

BULGARIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

ARMENIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

ISRAEL SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48A51iAGL2#..LHD201611-201712

SEAT HEATER-WITH(FRONT ONLY)

main88650-48A51iAGL2#..LHD201611-201712

SEAT HEATER-WITH(FRONT & REAR)

main88650-48A90iGYL25201510-201610

main88650-48A91iGYL25..RHD201611-201712

main88650-48B31iGYL25..LHD201611-201712

SEAT HEATER-WITH(FRONT & REAR)

main88650-48B31iGYL25..RHD201611-201712

SEAT HEATER-WITH(FRONT ONLY)

main88650-48D40iAGL2#..RHD201712-201806

main88650-48D41iAGL2#..RHD201807-201908

main88650-48D60iAGL2#..RHD201712-201806

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR)

main88650-48D60iAGL2#..RHD201712-201806

COLD AREA SPEC

main88650-48D60iAGL2#..RHD201712-201806

COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-48D61iAGL2#..LHD201807-201908

COLD AREA SPEC&SEAT HEATER-WITH(FRONT & REAR)

main88650-48D61iGGL25201807-201908

COLD AREA SPEC

main88650-48D61iGGL25201807-201908

COLD AREA SPEC&SEAT HEATER-WITH(FRONT ONLY)

main88650-48D80iAGL2#..LHD201712-201806

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D80iGGL25201712-201806

SEAT HEATER-WITH(FRONT ONLY)

main88650-48D80iGGL25201712-201806

SEAT HEATER-WITH(FRONT & REAR)

main88650-48D80iGGL25201712-201806

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D80iGGL25201712-201806

ARMENIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D80iGGL25201712-201806

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D80iGGL25201712-201806

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D80iGGL25201712-201806

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..RHD201807-201908

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

ARMENIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48D81iAGL2#..LHD201807-201908

SEAT HEATER-WITH(FRONT ONLY)

main88650-48D81iAGL2#..LHD201807-201908

SEAT HEATER-WITH(FRONT & REAR)

main88650-48E20iGYL25..RHD201712-201806

main88650-48E21iGYL25..RHD201807-201908

main88650-48E60iGYL25..RHD201712-201806

SEAT HEATER-WITH(FRONT & REAR)

main88650-48E60iGYL25..RHD201712-201806

SEAT HEATER-WITH(FRONT ONLY)

main88650-48E61iGYL25..LHD201807-201908

SEAT HEATER-WITH(FRONT ONLY)

main88650-48E61iGYL25..LHD201807-201908

SEAT HEATER-WITH(FRONT & REAR)

main88650-48J40iGGL25201908-202107

COLD AREA SPEC

main88650-48J60iGGL25201908-202107

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48J60iAGL2#201908-202107

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48J60iAGL2#201908-202107

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48J60iAGL2#201908-202107

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48J60iAGL2#201908-202107

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48K40iGYL25201908-202107

main88650-48M70iAGL2#202107

COLD AREA SPEC

main88650-48M90iGGL25202107

AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)

main88650-48M90iGGL25202107

UKRAINE SPEC&WITHOUT(COLD AREA SPEC)

main88650-48M90iGGL25202107

SERBIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48M90iGGL25202107

ADRIA(SLOVENIA) SPEC&WITHOUT(COLD AREA SPEC)

main88650-48M90iGGL25202107

GEORGIA SPEC&WITHOUT(COLD AREA SPEC)

main88650-48N70iGYL25202107

88897MGROMMET (FOR HEATER PIPE)

main90480-01696iAGL2#,GGL25,GYL25201509-201908

88899LPARTS, COOLING UNIT

main88899-48030iAGL2#,GGL25,GYL25201509-201908

88899MPLATE, COVER(FOR AIR FILTER)

main88899-28620iAGL2#,GGL25,GYL25201509-201707

main88899-47120iAGL2#,GGL25,GYL25201708-201908

8712433070CLAMP, HEATER

main87124-33070

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

9009900968

main90099-00968

9011906952

main90119-06952

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

9048026030

main90480-26030

33 parts on this diagram · 7 diagrams in section
