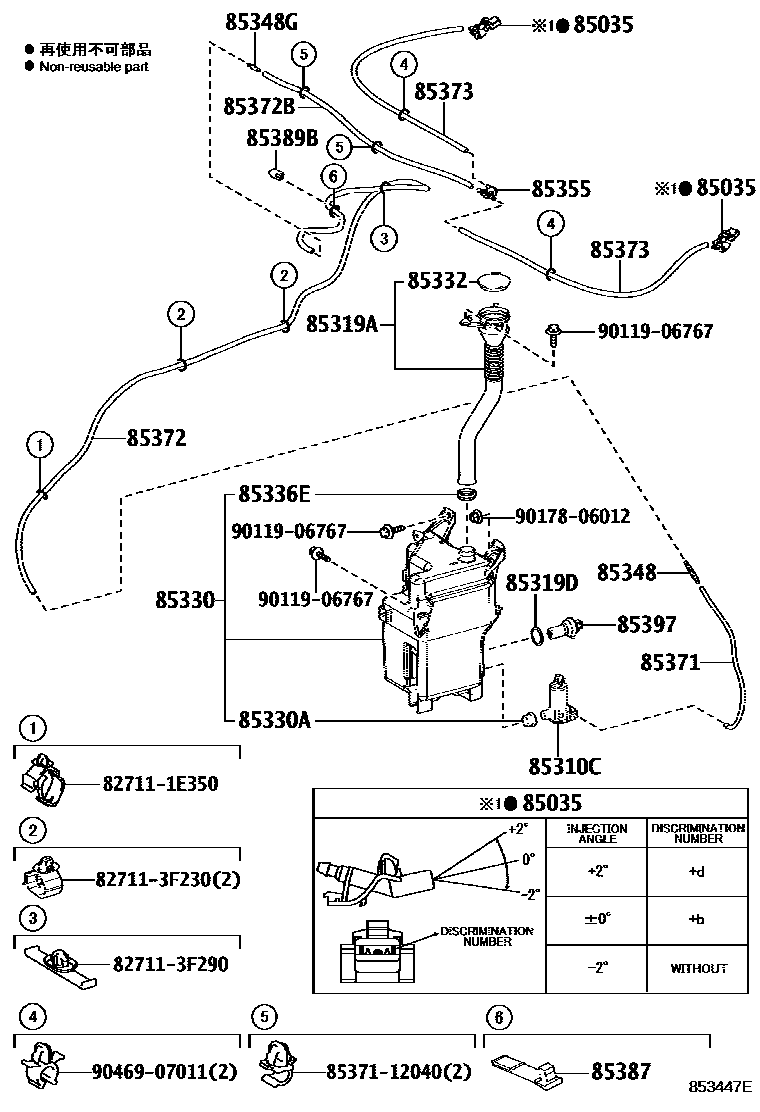

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ADRIA(SLOVENIA) SPEC,ANGLE 0; ANGLE 0; AZERBAIJAN SPEC,ANGLE 0; GEORGIA SPEC,ANGLE 0; MONGOLIA SPEC,ANGLE 0; SERBIA SPEC,ANGLE 0; UKRAINE SPEC,ANGLE 0
ADRIA(SLOVENIA) SPEC,ANGLE -2; ANGLE -2; ARMENIA SPEC,ANGLE -2; AZERBAIJAN SPEC,ANGLE -2; GEORGIA SPEC,ANGLE -2; SERBIA SPEC,ANGLE -2; UKRAINE SPEC,ANGLE -2
ADRIA(SLOVENIA) SPEC,ANGLE +2; ANGLE +2; ARMENIA SPEC,ANGLE +2; AZERBAIJAN SPEC,ANGLE +2; GEORGIA SPEC,ANGLE +2; SERBIA SPEC,ANGLE +2; UKRAINE SPEC,ANGLE +2
85310CMOTOR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
WITHOUT(COLD AREA SPEC)
WITHOUT(COLD AREA SPEC)
main85355-48070supersedes 85355-48080iAGL2#,GYL25; AGL2#,GYL25..STD; AGL2#..LHD;GYL25..STD; GGL25201509-201908
COLD AREA SPEC; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); HEADLAMP-LED TRIPLE BEAM TYPE; HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE; WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
COLD AREA SPEC; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); HEADLAMP-LED TRIPLE BEAM TYPE; HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE; WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
ADRIA(SLOVENIA) SPEC; AZERBAIJAN SPEC; GEORGIA SPEC; MONGOLIA SPEC; SERBIA SPEC; UKRAINE SPEC
ARMENIA SPEC; BELARUS SPEC; KAZAKHSTAN SPEC; RUSSIA,BELARUS,KAZAKHSTAN SPEC
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080iAGL2#,GGL25,GYL25; AGL2#,GYL25; AGL2#,GYL25..STD; AGL2#..LHD;GYL25..STD; GGL25201509-201908
L=1450(*H,L=320); L=1450(*H,L=320),COLD AREA SPEC; L=1450(*H,L=320),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE; L=1450(*H,L=320),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=1450(*H,L=320),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE; L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=1450(*H,L=320),WITHOUT(COLD AREA SPEC); L=1450(*H,L=320),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE; L=1450(*H,L=320),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=1450(*H,L=320),WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1920; L=1920,ADRIA(SLOVENIA) SPEC; L=1920,ARMENIA SPEC; L=1920,AZERBAIJAN SPEC; L=1920,GEORGIA SPEC; L=1920,SERBIA SPEC; L=1920,UKRAINE SPEC
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=540); L=1450(*H,L=540),ADRIA(SLOVENIA) SPEC; L=1450(*H,L=540),ARMENIA SPEC; L=1450(*H,L=540),AZERBAIJAN SPEC; L=1450(*H,L=540),GEORGIA SPEC; L=1450(*H,L=540),SERBIA SPEC; L=1450(*H,L=540),UKRAINE SPEC
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=330); L=1450(*H,L=330),ADRIA(SLOVENIA) SPEC; L=1450(*H,L=330),ARMENIA SPEC; L=1450(*H,L=330),AZERBAIJAN SPEC; L=1450(*H,L=330),GEORGIA SPEC; L=1450(*H,L=330),SERBIA SPEC; L=1450(*H,L=330),UKRAINE SPEC
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F230
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040
9011906767
main90119-06767
9017806012
main90178-06012
9046907011
main90469-07011
25 parts on this diagram · 6 diagrams in section
