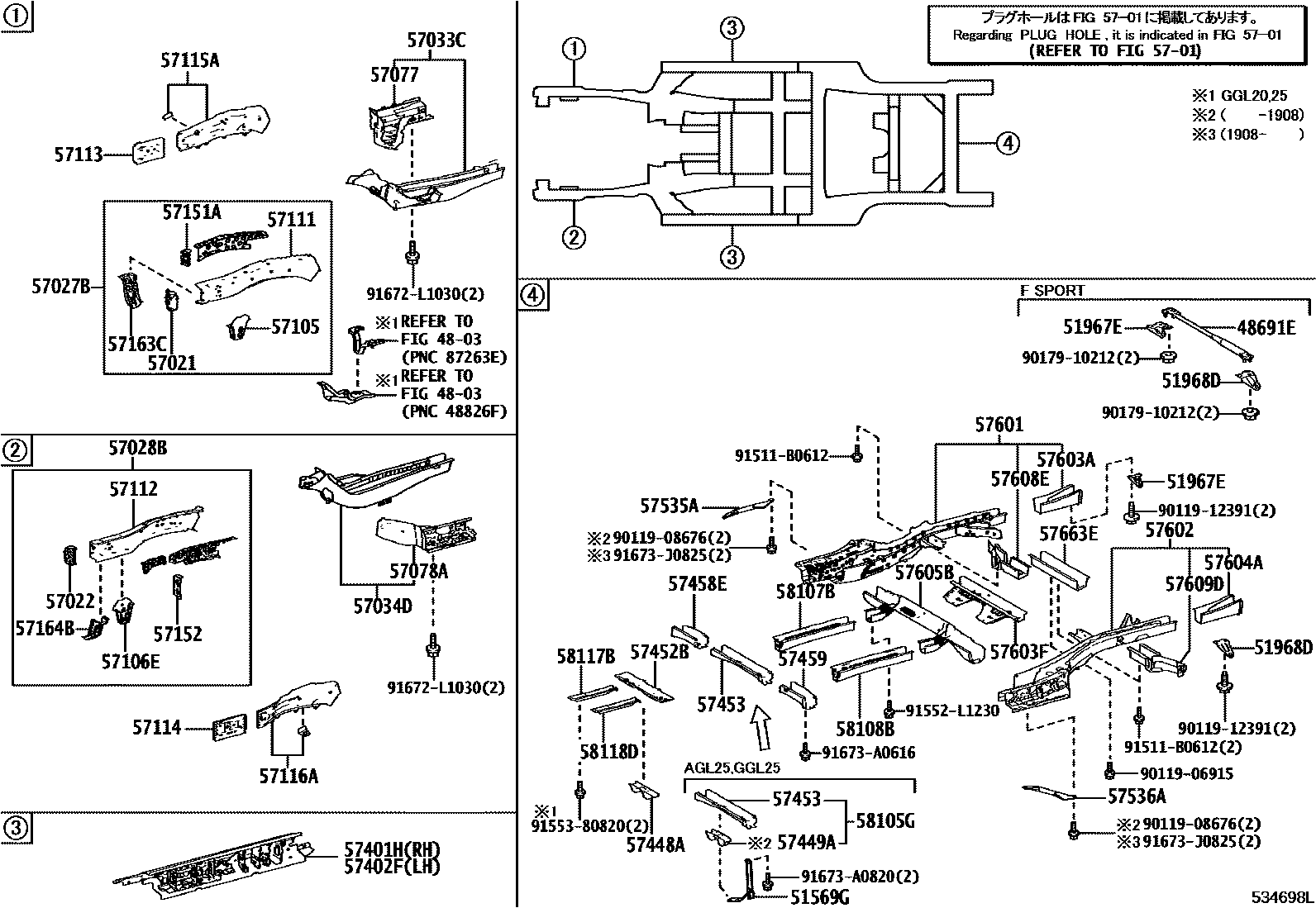

FLOOR SIDE MEMBER

0001 1 0002 1

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48691EDAMPER, SUSPENSION TOWER

main48691-48060iAGL2#,GGL25,GYL25..STD201908

"F-SPORT"*(F)

51569GGUARD, PROPELLER SHAFT

main51569-48020iAGL25,GGL25201509-201601

main51569-48021iAGL25,GGL25201602-201908

51967EHOOK, TRANSPORT, REAR RH

main51967-48050iAGL2#,GGL25,GYL25201509-201908

main51967-48070iAGL2#,GGL25,GYL25..STD201908

"F-SPORT"*(F)

51968DHOOK, TRANSPORT, REAR LH

main51968-48050iAGL2#,GGL25,GYL25201509-201908

main51968-48060iAGL2#,GGL25,GYL25..STD201908

"F-SPORT"*(F)

5701HOLE PLUG

→ Go to FIG 57-01

57021BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH

main57021-48013iAGL2#,GGL25,GYL25201509-201908

main57021-48040iAGL2#,GGL25,GYL25202001

57022BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH

main57022-48013iAGL2#,GGL25,GYL25201509-201908

main57022-48040iAGL2#,GGL25,GYL25202001-202209

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-48030iAGL2#,GGL25,GYL25201509-201908

main57027-48031iAGL2#,GGL25,GYL25202001

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-48060iAGL2#,GGL25,GYL25201509-201908

main57028-48061iAGL2#,GGL25,GYL25202001

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-48040iAGL2#,GGL25,GYL25201509-201711

main57033-48041iAGL2#,GGL25,GYL25201711-201908

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-48030iAGL2#,GGL25,GYL25201509-201711

main57034-48031iAGL2#,GGL25,GYL25201711-201908

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-48050iAGL2#,GGL25,GYL25201509-201908

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-48040iAGL2#,GGL25,GYL25201509-201908

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iAGL2#,GGL25,GYL25201509-201908

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-28120iAGL2#,GGL25,GYL25201509-201908

57111MEMBER, FRONT SIDE, RH

main57111-48030iAGL2#,GGL25,GYL25201509-201908

57112MEMBER, FRONT SIDE, LH

main57112-48030iAGL2#,GGL25,GYL25201509-201908

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-48021iAGL2#,GGL25,GYL25201509-201908

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-48021iAGL2#,GGL25,GYL25201509-201908

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-48901iAGL2#,GGL25,GYL25201509-201908

main57115-48906iAGL2#,GGL25,GYL25201908

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-48905iAGL2#,GGL25,GYL25201509-201908

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-48020iAGL2#,GGL25,GYL25201509-201908

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-48020iAGL2#,GGL25,GYL25201509-201908

57163CREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-48030iAGL2#,GGL25,GYL25201509-201908

57164BREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-48030iAGL2#,GGL25,GYL25201509-201908

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-48062iAGL2#,GGL25,GYL25201509-201908

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-48062iAGL2#,GGL25,GYL25201509-201908

57448ABRACKET, DIFF LOCK LEVER MOUNT, NO.1

main57448-48030iAGL25,GGL25201908

57449ABRACKET, DIFF LOCK LEVER MOUNT, NO.2

main57449-48012iAGL25,GGL25201509-201908

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-48032iAGL2#,GGL25,GYL25201509-201908

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-48011iAGL2#,GGL25201908

main57453-48020iGYL25201510-201908

57458EMEMBER, FRONT FLOOR CROSS, NO.1

main57458-48012iAGL2#,GGL25,GYL25201509-201908

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-48015iAGL2#,GGL25,GYL25201509-201908

57535ABRACE, FRONT FLOOR, RH

main57535-48060iAGL2#,GGL25201509-201908

main57535-48070iGYL25201510-201908

57536ABRACE, FRONT FLOOR, LH

main57536-48040iAGL2#,GGL25201509-201908

main57536-48050iGYL25201510-201908

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-48120iAGL2#,GGL25,GYL25201908

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-48120iAGL2#,GGL25,GYL25201509-201701

main57602-48121iAGL2#,GGL25,GYL25201702-201908

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57606-48060iAGL2#,GGL25,GYL25201509-201908

57603FGUSSET SUB-ASSY, REAR FLOOR CROSSEMEMBER

main57603-48091iAGL2#,GGL25201509-201702

main57603-48092iAGL2#,GGL25201702-201908

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57607-48021iAGL2#,GGL25,GYL25201509-201908

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-48100iGYL25201908

main57605-48110iAGL2#,GGL25201908

57608EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH

main57608-48020iAGL2#,GGL25,GYL25201509-201908

57609DREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH

main57609-48020iAGL2#,GGL25,GYL25201509-201701

main57609-48021iAGL2#,GGL25,GYL25201702-201908

57663EMEMBER, REAR FLOOR CROSS, CENTER

main57663-48040iAGL2#,GGL25,GYL25201509-201908

58105GRETAINER SUB-ASSY, FLOOR CLAMP

main58105-48051iAGL25,GGL25201509-201908

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-48030iAGL2#,GGL25,GYL25201509-201908

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-48040iAGL2#,GGL25,GYL25201509-201908

58117BREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-48030iAGL2#,GGL25,GYL25201509-201908

58118DREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-48030iAGL2#,GGL25,GYL25201509-201908

9011906915

main90119-06915

9011908676

main90119-08676

9011912391

main90119-12391

9017910212

main90179-10212

91511B0612

main91511-B0612

91552L1230

main91552-L1230

9155380820

main91553-80820

91672L1030

main91672-L1030

91673A0616

main91673-A0616

91673A0820

main91673-A0820

91673J0825

main91673-J0825

61 parts on this diagram · 2 diagrams in section
