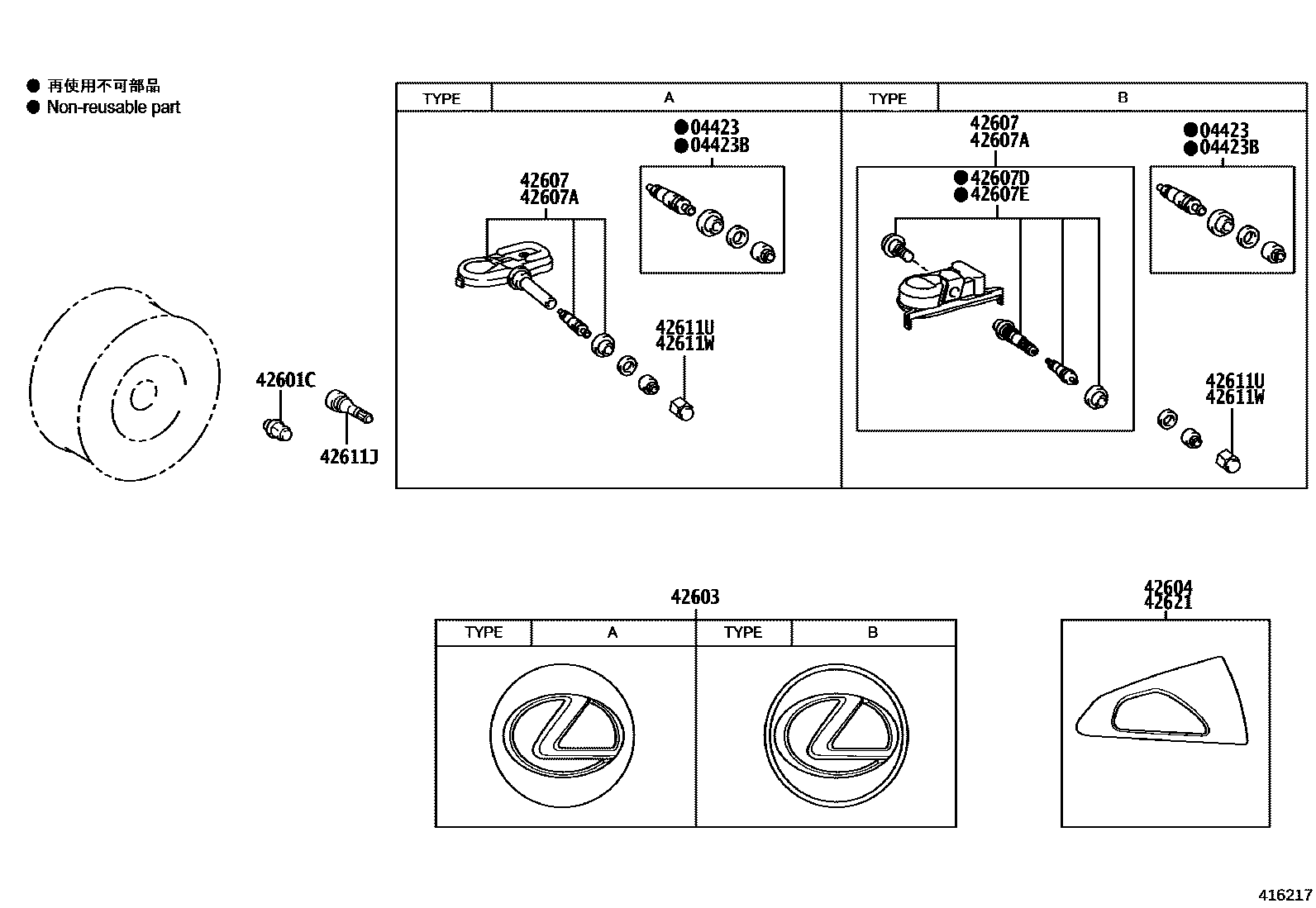

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060i201509-201908

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

42601WHEEL, DISC

main42611-48820i201509-201712

18X8J,#,TYPE A:REFER ILLUST.

main42611-48A80i201908

18X8J,#,TYPE J:REFER ILLUST.

main42611-48B00i201908

18X8J,#,TYPE H:REFER ILLUST.

main4261A-48190i201712-201908

18X8J,#,TYPE A:REFER ILLUST.

main4261A-48210i201712-201908

18X8J,#,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033i201509-201908

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50370i201509-201712

*ALU,TYPE A:REFER ILLUST.

main42603-50380i201712-201912

*ALU,TYPE B:REFER ILLUST.

main42603-50381i202001

*ALU,TYPE B:REFER ILLUST.

42604WHEEL CAP SET

main42604-48050

main42604-48060

main42604-48070

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48020i201509-202107

TYPE A:REFER ILLUST.

main42607-53040i202107

TYPE B:REFER ILLUST.

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044i202107

TYPE B:REFER ILLUST.

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201509-201908

TYPE A:REFER ILLUST.

main90942-05009i201509-201908

REUNION SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

RUSSIA,BELARUS,KAZAKHSTAN SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

RUSSIA,BELARUS,KAZAKHSTAN SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

UKRAINE SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

UKRAINE SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

GEORGIA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

GEORGIA SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

ARMENIA SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

ARMENIA SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

AZERBAIJAN SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

AZERBAIJAN SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

BELARUS SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

KAZAKHSTAN SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

ISRAEL SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

ISRAEL SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201509-201908

SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.

main90942-05009i201509-201908

SPARE TIRE-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201908

TURKEY SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201908

MOROCCO SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201908

BELARUS SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201908

KAZAKHSTAN SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

main90942-05009i201908

MONGOLIA SPEC&SPARE TIRE-S-TEMPORARY(T165/90D18),TYPE A:REFER ILLUST.

42611UCAP, TIRE VALVE

main90942-05042i201509-201908

42611WCAP, TIRE VALVE (FOR SPARE)

42621CAP, WHEEL

main42602-48030

main42602-48040

main42602-48050

main42602-48060

14 parts on this diagram · 3 diagrams in section
