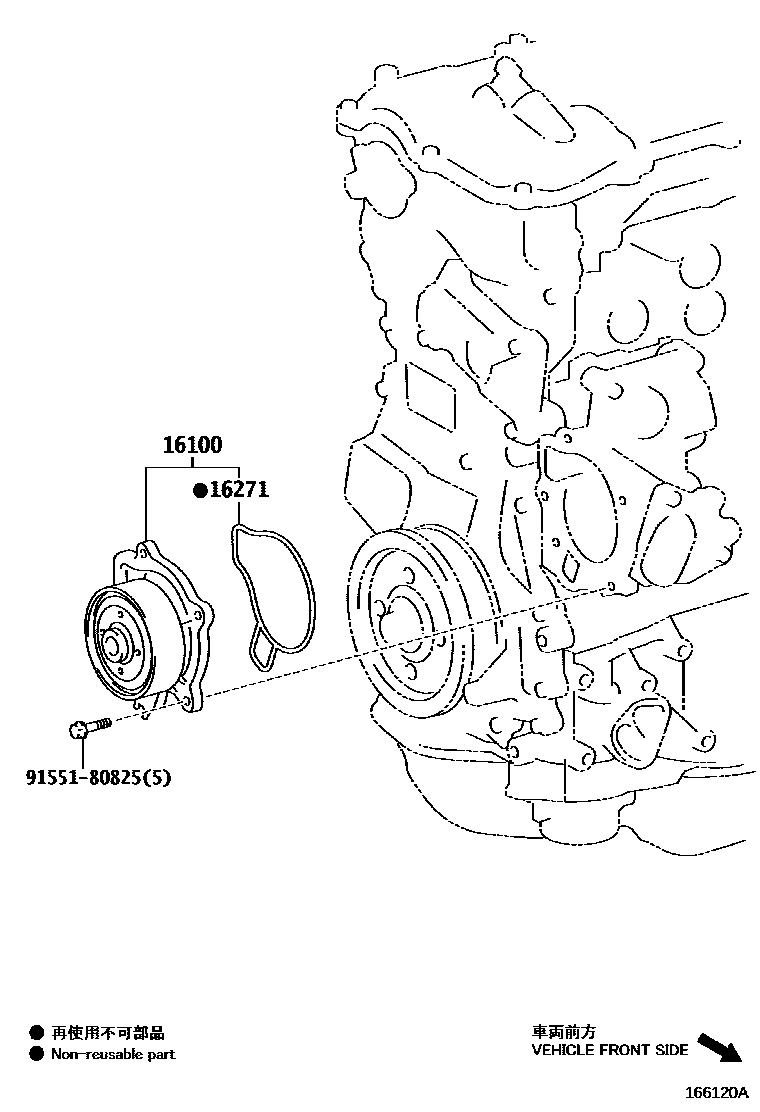

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-39595i8ARFTS..AGL2#201509-201908

main16100-39615i2GR#..GGL25,GYL25201509-201908

main16100-39616i2GR#..GGL25,GYL25202004

16271GASKET, WATER PUMP

main16271-31050i2GR#..GGL25,GYL25201908

main16271-36040i8ARFTS..AGL2#201908

9155180825

main91551-80825

3 parts on this diagram · 2 diagrams in section
