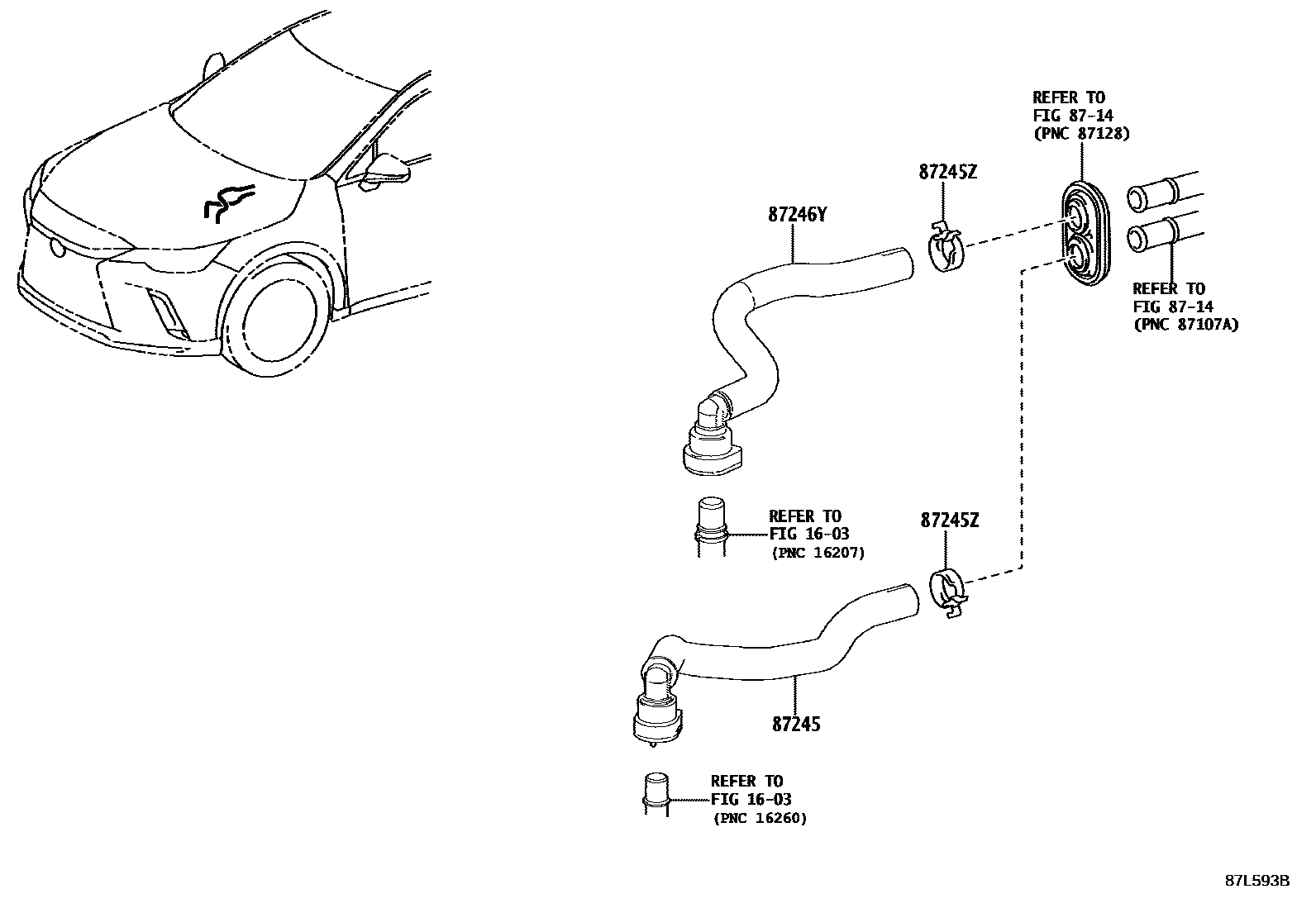

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1HEATER ACCESSORY ASSY & BRACK0005 1HEATER ACCESSORY ASSY & BRACK0006 1 0007 1 0008 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-42290iAALH10,15202211

main87209-48390iTALH17202211

main87209-48440iSALA15,TALA1#202211

main87245-42690iAALH16202211

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501×2iAALH1#,SALA15,TALA1#; TALH17202211

87246HOSE, HEATER WATER, OUTLET

main87209-48400iAALH16..LHD202211

main87245-48J90iTALH17202211

87246YHOSE, HEATER WATER

main87209-42300iAALH10,15202211

main87209-48380iAALH16202211

main87245-48G80iTALH17202211

main87245-78110iSALA15,TALA1#202211

6 parts on this diagram · 8 diagrams in section
