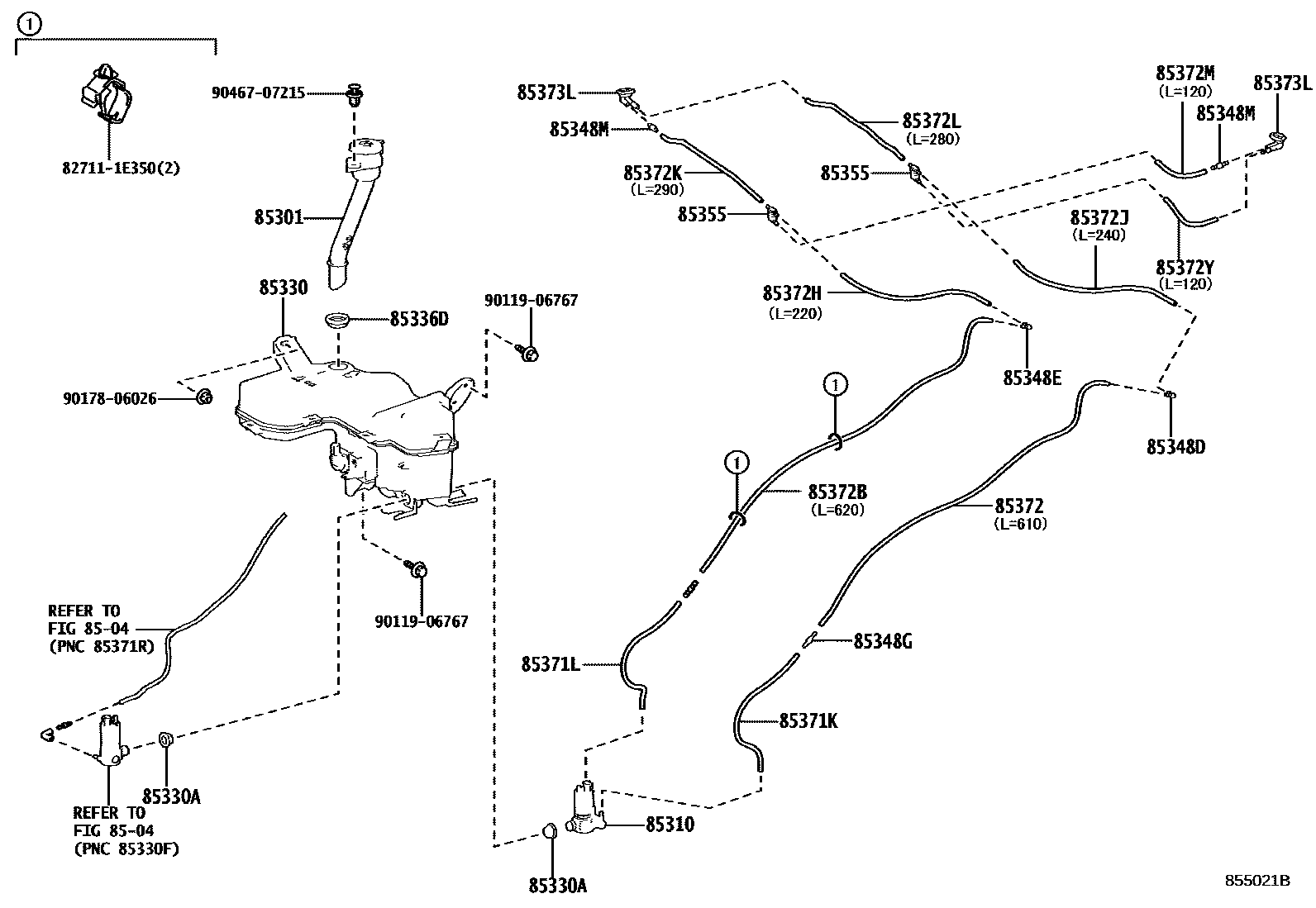

WINDSHIELD WASHER
8504REAR WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85355-48090supersedes 85315-48330iAALH10,15,TALA15..RHD..GEN; AALH15,16..LHD..EUR; AALH15..RHD..GEN; TALA15..EUR; TALA15..GCC,GEN;AALH1#,TALA10..EUR,GCC,GEN; TALH17;TALA15..EUR;AALH1#,SALA15..CHI202211
AUSTRALIA SPEC; AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); COLD AREA SPEC; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); NEW ZEALAND SPEC; NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
WITHOUT(COLD AREA SPEC)
85330ABUSH, WINDSHIELD WASHER JAR
main90069-50016×4iAALH10,15,TALA15..RHD..GEN; AALH15,16..LHD..EUR; AALH15..RHD..GEN; TALA15..EUR; TALA15..GCC,GEN;AALH1#,TALA10..EUR,GCC,GEN; TALH17;TALA15..EUR;AALH1#,SALA15..CHI202211
AUSTRALIA SPEC; AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); COLD AREA SPEC; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); NEW ZEALAND SPEC; NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); WITHOUT(COLD AREA SPEC); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85336DPACKING, WINDSHIELD WASHER JAR
main85336-48330×2iAALH10,15,TALA15..RHD..GEN; AALH15,16..LHD..EUR; AALH15..RHD..GEN; TALA15..EUR; TALA15..GCC,GEN;AALH1#,TALA10..EUR,GCC,GEN; TALH17;TALA15..EUR;AALH1#,SALA15..CHI202211
AUSTRALIA SPEC; AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); COLD AREA SPEC; COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); NEW ZEALAND SPEC; NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); WITHOUT(COLD AREA SPEC); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-46210iAALH1#,SALA15,TALA1#,TALH17; AALH10,15,TALA15..RHD..GEN; AALH15,16..LHD..EUR; AALH15..RHD..GEN; TALA15..EUR; TALA15..GCC,GEN;AALH1#,TALA10..EUR,GCC,GEN202211
L=320; L=320,AUSTRALIA SPEC; L=320,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=320,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=320,COLD AREA SPEC; L=320,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=320,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=320,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=320,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=320,NEW ZEALAND SPEC; L=320,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=320,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=320,WITHOUT(COLD AREA SPEC); L=320,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=320,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85371LHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-46258iAALH1#,SALA15,TALA1#,TALH17; AALH10,15,TALA15..RHD..GEN; AALH15,16..LHD..EUR; AALH15..RHD..GEN; TALA15..EUR; TALA15..GCC,GEN;AALH1#,TALA10..EUR,GCC,GEN202211
L=290; L=290,AUSTRALIA SPEC; L=290,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=290,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=290,COLD AREA SPEC; L=290,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=290,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=290,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=290,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=290,NEW ZEALAND SPEC; L=290,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=290,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS); L=290,WITHOUT(COLD AREA SPEC); L=290,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB); L=290,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=340
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=340
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=340
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=340
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=340
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=340
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=340
85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8
L=340
85373LGROMMET, WASHER
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
9011906767
main90119-06767
9017806026
main90178-06026
9046707215
main90467-07215
26 parts on this diagram · 4 diagrams in section
