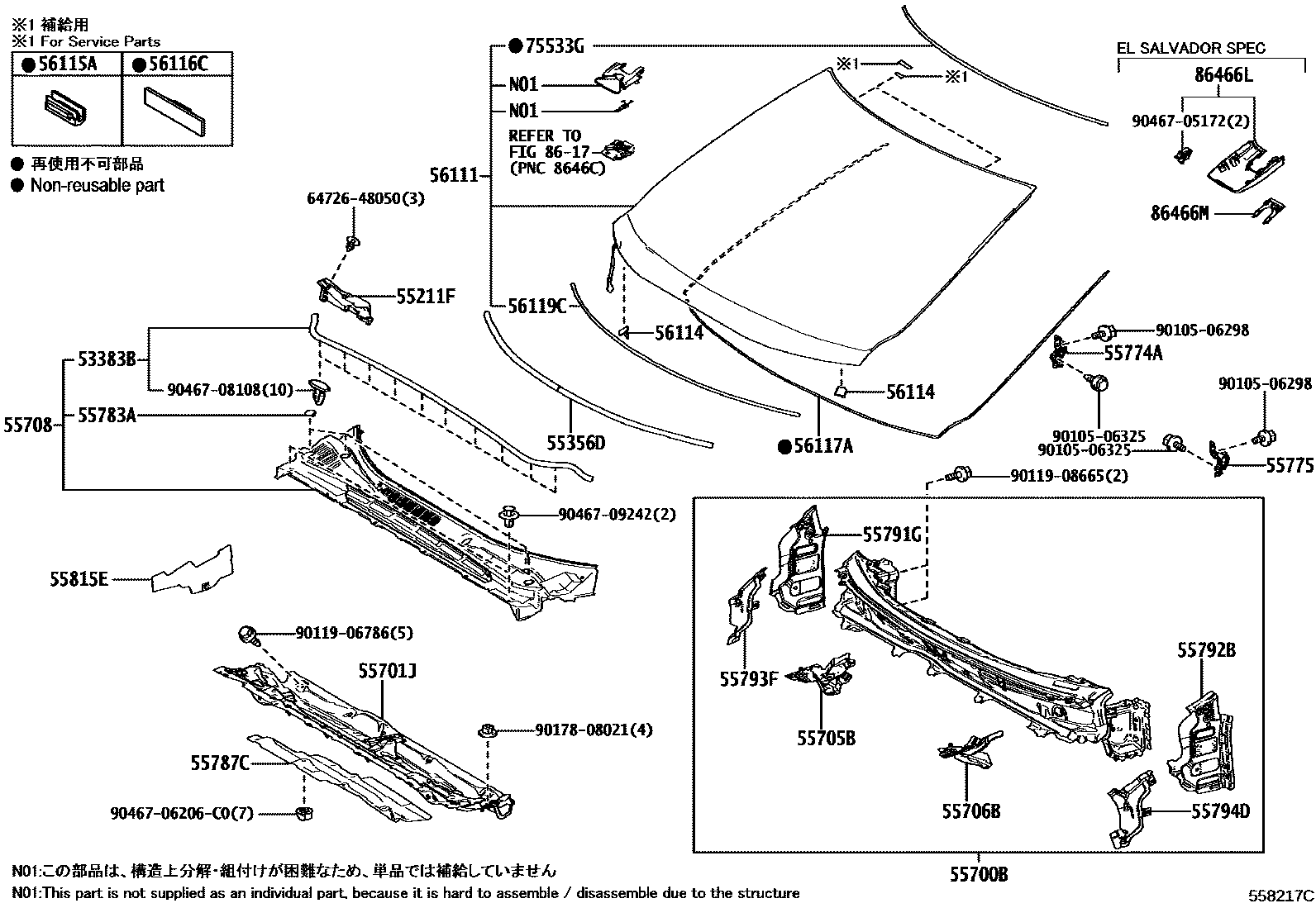

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211FCOVER, DASH PANEL INSULATOR
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
HEAD UP DISPLAY-WITH
main56101-48P20supersedes 56101-48N60iTALA15..EUR; TALA15..LHD..(GCC,GEN);AALH1#,TALA10..LHD..(EUR,GCC,GEN); TALH17..LHD..(EUR,GCC,GEN)202211
AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; HEAD UP DISPLAY-WITH
main56101-48P30supersedes 56101-48P10iAALH1#,SALA15..CHI; AALH15,16..LHD..EUR; TALA15..EUR; TALH17..CHI; TALH17..LHD..EUR202211
AZERBAIJAN SPEC&HEAD UP DISPLAY-WITH; COLD AREA SPEC; COLD AREA SPEC&HEAD UP DISPLAY-WITH; GEORGIA SPEC&HEAD UP DISPLAY-WITH; HEAD UP DISPLAY-WITH
EL SALVADOR SPEC&HEAD UP DISPLAY-WITH
main56101-48N60supersedes 56101-48P50iTALA15..EUR; TALA15..LHD..(GCC,GEN);AALH1#,TALA10..LHD..(EUR,GCC,GEN)202211
AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC); GEORGIA SPEC&WITHOUT(COLD AREA SPEC)
AZERBAIJAN SPEC; COLD AREA SPEC; GEORGIA SPEC
ARMENIA SPEC&COLD AREA SPEC; KAZAKHSTAN SPEC&COLD AREA SPEC; KYRGYZSTAN SPEC&COLD AREA SPEC; MOLDOVA SPEC&COLD AREA SPEC; UKRAINE SPEC&COLD AREA SPEC
ARMENIA SPEC&COLD AREA SPEC; HEAD UP DISPLAY-WITH; KAZAKHSTAN SPEC&COLD AREA SPEC; KYRGYZSTAN SPEC&COLD AREA SPEC; MOLDOVA SPEC&COLD AREA SPEC; MOLDOVA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH; MONGOLIA SPEC&COLD AREA SPEC; MONGOLIA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH; UKRAINE SPEC&COLD AREA SPEC; UKRAINE SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH
ETC-WITH(FOR CHINA)
ETC-WITH(FOR CHINA); HEAD UP DISPLAY-WITH&ETC-WITH(FOR CHINA)
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
main56117-64010iAALH1#,SALA15,TALA1#; AALH1#,SALA15,TALA1#,TALH17; AALH15,16,TALH17..LHD..EUR; AALH15,16..LHD..EUR; AALH15,TALH17..LHD..EUR; AALH15..LHD..EUR; TALA15..EUR; TALH17..LHD..EUR202211
L=3132; L=3132,ARMENIA SPEC&COLD AREA SPEC; L=3132,AZERBAIJAN SPEC; L=3132,AZERBAIJAN SPEC&HEAD UP DISPLAY-WITH; L=3132,AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC); L=3132,AZERBAIJAN SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; L=3132,COLD AREA SPEC; L=3132,COLD AREA SPEC&HEAD UP DISPLAY-WITH; L=3132,GEORGIA SPEC; L=3132,GEORGIA SPEC&HEAD UP DISPLAY-WITH; L=3132,GEORGIA SPEC&WITHOUT(COLD AREA SPEC); L=3132,GEORGIA SPEC&WITHOUT(COLD AREA SPEC)&HEAD UP DISPLAY-WITH; L=3132,HEAD UP DISPLAY-WITH; L=3132,KAZAKHSTAN SPEC&COLD AREA SPEC; L=3132,KYRGYZSTAN SPEC&COLD AREA SPEC; L=3132,MOLDOVA SPEC&COLD AREA SPEC; L=3132,MOLDOVA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH; L=3132,MONGOLIA SPEC&COLD AREA SPEC; L=3132,MONGOLIA SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH; L=3132,UKRAINE SPEC&COLD AREA SPEC; L=3132,UKRAINE SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH
56119CSEAL, WINDSHIELD GLASS
75533GMOULDING, WINDSHIELD, OUTSIDE
8617PRE-COLLISION SYSTEM
86466LCOVER, FORWARD RECOGNITION, NO.1
EL SALVADOR SPEC
86466MCOVER, FORWARD RECOGNITION, NO.2
EL SALVADOR SPEC
6472648050PAD, HOUSING SPARE WHEEL SILENCER, FRONT
main64726-48050
9010506298
main90105-06298
9010506325
main90105-06325
9011906786
main90119-06786
9011908665
main90119-08665
9017808021
main90178-08021
9046705172
main90467-05172
9046706206C0
main90467-06206C0
9046708108
main90467-08108
9046709242
main90467-09242
37 parts on this diagram · 4 diagrams in section
