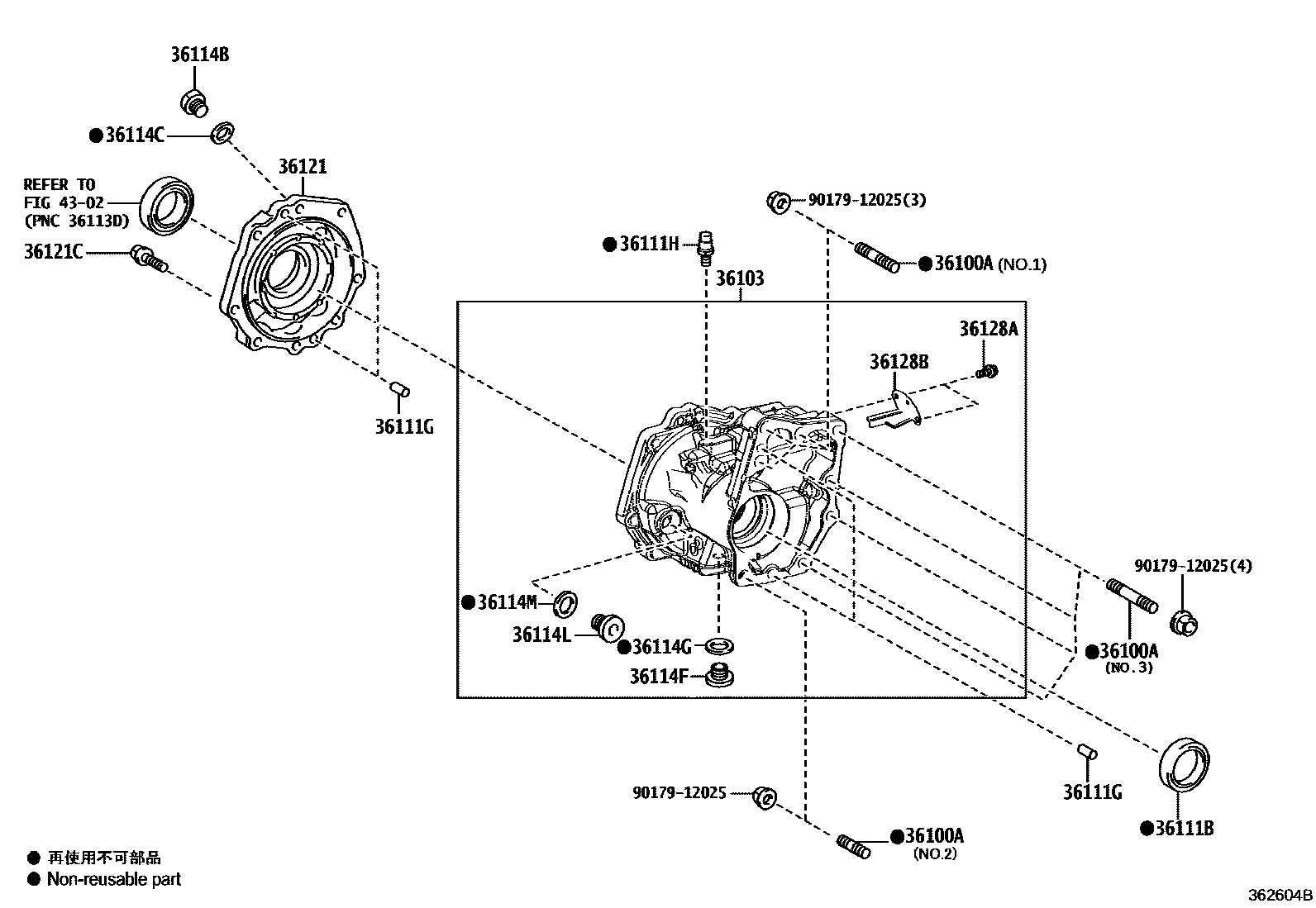

TRANSFER CASE & EXTENSION HOUSING

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

main90116-12041×4iSALA15,TALA15202211

S=30 & 22,L=64

main90116-12051×3iSALA15,TALA15202211

S=22 & 22,L=73

main90116-12052iSALA15,TALA15202211

S=22 & 22,L=53

36103CASE SUB-ASSY, TRANSFER

main36103-52030iSALA15,TALA15202211

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-55002iSALA15,TALA15202211

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017×4iSALA15,TALA15202211

L=20,OD=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03133iSALA15,TALA15202211

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iSALA15,TALA15202211

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main12157-10010iSALA15,TALA15202211

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18051iSALA15,TALA15202211

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main12157-10010iSALA15,TALA15202211

36114LPLUG, FILLER(FOR TRANSFER)

main90341-18023iSALA15,TALA15202211

36114MGASKET (FOR TRANSFER FILLER PLUG)

main12157-10010iSALA15,TALA15202211

36121COVER, TRANSFER CASE, NO.1

main36121-52020iSALA15,TALA15202211

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

main91552-81030×8iSALA15,TALA15202211

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

main91621-60614×2iSALA15,TALA15202211

36128BDEFLECTOR, BREATHER OIL

main36128-42010iSALA15,TALA15202211

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912025

main90179-12025

17 parts on this diagram · 1 diagram in section
