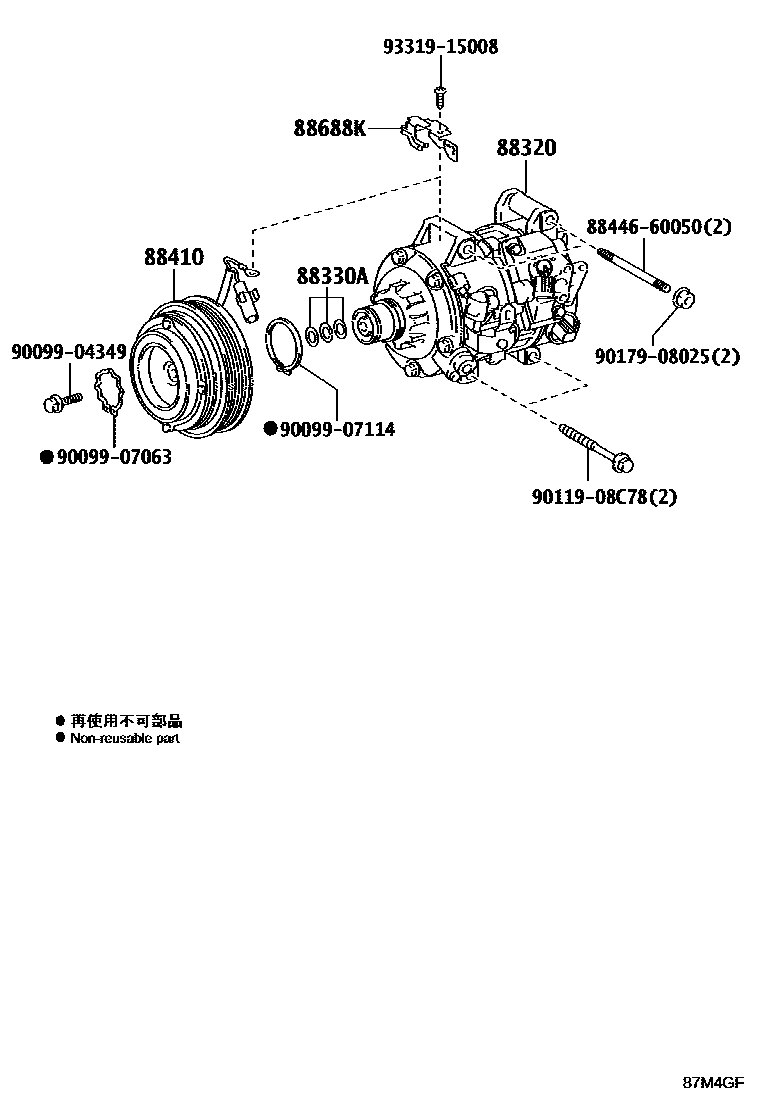

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88320COMPRESSOR ASSY, COOLER

main88320-48170iGGL15..EUR200812-201009

main88320-48180iGGL15..GCC200812-201009

main88320-48220iGGL15..EUR201010-201209

main88320-48230iGGL15..GCC201010-201209

main88320-48260iGGL15..EUR201209-201210

main88320-48270iGGL15..GCC201209-201210

main88320-48280iGGL15..EUR201210

main88320-48290iGGL15..GCC201210

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGGL15200812-201203

88410CLUTCH ASSY, MAGNET

main88410-33180iGGL15201209-201403

main88410-33190iGGL15201403

main88410-48100iGGL15200812-201209

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGGL15201209

main88688-48250iGGL15200812-201209

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9331915008

main93319-15008

11 parts on this diagram · 4 diagrams in section
