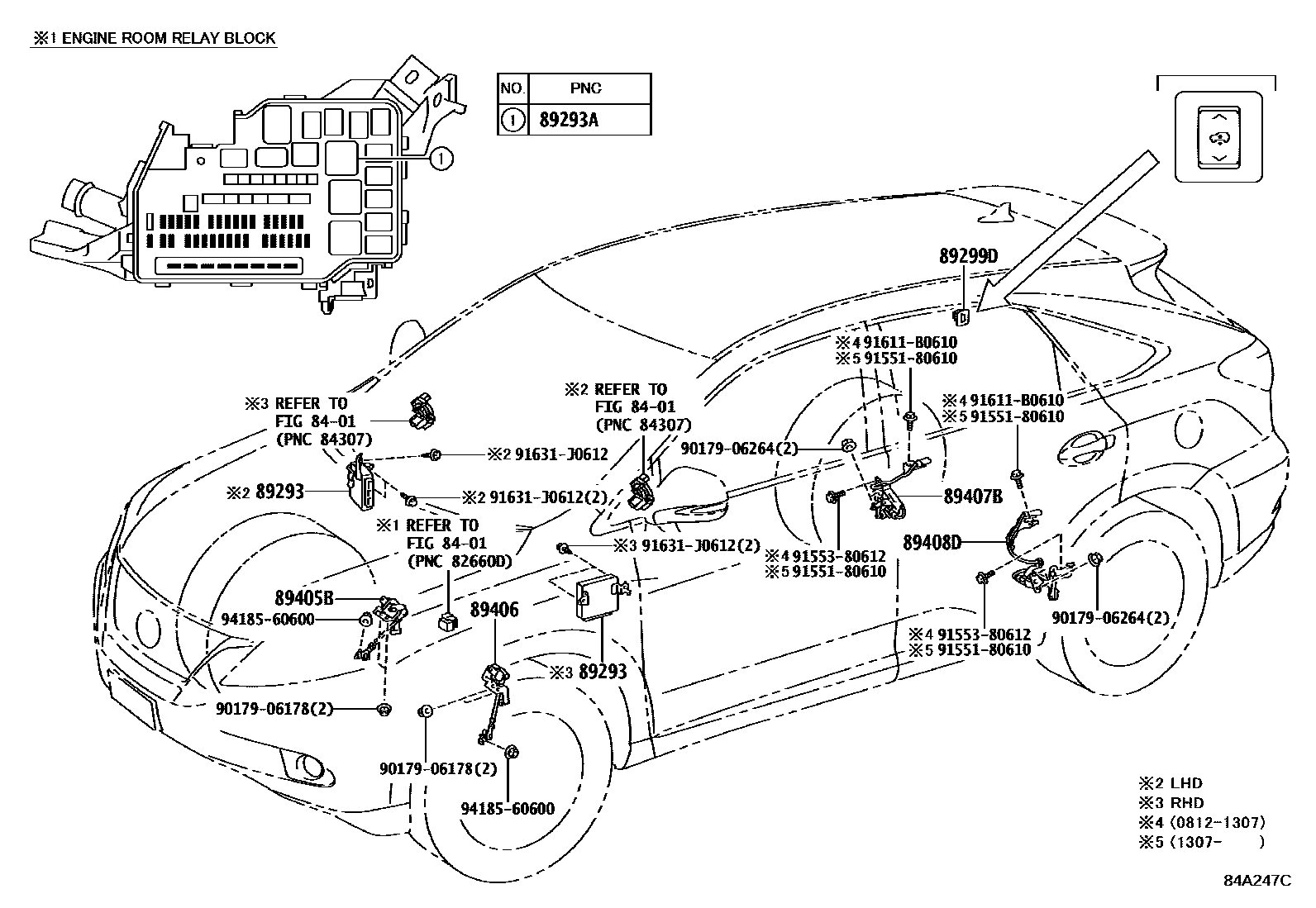

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89293COMPUTER, SUSPENSION CONTROL

main89293-48030iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

main89293-48040iGGL15..LHD..EUR200812-201203

SUSPENSION-AIR SUSPENTION

main89293-48041iGGL15..LHD..EUR201203

SUSPENSION-AIR SUSPENTION

main89293-48050iGYL15..RHD200903-201203

SUSPENSION-AIR SUSPENTION

main89293-48051iGYL15..RHD201203

SUSPENSION-AIR SUSPENTION

main89293-48060iGYL15..LHD200903-201203

SUSPENSION-AIR SUSPENTION

main89293-48061iGYL15..LHD..EUR201203

SUSPENSION-AIR SUSPENTION

89293ARELAY, SUSPENSION CONTROL

main90987-02025iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

89299SWITCH, SUSPENSION CONTROL

main89276-48020iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

89299DSWITCH, SUSPENSION CONTROL, NO.2

main89276-48030-A0iGYL15;GGL15..LHD..EUR200812-201203

SUSPENSION-AIR SUSPENTION,IVORY,TRIM0#

main89276-48030-B0iGYL15200903-201203

SUSPENSION-AIR SUSPENTION,LT.GRAY,TRIM10,12

main89276-48030-C0iGYL15..EUR;GGL15..LHD..EUR201203

SUSPENSION-AIR SUSPENTION,BLACK,TRIM1#,2#,3#,4#

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-48010iGYL15..LHD..EUR; GYL15..RHD;GGL15..LHD..EUR201203

SUSPENSION-AIR SUSPENTION; SUSPENSION-AIR SUSPENTION&HEADLAMP-LED & AFS

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-48010iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-48060iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-48030iGGL15..RHD200812-201008

SUSPENSION-AIR SUSPENTION

9017906178

main90179-06178

9017906264

main90179-06264

9155180610

main91551-80610

9155380612

main91553-80612

91611B0610

main91611-B0610

91631J0612

main91631-J0612

9418560600

main94185-60600

16 parts on this diagram · 2 diagrams in section
