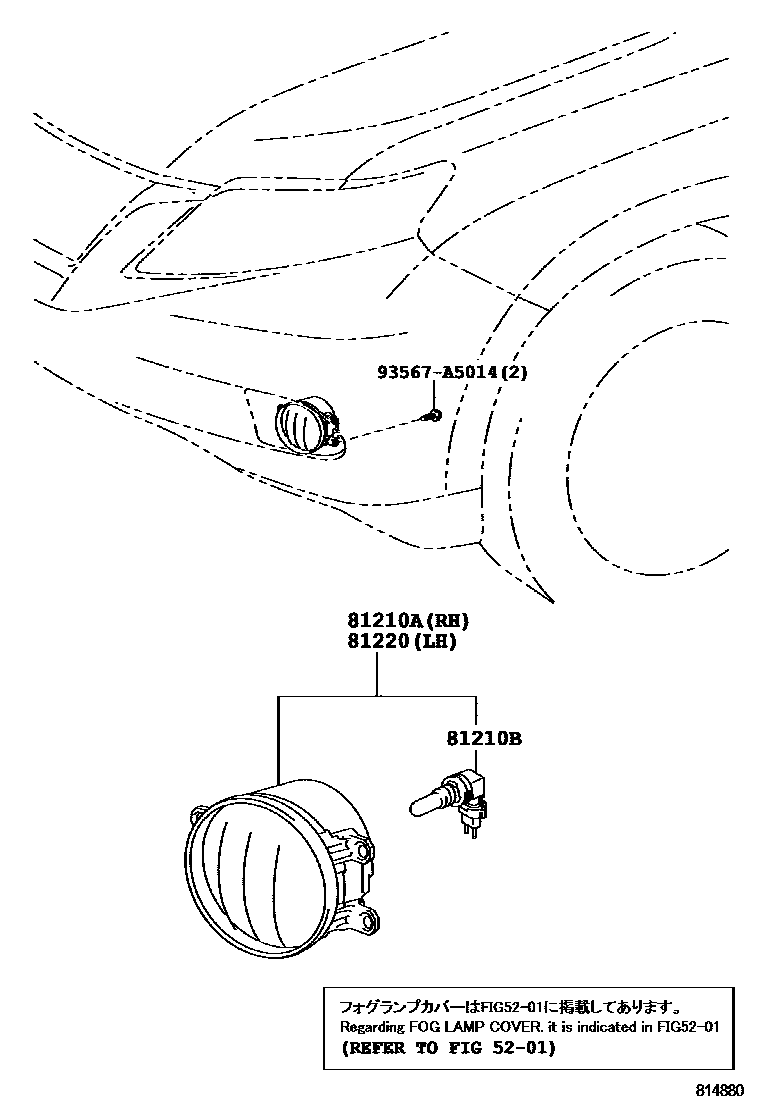

FOG LAMP

81210ALAMP ASSY, FOG, RH

main81210-0D041i200812-201004

main81210-0D042i201005-201007

main81210-0W080i201008-201101

main81210-12230i201308-201408

main81210-47010i201409-201509

main81210-48050i201403-201509

BEIJING SPEC&FRONT FOG LAMP-WITH(LED); CHINA(EXCEPT BEIJING) SPEC&FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)

81210BBULB, FOG LAMP

main90981-13075i200812-201203

12V 55W,HALOGEN,PHILIPS

main90981-13081i200812-201203

12V 55W,HALOGEN,OSRAM

main90981-13090×2i201308-201509

12V 19W

81220LAMP ASSY, FOG, LH

main81220-0D041i200812-201004

main81220-0D042i201101-201203

main81220-0W070i201008-201101

main81220-12230i201308-201408

main81220-47010i201409-201509

main81220-48050i201403-201509

BEIJING SPEC&FRONT FOG LAMP-WITH(LED); CHINA(EXCEPT BEIJING) SPEC&FRONT FOG LAMP-WITH(LED); FRONT FOG LAMP-WITH(LED)

93567A5014

4 parts on this diagram · 5 diagrams in section
