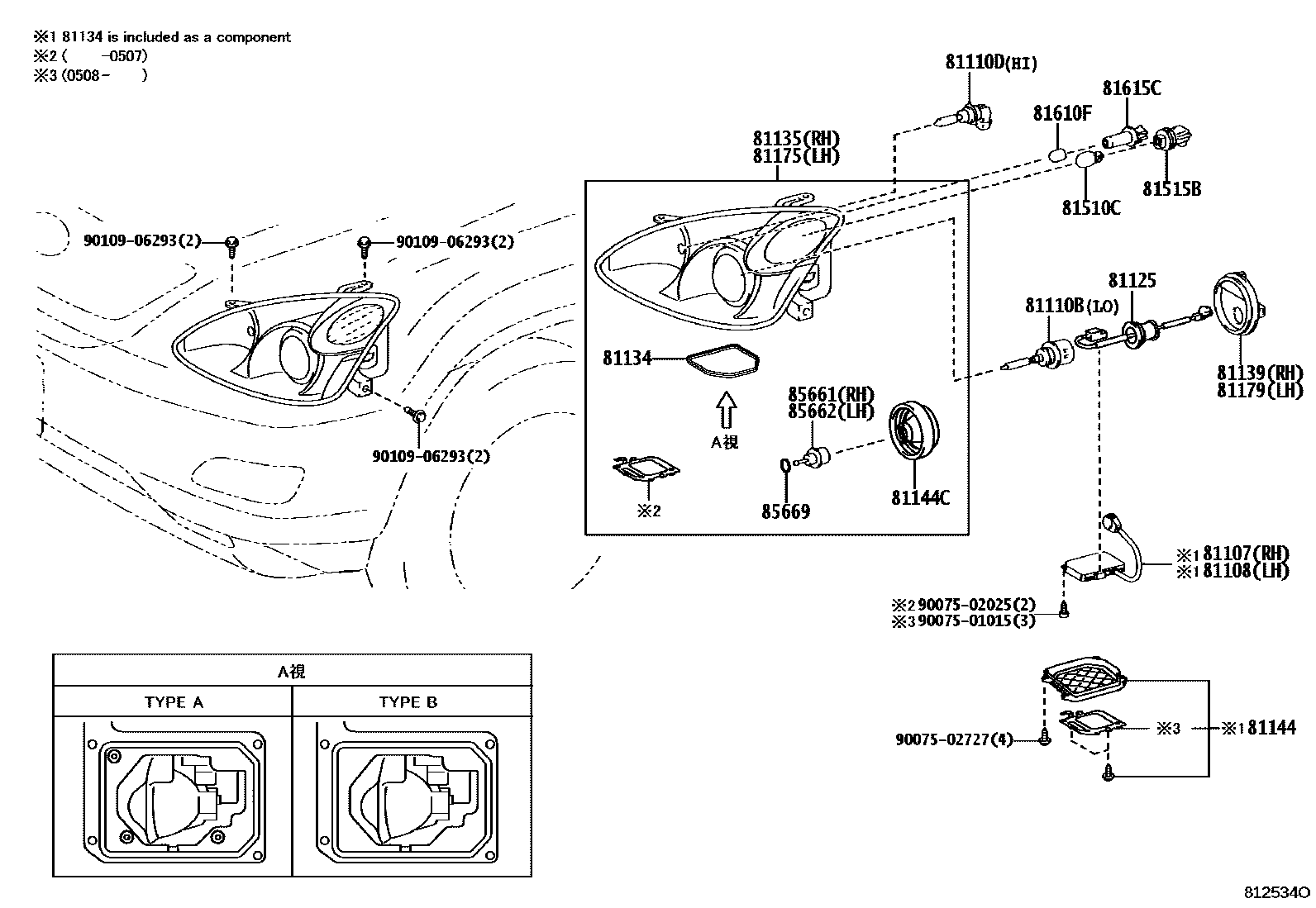

HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
81110BBULB(FOR HEADLAMP, NO.1)
85V 35W
81110DBULB(FOR HEADLAMP, NO.2)
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN
81125CORD, HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
81139COVER, HEADLAMP SOCKET
81144COVER, HEADLAMP, NO.1
RH
LH
81144CCOVER, HEADLAMP SOCKET
81175UNIT ASSY, HEADLAMP, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
81179COVER, HEADLAMP SOCKET
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
85662MOTOR, HEADLAMP LEVELING, LH
LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
CHINA SPEC&HEADLAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
LUXURY PACKAGE&SUSPENSION-AIR SUSPENSION&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
LUXURY PACKAGE&HEAD LAMP-DISCHARGE&W(ADAPTIVE FR-LIGHTING SYSTEM)
9007501015
main90075-01015
9007502025
main90075-02025
9007502727
main90075-02727
9010906293
main90109-06293
23 parts on this diagram · 5 diagrams in section
