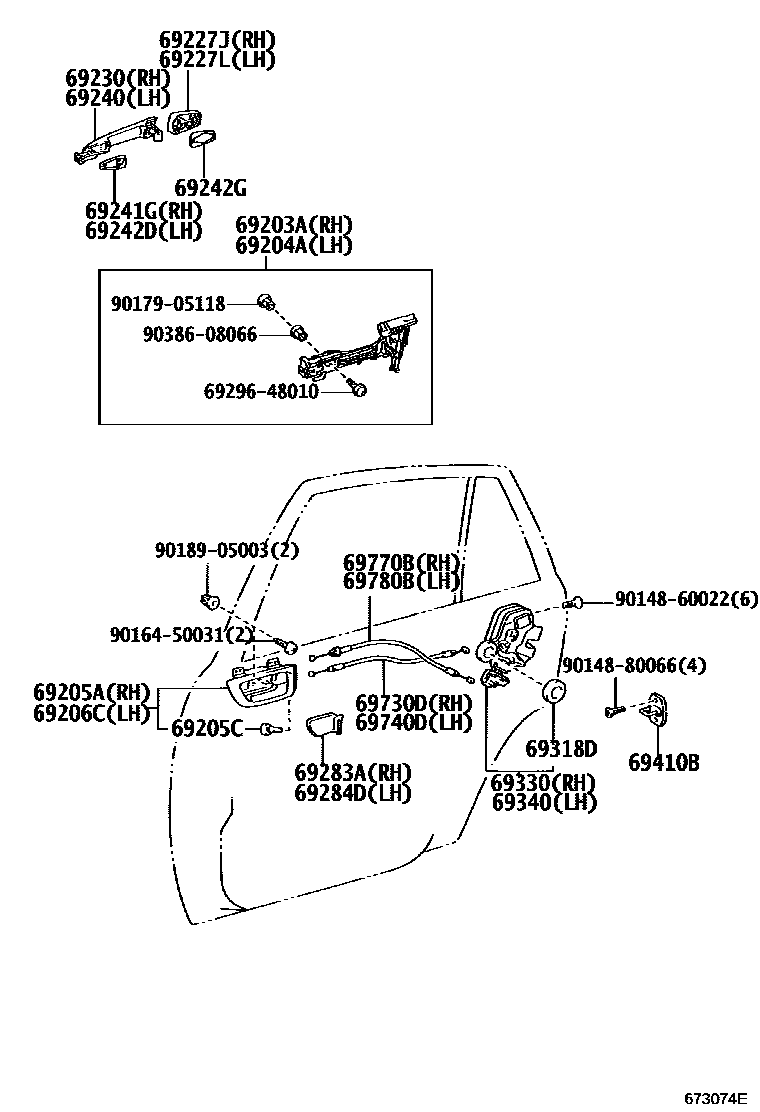

REAR DOOR LOCK & HANDLE

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-48020iGSU35200302-200812

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-48020iMCU3#200302-200812

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-48010-A0iGSU35200302-200812

IVORY,TRIM0#

main69207-48010-B0iMCU3#200302-200812

LT.GRAY,TRIM1#

main69207-48010-C0iGSU35200302-200812

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGSU35200302-200812

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-48010-A0iMCU3#200302-200812

IVORY,TRIM0#

main69208-48010-B0iGSU35200302-200812

LT.GRAY,TRIM1#

main69208-48010-C0iGSU35200302-200812

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-30070iGSU35200701-200812

*CR

main69227-60020-A3iMCU3#200302-200701

WHITE PEARL CS.,062

main69227-60020-B5iMCU3#200302-200701

SILVER ME.,1C0

main69227-60020-B6iGSU35200302-200701

DK.GRAY MC.,1E0

main69227-60020-C0iMCU3#200302-200701

BLACK,202

main69227-60020-E1iMCU3#200302-200701

BEIGE ME.,4R4

main69227-60020-G2iGSU35200302-200701

LT.OLIVE M.M.,6T1

main69227-60020-G3iGSU35200302-200701

DK.GREEN MC.,6T3

main69227-60020-J5iMCU3#200302-200701

LT.BLUE ME.,8R6

main69227-60020-J6iMCU3#200302-200701

DK.BLUE M.M.,8R7

main69227-60020-J7iGSU35200302-200701

LT.BLUE M.M.,8R8

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-30070iGSU35200701-200812

*CR

main69227-60020-A3iMCU3#200302-200701

WHITE PEARL CS.,062

main69227-60020-B5iMCU3#200302-200701

SILVER ME.,1C0

main69227-60020-B6iGSU35200302-200701

DK.GRAY MC.,1E0

main69227-60020-C0iGSU35200302-200701

BLACK,202

main69227-60020-E1iGSU35200302-200701

BEIGE ME.,4R4

main69227-60020-G2iMCU3#200302-200701

LT.OLIVE M.M.,6T1

main69227-60020-G3iMCU3#200302-200701

DK.GREEN MC.,6T3

main69227-60020-J5iGSU35200302-200701

LT.BLUE ME.,8R6

main69227-60020-J6iGSU35200302-200701

DK.BLUE M.M.,8R7

main69227-60020-J7iMCU3#200302-200701

LT.BLUE M.M.,8R8

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-58010iGSU35200701-200812

PLATED

main69211-28070-A4iMCU3#200302-200701

WHITE PEARL CS.,062

main69211-28070-B2iGSU35200302-200701

SILVER ME.,1C0

main69211-28070-B7iMCU3#200302-200701

DK.GRAY MC.,1E0

main69211-28070-C1iMCU3#200302-200701

BLACK,202

main69211-28070-E1iGSU35200302-200701

BEIGE ME.,4R4

main69211-28070-G2iMCU3#200302-200701

LT.OLIVE M.M.,6T1

main69211-28070-G3iMCU3#200302-200701

DK.GREEN MC.,6T3

main69211-28070-J6iGSU35200302-200701

LT.BLUE ME.,8R6

main69211-28070-J7iGSU35200302-200701

DK.BLUE M.M.,8R7

main69211-28070-J8iMCU3#200302-200701

LT.BLUE M.M.,8R8

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-58010iGSU35200701-200812

PLATED

main69211-28070-A4iGSU35200302-200701

WHITE PEARL CS.,062

main69211-28070-B2iMCU3#200302-200701

SILVER ME.,1C0

main69211-28070-B7iGSU35200302-200701

DK.GRAY MC.,1E0

main69211-28070-C1iMCU3#200302-200701

BLACK,202

main69211-28070-E1iMCU3#200302-200701

BEIGE ME.,4R4

main69211-28070-G2iGSU35200302-200701

LT.OLIVE M.M.,6T1

main69211-28070-G3iMCU3#200302-200701

DK.GREEN MC.,6T3

main69211-28070-J6iMCU3#200302-200701

LT.BLUE ME.,8R6

main69211-28070-J7iMCU3#200302-200701

DK.BLUE M.M.,8R7

main69211-28070-J8iMCU3#200302-200701

LT.BLUE M.M.,8R8

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060iMCU3#200302-200812

69242DPAD, REAR DOOR OUTSIDE HANDLE, LH

main69241-28060iMCU3#200302-200812

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-60030iMCU3#200302-200812

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-33020-A0iMCU3#200302-200812

IVORY,TRIM0#

main69283-33020-B2iMCU3#200302-200812

LT.GRAY,TRIM1#

main69283-33020-C0iGSU35200302-200812

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-33020-A0iMCU3#200302-200812

IVORY,TRIM0#

main69284-33020-B2iGSU35200302-200812

LT.GRAY,TRIM1#

main69284-33020-C0iGSU35200302-200812

BLACK,TRIM2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGSU35200302-200812

69330LOCK ASSY, REAR DOOR, RH

main69050-33111iMCU35..LHD200302-200601

main69050-33111iGSU35..ARL,GCC200601-200812

TAIWAN SPEC

main69050-60070iGSU35..EUR200302-200609

main69050-60071iGSU35..EUR200610-200812

69340LOCK ASSY, REAR DOOR, LH

main69060-33111iMCU35..LHD200302-200601

main69060-33111iGSU35..ARL,GCC200601-200812

TAIWAN SPEC

main69060-60070iGSU35..EUR200302-200609

main69060-60071iGSU35..EUR200610-200812

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010iMCU3#200302-200812

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-48040iMCU3#200302-200812

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-48040iMCU3#200302-200812

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-48040iMCU3#200302-200812

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-48040iMCU3#200302-200812

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9017905118

main90179-05118

9018905003

main90189-05003

9038608066

main90386-08066

29 parts on this diagram · 1 diagram in section
