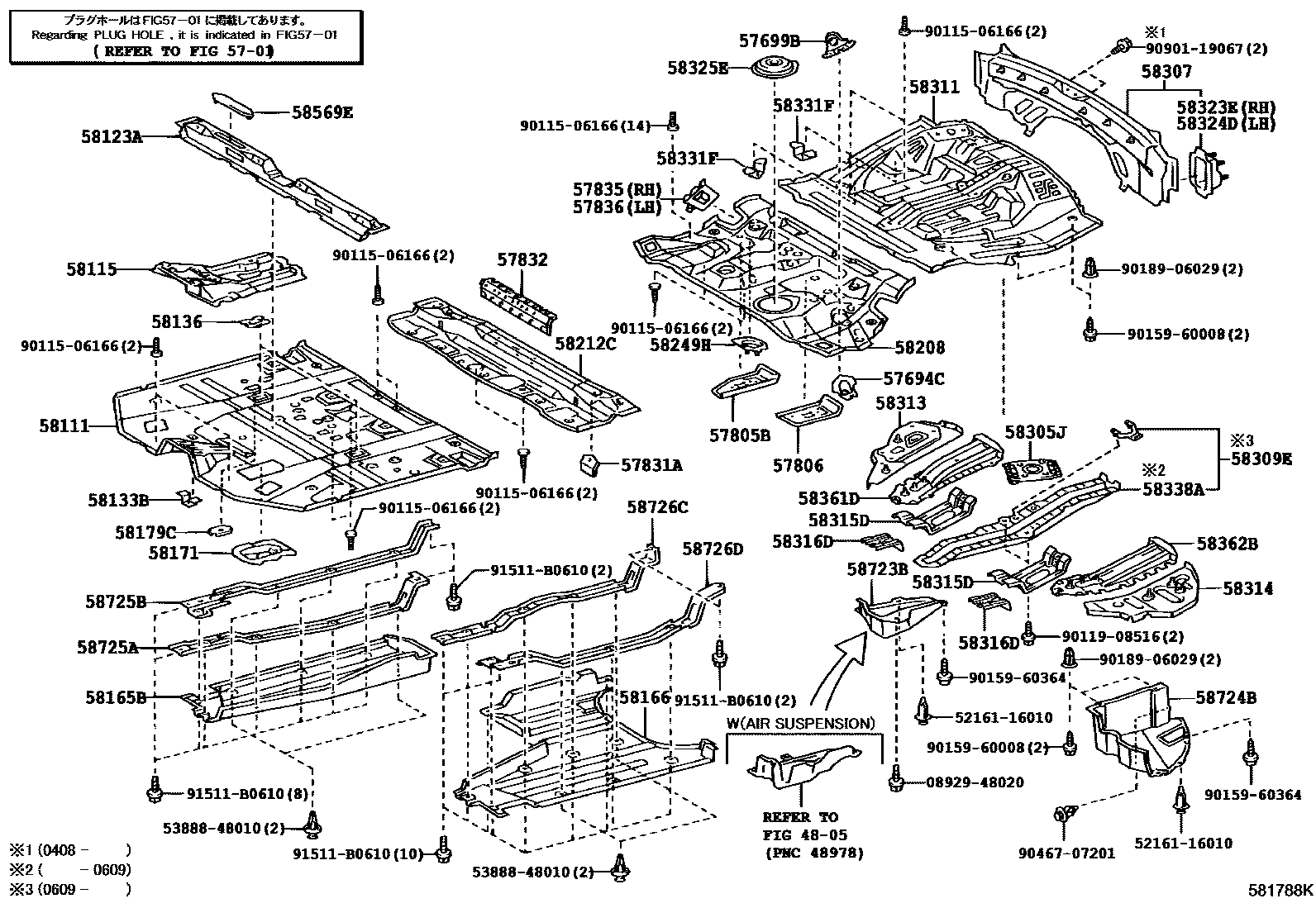

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

5701HOLE PLUG

→ Go to FIG 57-01

57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH

main57693-48010iMCU3#200302-200601

57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3

main57699-48010iMCU3#200302-200601

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-48030iMCU3#200302-200601

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-48010iMCU3#200302-200601

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-48010×2iMCU3#200302-200601

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57832-48020iMCU3#200302-200601

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-48020iMCU3#200302-200601

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-48020iMCU3#200302-200601

58111PAN, FRONT FLOOR

main58111-48907iMCU3#200302-200409

main58111-48912iMCU3#200409-200601

main58111-48916iGSU35200601-200812

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-48040iMCU3#200302-200601

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-48010iMCU3#200302-200601

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-22040iMCU3#200302-200601

58136COVER, FRONT FLOOR HOLE

main58136-48030×2iMCU3#200302-200601

58165BCOVER, FRONT FLOOR, RH

main58165-48010iMCU35200302-200601

58166COVER, FRONT FLOOR, LH

main58166-48010iMCU35200302-200601

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-48030iMCU3#200302-200601

58179CBRACKET, CLAMP FLOOR

main58179-48010iMCU3#200302-200601

58208PAN, CENTER FLOOR

main58211-48903iMCU3#200302-200601

main58211-48908iGSU35200608-200808

main58211-48917iGSU35200808-200812

58212CPAN, CENTER FLOOR, FRONT

main58212-48904iMCU3#200302-200601

58249HBRACKET, CENTER FLOOR BOARD SUPPORT

main58249-48010iMCU3#200302-200601

58305JBRACKET, SPARE WHEEL CARRIER

main58305-48010iMCU3#200302-200601

main58305-48011iGSU35200703-200812

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-48060iMCU3#200302-200601

58309EPLATE SUB-ASSY, REAR FLOOR

main58309-48010iGSU35200609-200812

58311PAN, REAR FLOOR

main58311-48905iMCU3#200302-200601

58313PANEL, REAR FLOOR SIDE, RH

main58313-48030iGSU35200601-200812

main58313-48040iGSU35..EUR200601-200812

SUSPENSION-AIR SUSPENSION

58314PANEL, REAR FLOOR SIDE, LH

main58314-48020iMCU3#200302-200601

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-48011×2iMCU3#200302-200601

main58315-48020×2iGSU35200703-200812

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-48010×2iMCU3#200302-200601

main58316-48020×2iGSU35200703-200812

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-48040iMCU3#200302-200601

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-48030iMCU3#200302-200601

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-48020iMCU3#200302-200601

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×2iGSU35200703-200812

main58331-10011×2iMCU3#200302-200601

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58339-48010iMCU3#200302-200601

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-48010iMCU3#200302-200601

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-48010iMCU3#200302-200601

58569ECOVER, FRONT FLOOR CAUTION PLATE

main58569-48010-A0iGSU35200601-200812

IVORY,TRIM0#

main58569-48010-B1iMCU3#200302-200601

LT.GRAY,TRIM1#

main58569-48010-C0iGSU35200601-200812

BLACK,TRIM2#

58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1

main58723-48010iGSU35..EUR200601-200812

58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2

main58724-48010iMCU35200302-200601

58725ASTAY, ENGINE SERVICE COVER

main58725-48020iMCU35200302-200601

58725BREINFORCEMENT, LUGGAGE COMPARTMENT SIDE COVER, RH

main58725-48010iMCU35200302-200601

58726CSTAY, ENGINE SERVICE COVER, NO.2

main58726-48010iMCU35200302-200601

58726DSTAY, ENGINE SERVICE COVER CATCH, REAR LH

main58726-48020iMCU35200302-200601

0892948020

main08929-48020

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

5388848010SHEET, BAFFLE

main53888-48010

9011506166

main90115-06166

9011908516

main90119-08516

9015960008

main90159-60008

9015960364

main90159-60364

9018906029

main90189-06029

9046707201

main90467-07201

9090119067

main90901-19067

91511B0610

main91511-B0610

55 parts on this diagram · 2 diagrams in section
