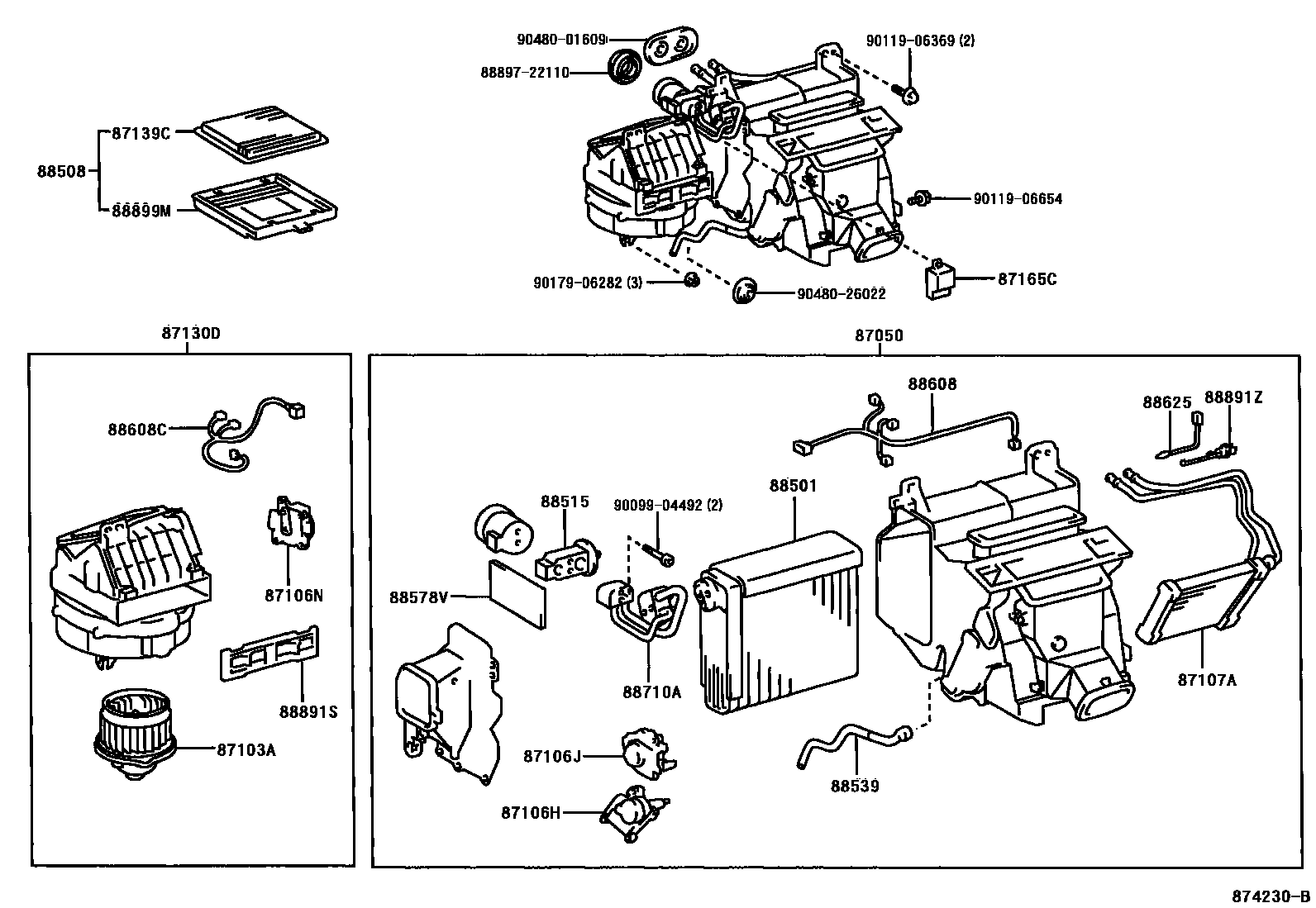

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
GULF SPEC
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
GULF SPEC
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
GULF SPEC
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88625THERMISTOR, COOLER, NO.1
88891SCOVER, COOLER, NO.1
88899MPLATE, COVER(FOR AIR FILTER)
8889722110VALVE, COOLER MAGNET
main88897-22110
9009904492
main90099-04492
9011906369
main90119-06369
9011906654
main90119-06654
9017906282
main90179-06282
9048001609
main90480-01609
9048026022
main90480-26022
28 parts on this diagram · 3 diagrams in section
