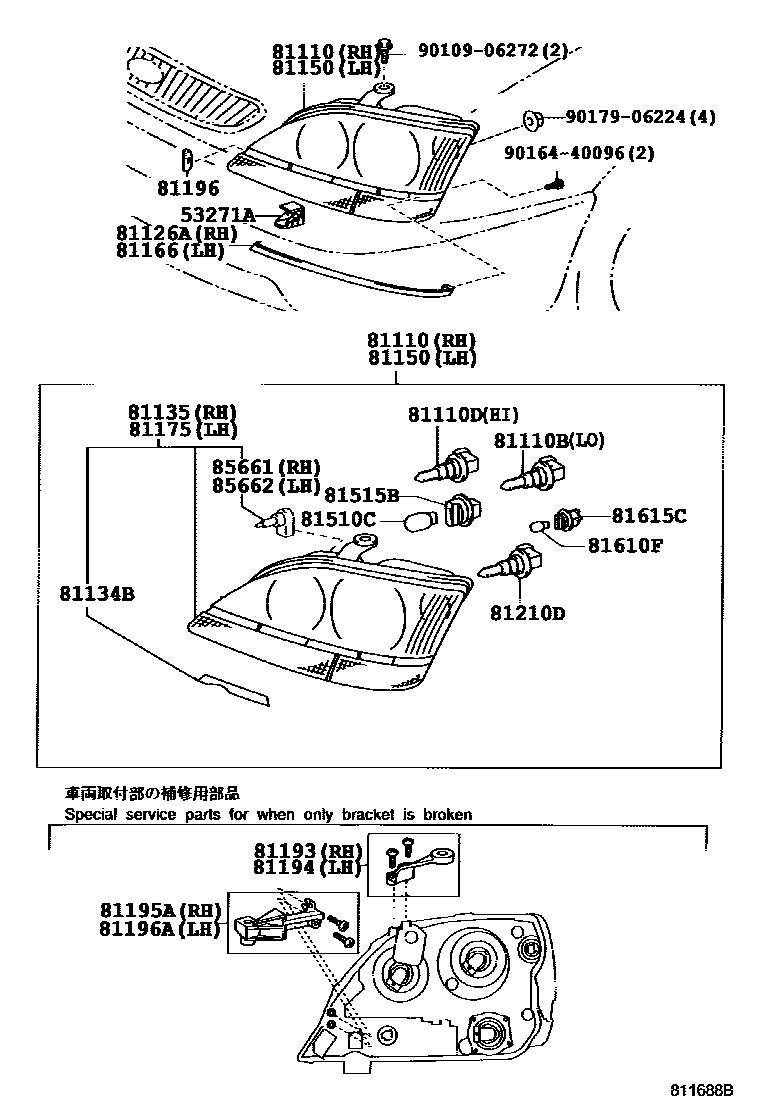

HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iMCU15200007

81110HEADLAMP ASSY, RH

main81110-48090iMCU15..LHD200007

main81110-48100iMCU15..RHD200007

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iMCU15200007

12V 51W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041iMCU15200007

12V 65W

81126APLATE, HEADLAMP, RH

main81126-48011iMCU15200007

81134BTAPE, HEADLAMP PLATE

main81134-48010iMCU15200007

81135UNIT ASSY, HEADLAMP, RH

main81130-48090iMCU15..LHD200007

main81130-48100iMCU15..RHD200007

81150HEADLAMP ASSY, LH

main81150-48090iMCU15..LHD200007

main81150-48100iMCU15..RHD200007

81166PLATE, HEADLAMP, LH

main81166-48011iMCU15200007

81175UNIT ASSY, HEADLAMP, LH

main81170-48090iMCU15..LHD200007

main81170-48100iMCU15..RHD200007

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-48010iMCU15200007

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-48010iMCU15200007

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-48010iMCU15200007

81196RETAINER, HEADLAMP

main81196-48010iMCU15200007

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-48020iMCU15200007

81210DBULB, FOG LAMP

main90080-81040iMCU15200007

12V 51W

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iMCU15200007

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99128iMCU15200007

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iMCU15200007

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60016iMCU15200007

85661MOTOR, HEADLAMP LEVELING, RH

main85661-48010iMCU15200007

85662MOTOR, HEADLAMP LEVELING, LH

main85661-48010iMCU15200007

9010906272

main90109-06272

9016440096

main90164-40096

9017906224

main90179-06224

25 parts on this diagram · 1 diagram in section
