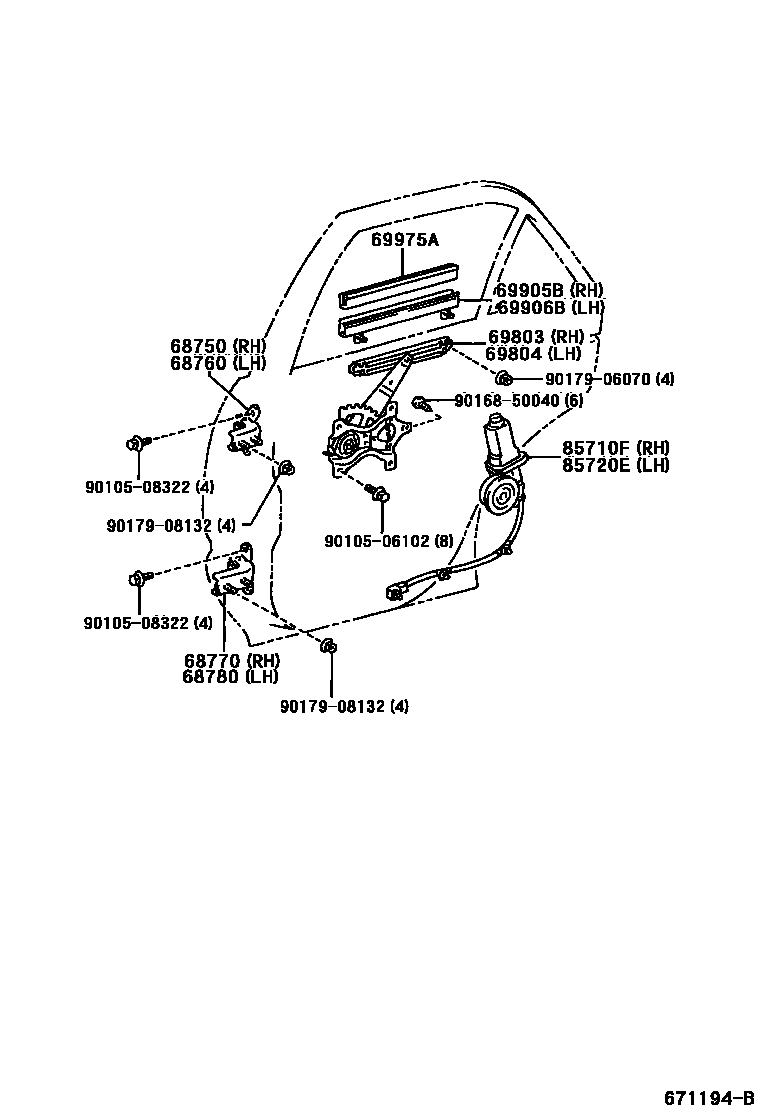

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-48010iMCU15200007

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-48010iMCU15200007

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33010iMCU15200007

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33010iMCU15200007

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-48010iMCU15200007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-48010iMCU15200007

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-48010iMCU15200007

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-48010iMCU15200007

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-42010×2iMCU15200007

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-48040iMCU15200007

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-48030iMCU15200007

9010506102

main90105-06102

9010508322

main90105-08322

9016850040

main90168-50040

9017906070

main90179-06070

9017908132

main90179-08132

16 parts on this diagram · 1 diagram in section
