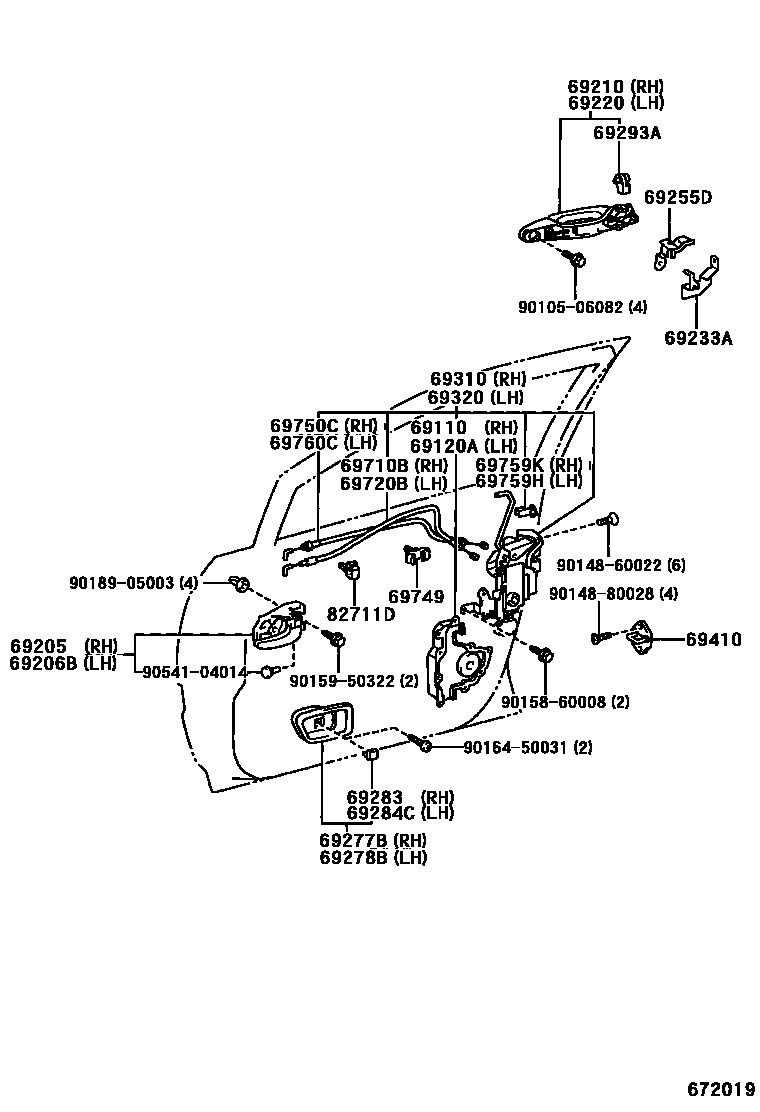

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,065
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
WHITE PEARL CS.,065
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
BLACK,TRIM2#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
BLACK,TRIM2#
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759KSNAP, DOOR LOCK CONTROL LINK
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
82711DCLAMP, WIRING HARNESS
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015860008
main90158-60008
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9054104014
main90541-04014
32 parts on this diagram · 1 diagram in section
