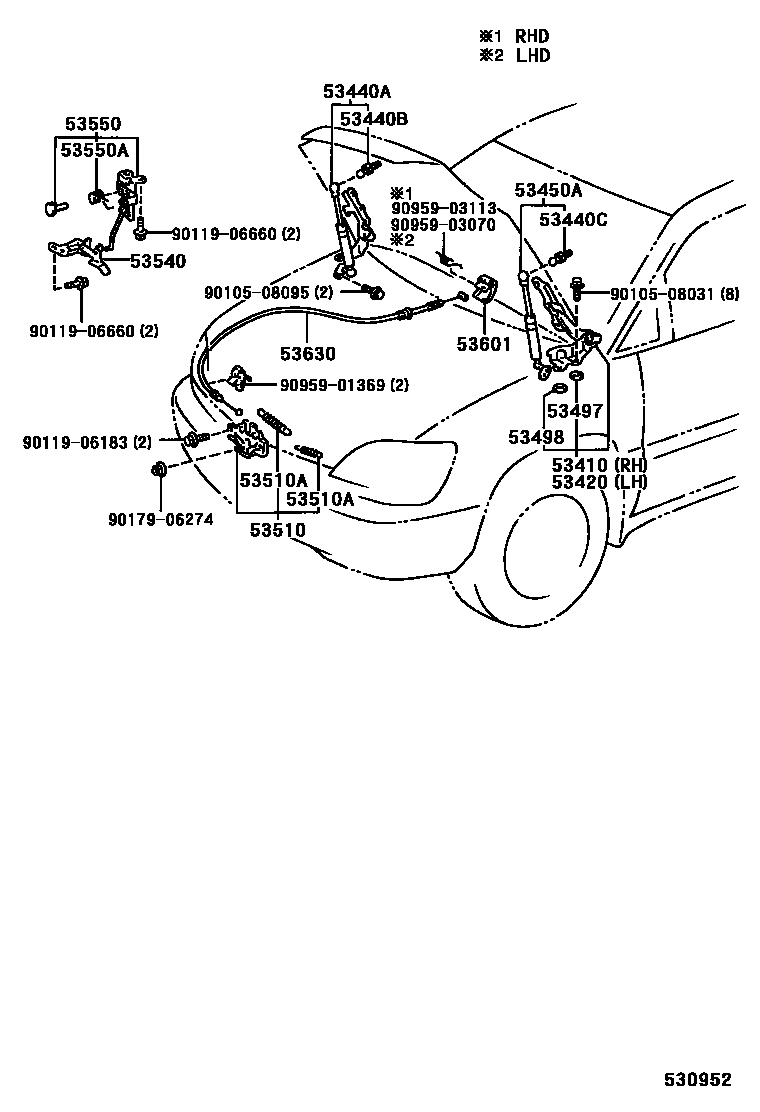

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-48020iMCU15200007

53420HINGE ASSY, HOOD, LH

main53420-48020iMCU15200007

53440ASUPPORT ASSY, HOOD, RH

main53440-49075iMCU15200007

53440BBOLT, HOOD SUPPORT, NO.1

main68961-24030iMCU15200007

53440CBOLT, HOOD SUPPORT, NO.2

main68961-24030iMCU15200007

53450ASUPPORT ASSY, HOOD, LH

main53450-49045iMCU15200007

53497PAD, HOOD HINGE, NO.1

main53497-35010×2iMCU15200007

53498PAD, HOOD HINGE, NO.2

main53497-35010×2iMCU15200007

53510LOCK ASSY, HOOD

main53510-48010iMCU15..LHD200007

main53510-50060iMCU15..RHD200007

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iMCU15200007

WD=0.9,CW=20.5

main90506-18068iMCU15200007

WD=1.8,CW=18

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-48010iMCU15200007

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-48010iMCU15200007

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18102iMCU15200007

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-C0iMCU15..LHD200007

BLACK,TRIM2#

main53611-12040-E0iMCU15..LHD200007

MD.GRAY,TRIM0#

main53611-22010-C0iMCU15..RHD200007

BLACK,TRIM2#

main53611-22010-E1iMCU15..RHD200007

SANDAL WOOD,TRIM0#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-48010iMCU15200007

9010508031

main90105-08031

9010508095

main90105-08095

9011906183

main90119-06183

9011906660

main90119-06660

9017906274

main90179-06274

9095901369

main90959-01369

9095903070

main90959-03070

9095903113

main90959-03113

23 parts on this diagram · 1 diagram in section
