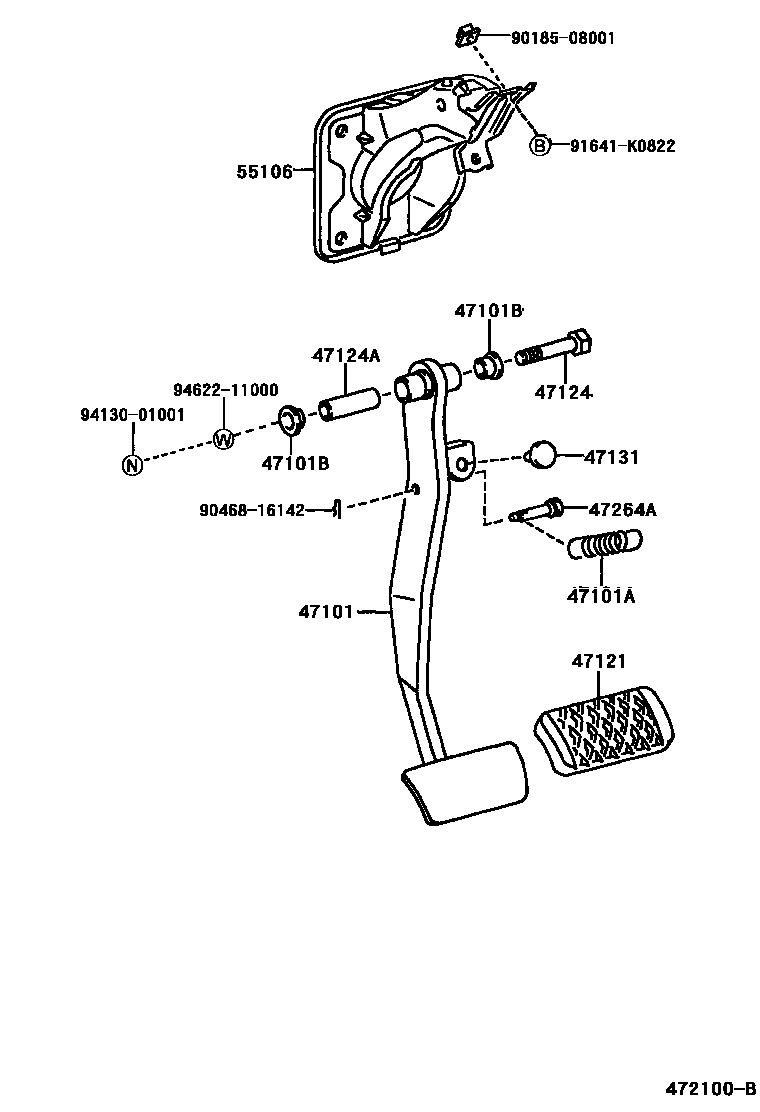

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-48010iMCU15..RHD200007

main47101-48020iMCU15..LHD200007

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCU15200007

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCU15200007

47121PAD, BRAKE PEDAL

main47121-50010iMCU15200007-200011

main47121-50020iMCU15200011

47124SHAFT, BRAKE PEDAL

main90101-10015iMCU15200007

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCU15200007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCU15200007

47264APIN(FOR PUSH ROD)

main47148-33010iMCU15200007-200108

main47148-33011iMCU15200108

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48010iMCU15..RHD200007

main55106-48020iMCU15..LHD200007

9018508001

main90185-08001

9046816142

main90468-16142

91641K0822

main91641-K0822

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 2 diagrams in section
