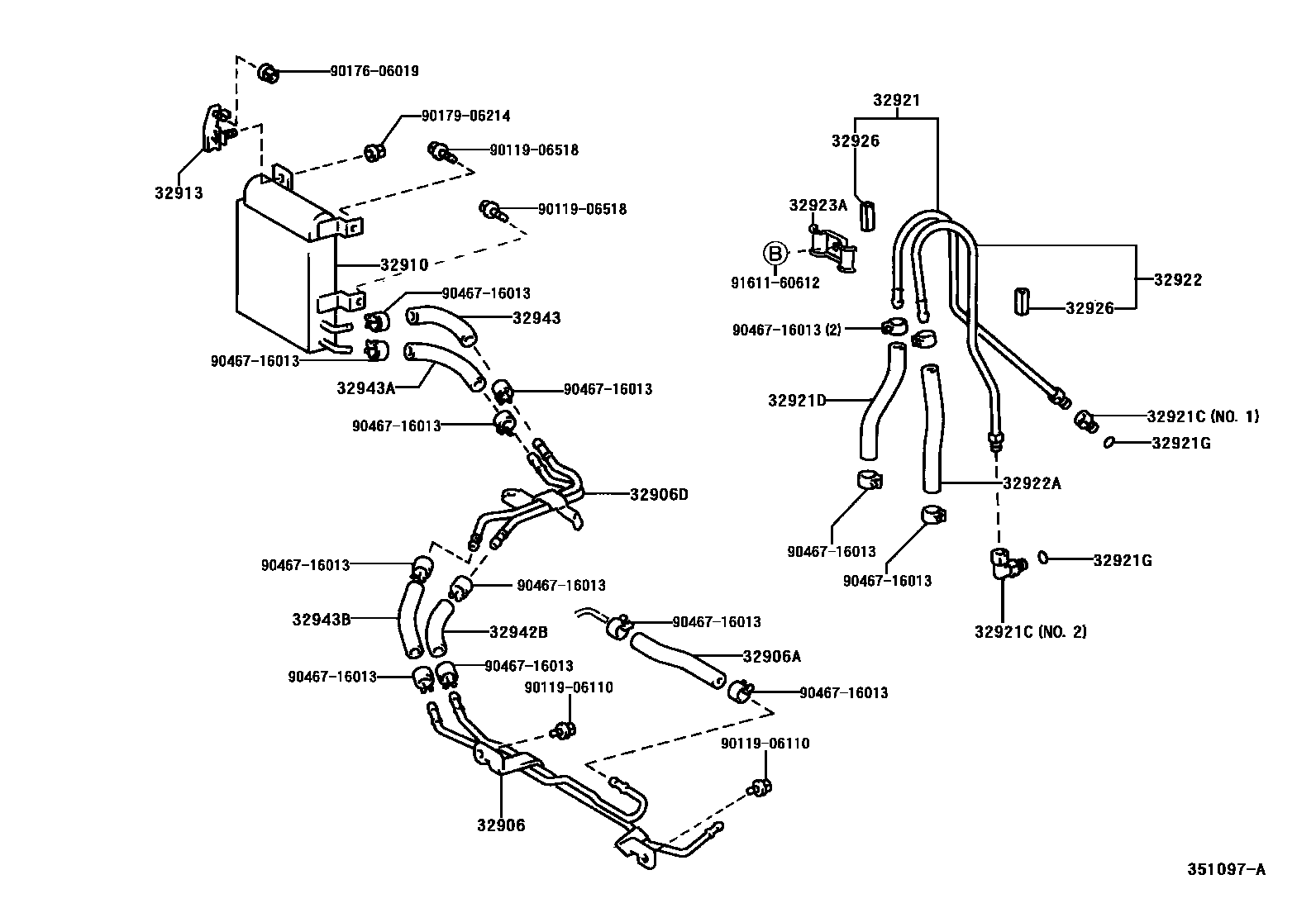

OIL COOLER & TUBE (ATM)

0001 1U140F,AIR COOLING OIL COOLER 0002 1U140F,AIR COOLING OIL COOLER

32906TUBE SUB-ASSY, OIL COOLER

main32907-48010iMCU15200007

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-17095iMCU15200007

32906DTUBE SUB-ASSY, OIL COOLER, NO.2

main32907-48020iMCU15200007

32910COOLER ASSY, OIL

main32910-48010iMCU15200007

32913BRACKET, OIL COOLER

main32913-48010iMCU15200007

32921TUBE, OIL COOLER INLET, NO.1

main32921-48010iMCU15200007-200012

main32921-48090iMCU15200012

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iMCU15200007

NO.1

main90407-16010iMCU15200007

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main90445-17115iMCU15200007-200012

main90445-17170iMCU15200012

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMCU15200007

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-48010iMCU15200007-200012

main32922-48060iMCU15200012

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17069iMCU15200007-200012

main90445-17110iMCU15200012

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iMCU15200007

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iMCU15200007

L=35,ID=10

32942BHOSE, OIL COOLER OUTLET, NO.3

main90445-17151iMCU15200007

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-48040iMCU15200007

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-48030iMCU15200007

32943BHOSE, TRANSMISSION OIL COOLER

main90445-17139iMCU15200007

9011906110

main90119-06110

9011906518

main90119-06518

9017606019

main90176-06019

9017906214

main90179-06214

9046716013

main90467-16013

9161160612

main91611-60612

23 parts on this diagram · 2 diagrams in section
