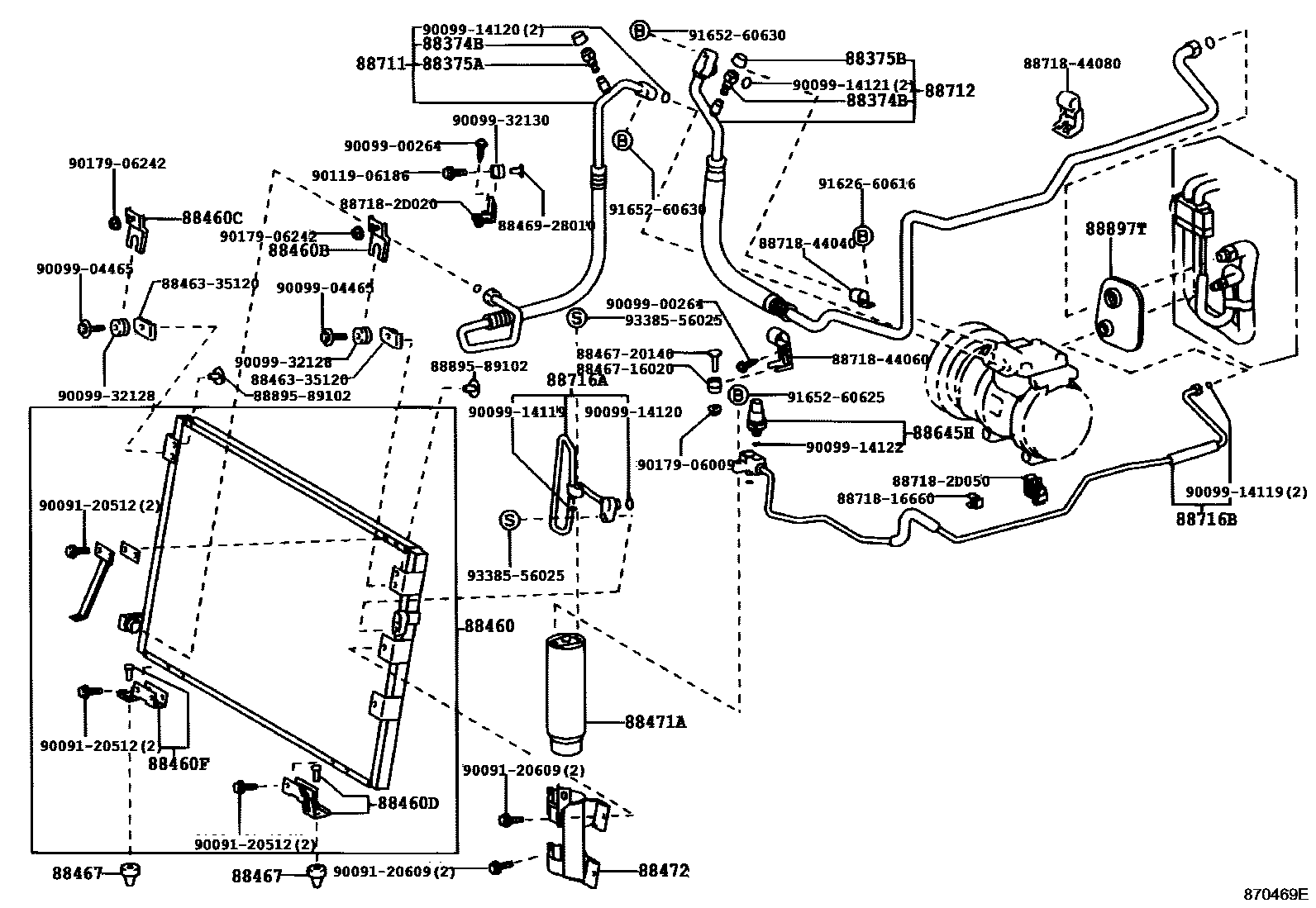

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1MAKER OPT 0004 1MAKER OPT 0005 1DEALER OPTION 0006 1DEALER OPTION 0007 1DEALER OPT 0008 1DEALER OPT 0009 1MAKER OPTION 0010 1MAKER OPTION 0011 1MAKER OPTION 0012 1MAKER OPTION 0013 1DEALER OPTION 0014 1DEALER OPTION 0015 1DEALER OPTION 0016 1DEALER OPTION 0017 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010iCXM10199709-199804

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iCXM10,SXM10199609-200008

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iCXM10,SXM10199609-200008

88460CONDENSER ASSY, COOLER

main88460-44020iSXM10..LHD199609-199804

main88460-44030iSXM10..RHD199609-199804

main88460-44040iCXM10..RHD199709-199804

main88460-44050iCXM10..LHD199709-199804

main88460-44330iSXM10..RHD199804

main88460-44340iCXM10..RHD200008

main88460-44350iSXM10..LHD199804

main88460-44360iCXM10..LHD200008

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-44070iCXM10,SXM10199609-199804

main88688-44130iCXM10,SXM10..LHD199804-200008

main88688-44160iCXM10,SXM10..RHD200008

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-44060iCXM10,SXM10199609-199804

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-26470iSXM10199609-199708

DEALER OPTION

main88688-35120iSXM10199708-199804

DEALER OPTION

main88688-44030iCXM10,SXM10199609-199804

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-26470iSXM10199609-199708

DEALER OPTION

main88688-35120iSXM10199708-199804

DEALER OPTION

main88688-44040iCXM10,SXM10199609-199804

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32060×2iCXM10,SXM10199609-200008

88471ATANK, RECEIVER

main88471-20050iCXM10,SXM10199708-199804

main88471-34010iSXM10199609-199708

88472BRACKET, RECEIVER TANK, NO.1

main88472-44020iCXM10,SXM10..RHD199609-199804

main88472-44030iCXM10,SXM10..LHD199609-199804

88645HSWITCH, PRESSURE NO.1

main88645-20050iSXM10199609-199804

main88645-36050iCXM10199709-200008

main88645-44010iSXM10199804

MAKER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-44010iSXM10..RHD199609-199804

main88711-44020iSXM10..LHD199609-199804

main88711-44030iSXM10..RHD199609-199804

DEALER OPTION

main88711-44040iSXM10..LHD199609-199804

DEALER OPTION

main88711-44050iCXM10..RHD199709-199804

main88711-44060iCXM10..LHD199709-199804

main88711-44070iCXM10..RHD199709-199804

DEALER OPTION

main88711-44080iCXM10..LHD199709-199804

DEALER OPTION

main88711-44110iSXM10..RHD199804-199807

main88711-44120iCXM10..RHD199804-199807

main88711-44130iSXM10..LHD199804-199807

main88711-44140iCXM10..LHD199807-199808

DEALER OPTION

main88711-44180iCXM10,SXM10..LHD199807-199909

main88711-44190iCXM10,SXM10..RHD199807-199909

main88711-44210iCXM10,SXM10..RHD200008

MAKER OPTION

main88711-44230iCXM10,SXM10..LHD199909-200008

MAKER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-44010iSXM10..RHD199609-199708

main88712-44020iSXM10..RHD199804-199808

DEALER OPTION

main88712-44030iSXM10..LHD199609-199804

main88712-44040iSXM10..LHD199609-199804

DEALER OPTION

main88712-44050iSXM10..RHD199609-199804

DEALER OPTION

main88712-44060iCXM10..LHD199709-199804

main88712-44070iCXM10..RHD199709-199804

main88712-44080iCXM10..RHD199709-199804

DEALER OPTION

main88712-44090iCXM10..LHD199709-199804

DEALER OPTION

main88712-44100iSXM10..RHD199708-199804

main88712-44110iSXM10..RHD199804-199807

main88712-44120iCXM10..RHD199804-199909

main88712-44130iSXM10..LHD199804-199807

main88712-44140iCXM10..LHD199804-199909

main88712-44150iSXM10..RHD199808-199909

DEALER OPTION

main88712-44160iCXM10..RHD199808-199909

DEALER OPTION

main88712-44170iSXM10..RHD199807-199909

main88712-44190iCXM10..RHD199804-199808

DEALER OPTION

main88712-44210iSXM10..LHD199804-199808

DEALER OPTION

main88712-44220iCXM10..LHD199804-199808

DEALER OPTION

main88712-44250iSXM10..LHD199807-199909

main88712-44280iSXM10..RHD199909

MAKER OPTION

main88712-44290iSXM10..RHD199909

DEALER OPTION

main88712-44300iSXM10..LHD199909

main88712-44310iCXM10..RHD200008

MAKER OPTION

main88712-44320iCXM10..RHD199909-200008

DEALER OPTION

main88712-44330iCXM10..LHD199909-200008

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-44020iCXM10,SXM10..LHD199609-199804

main88716-44120iCXM10,SXM10..RHD199609-199804

main88716-44290iCXM10,SXM10..LHD199804-200008

main88716-44370iCXM10,SXM10..RHD199804-200008

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-44030iSXM10..LHD199609-199804

main88716-44040iSXM10..RHD199609-199708

main88716-44100iSXM10..RHD199609-199708

DEALER OPTION

main88716-44110iCXM10,SXM10..LHD199609-199804

DEALER OPTION

main88716-44130iCXM10..LHD199709-199804

main88716-44140iCXM10..RHD199709-199804

W(SINGLE AIR CONDITIONER)

main88716-44190iSXM10..RHD199708-199804

main88716-44200iSXM10..RHD199708-199804

DEALER OPTION

main88716-44250iCXM10..RHD199709-199804

main88716-44300iSXM10..RHD199804

main88716-44310iCXM10..RHD200008

main88716-44320iSXM10..LHD199804

main88716-44330iCXM10..LHD199804-200008

main88716-44420iCXM10,SXM10..RHD200008

DEALER OPTION

main88716-44430iCXM10,SXM10..LHD199804-200008

DEALER OPTION

88897TGROMMET, COOLER

main88897-44010iCXM10,SXM10..RHD199609-200008

main88897-44020iCXM10,SXM10..LHD199609-200008

8846335120BRACKET, COOLER CONDENSER, NO.1

main88463-35120

8846716020CUSHION, COOLER CONDENSER, NO.1

main88467-16020

8846720140CUSHION, COOLER CONDENSER, NO.1

main88467-20140

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

8871816660PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16660

887182D020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D020

887182D050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D050

8871844040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44040

8871844060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44060

8871844080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44080

8889589102HOLDER, FUSE

main88895-89102

9009120512

main90091-20512

9009120609

main90091-20609

9009900264

main90099-00264

9009904465

main90099-04465

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932128

main90099-32128

9009932130

main90099-32130

9011906186

main90119-06186

9017906009

main90179-06009

9017906242

main90179-06242

9162660616

main91626-60616

9165260625

main91652-60625

9165260630

main91652-60630

9338556025

main93385-56025

45 parts on this diagram · 17 diagrams in section
