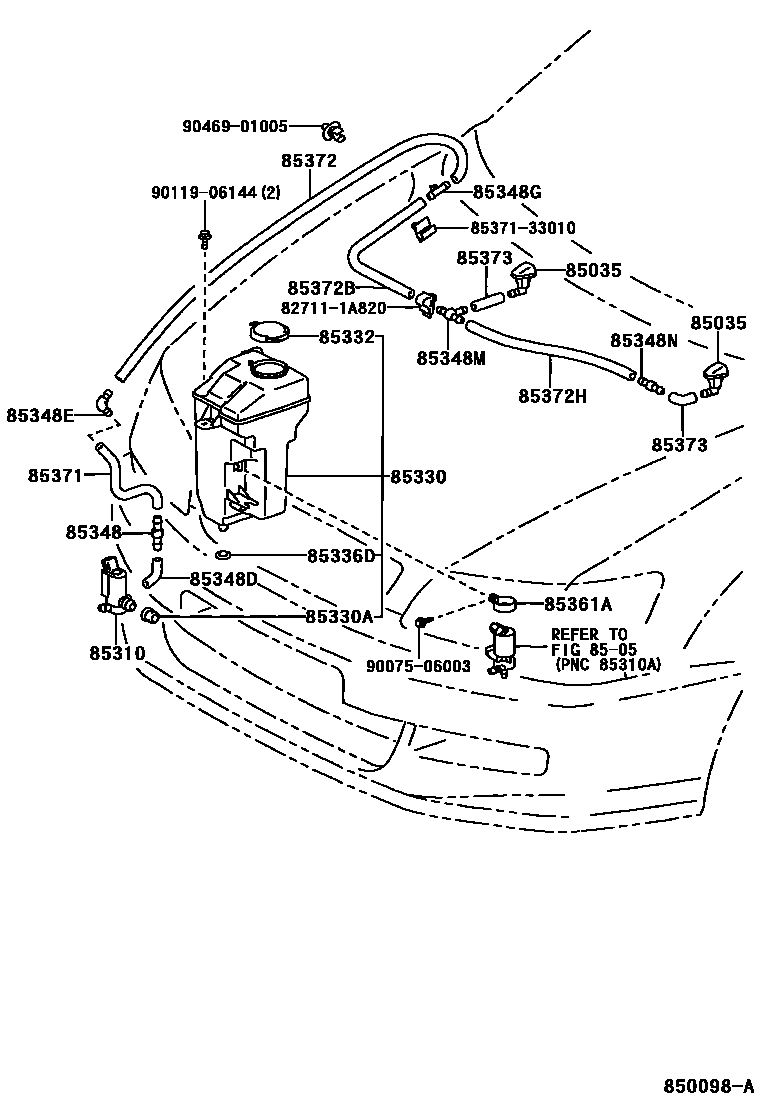

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2iCXM10,SXM10199609-200008

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-44010iCXM10,SXM10199609-200008

85330JAR ASSY, WINDSHIELD WASHER

main85315-44020iCXM10,SXM10199609-200008

main85315-44030iCXM10,SXM10..LHD200008

W(HEADLAMP CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCXM10,SXM10200008

85332CAP, WINDSHIELD WASHER JAR

main85316-20300iCXM10,SXM10199609-200008

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iCXM10,SXM10199609-200008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iCXM10,SXM10199609-200008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-16192iCXM10,SXM10199609-200008

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iCXM10,SXM10200008

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-17050iCXM10,SXM10199609-200008

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-28110iCXM10,SXM10199609-200008

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iCXM10,SXM10199609-200008

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-33020iCXM10,SXM10..LHD199609-200008

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iCXM10,SXM10199609-200008

L=1450(*H,L=190)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iCXM10,SXM10199609-200008

L=1450(*H,L=1370)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iCXM10,SXM10199609-200008

L=1450(*H,L=540)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33916iCXM10,SXM10199609-200008

L=1450(*H,L=450)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iCXM10,SXM10199609-200008

L=1450(*H,L=70)

827111A820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A820

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9007506003

main90075-06003

9011906144

main90119-06144

9046901005

main90469-01005

24 parts on this diagram · 1 diagram in section
