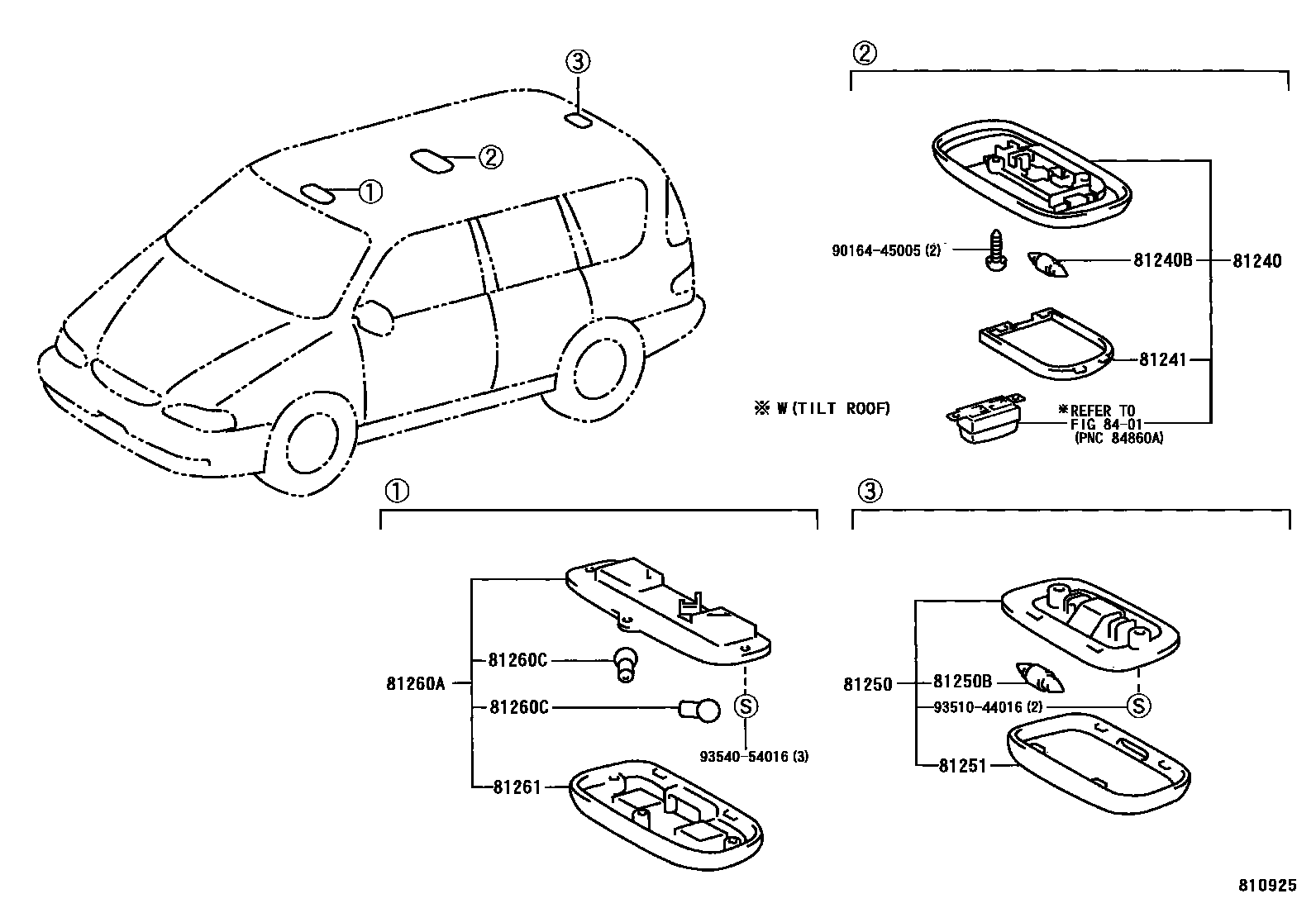

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iCXM10,SXM10199804-200105

LT.BLUISH GRAY,TRIM1#

main81240-12060-B2iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main81240-44010-B0iCXM10,SXM10199609-199804

W(TILT ROOF),MOON MIST,TRIM1#

main81240-44010-B1iCXM10,SXM10199804-200105

W(TILT ROOF),LT.BLUISH GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iCXM10,SXM10199609

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iCXM10,SXM10199609

main81241-44010iCXM10,SXM10199609

W(TILT ROOF)

81250LAMP ASSY, ROOM, NO.2

main81250-44010-B0iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main81250-44010-B1iCXM10,SXM10199804-200105

LT.BLUISH GRAY,TRIM1#

81250BBULB, ROOM LAMP, NO.2

main90981-14004iCXM10,SXM10199609

12V 8W

81251LENS, ROOM LAMP, NO.2

main81251-28010iCXM10,SXM10199609

81260ALAMP ASSY, MAP

main81260-20130-B1iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main81260-20130-B2iCXM10,SXM10199804-200105

LT.BLUISH GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005iCXM10,SXM10199609

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-20130-B1iCXM10,SXM10199609-199804

MOON MIST,TRIM1#

main81261-20130-B2iCXM10,SXM10199804-200105

LT. BLUISH GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016445005

main90164-45005

9351044016

main93510-44016

9354054016

main93540-54016

13 parts on this diagram · 1 diagram in section
