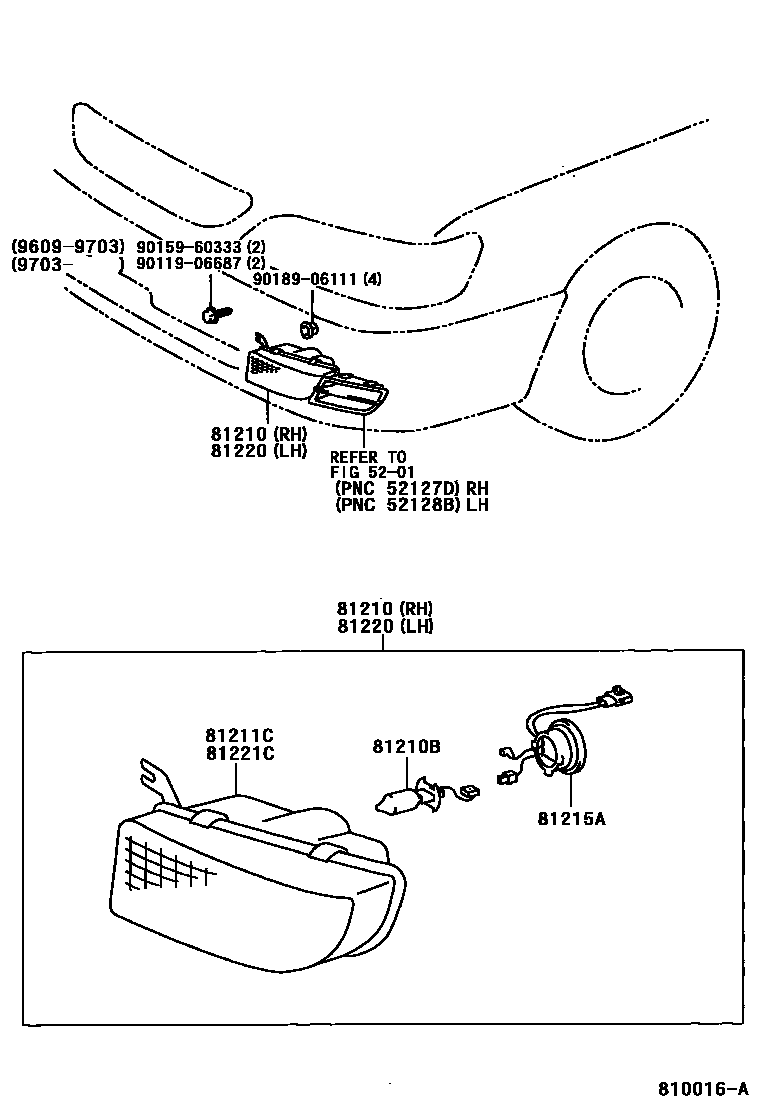

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210LAMP ASSY, FOG

main81210-44020iCXM10,SXM10199609

81210BBULB, FOG LAMP

main90981-13018×2iCXM10,SXM10199609

12V 55W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-44010iCXM10,SXM10199609

81215ASOCKET & WIRE, FOG LAMP

main81215-44010×2iCXM10,SXM10199609-199804

main81215-44020×2iCXM10,SXM10199804

81220LAMP ASSY, FOG, LH

main81220-44020iCXM10,SXM10199609

81221CLAMP UNIT, FOG LAMP, LH

main81221-44010iCXM10,SXM10199609

9011906687

main90119-06687

9015960333

main90159-60333

9018906111

main90189-06111

10 parts on this diagram · 1 diagram in section
