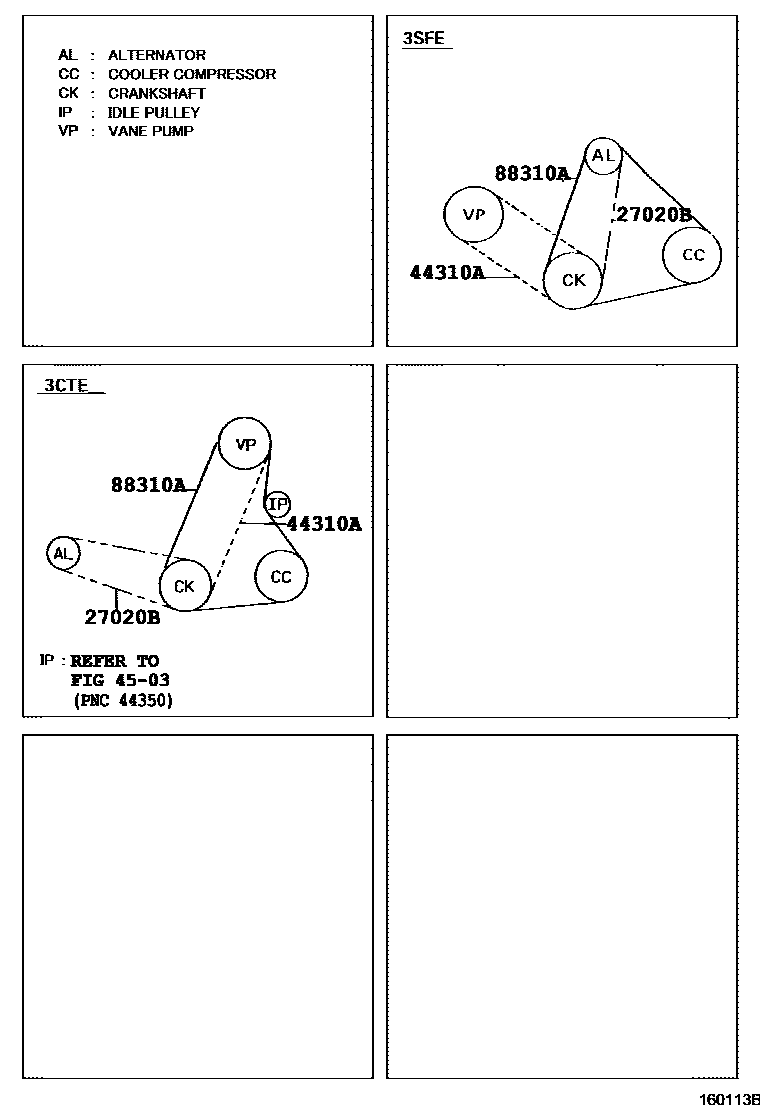

V-BELT

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE..SXM10199609

main90916-02372i3CTE..CXM10199709

44310ABELT, V(FOR VANE PUMP)

main99363-30760iSXM10199803

L=760,MITSUBOSHI

main99363-80760iSXM10199609-199803

L=760,MITSUBOSHI

main99363-90760iSXM10199609

L=760,BANDO

main99365-81110iCXM10199803-200008

L=1110

main99365-81110iCXM10199709-199803

L=1110,MITSUBOSHI

main99365-91110iCXM10199709-199803

L=1110,BANDO

4503POWER STEERING TUBE

→ Go to FIG 45-03

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02467iSXM10199807-200004

L=1080,BANDO

main99365-21220iCXM10199709-200105

L=1220,MITSUBOSHI

main99365-31080iSXM10199807-200004

L=1080,MITSUBOSHI

main99365-31080iSXM10200004-200105

L=1080

main99365-31090iSXM10199704-199807

L=1090,MITSUBOSHI

main99365-81090iSXM10199609-199704

MITSUBOSHI

main99365-81220iCXM10199709-200105

L=1220,BANDO

main99365-91090iSXM10199609-199807

L=1090,BANDO

4 parts on this diagram · 1 diagram in section
