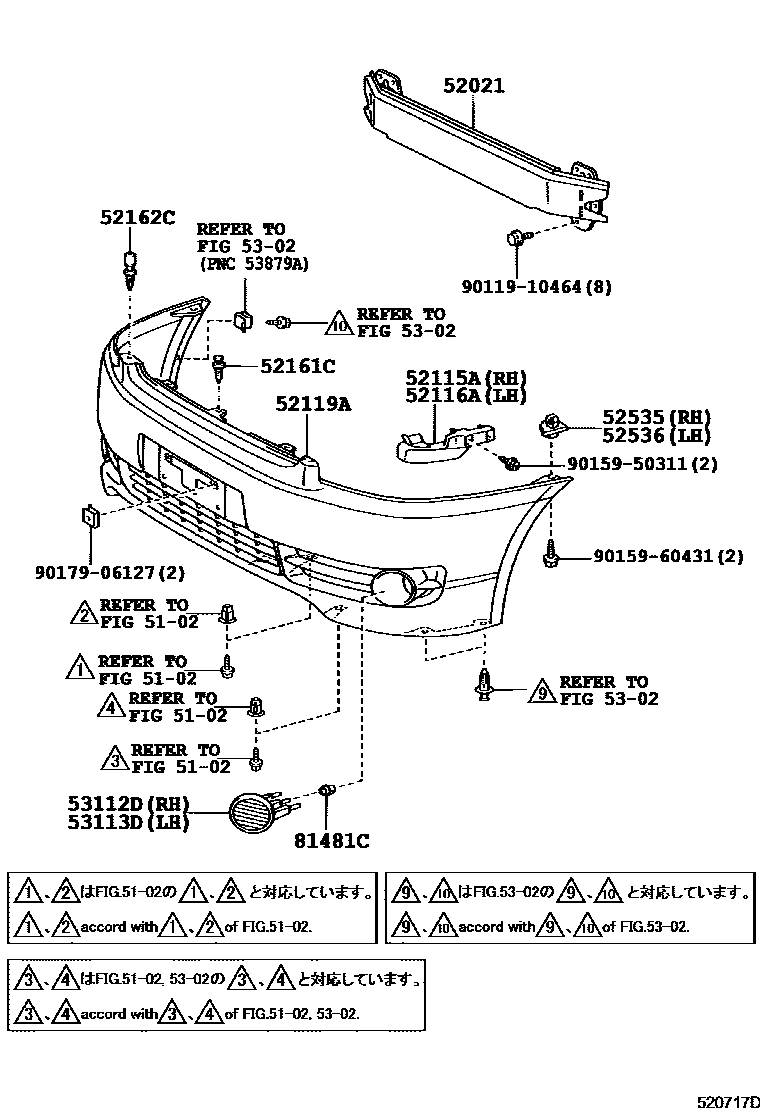

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-44010iACM20,CLM20200105-200912

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-44040iACM20,CLM20200105-200310

main52115-44060iACM2#,CLM20200310

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-44040iACM20,CLM20200105-200310

main52116-44060iACM2#,CLM20200310

52119ACOVER, FRONT BUMPER

main52110-44902iACM20200105-200112

main52110-44903iACM20..LHD200105-200112

W(HEADLAMP CLEANER)

main52110-44904iCLM20200105-200112

main52110-44905iCLM20..LHD200105-200112

W(HEADLAMP CLEANER)

main52110-44908iACM20200112-200310

main52110-44909iACM20..LHD200112-200310

W(HEADLAMP CLEANER)

main52110-44910iCLM20200112-200310

main52110-44911iCLM20..LHD200112-200310

W(HEADLAMP CLEANER)

main52119-44909iACM2#,CLM20200310-200912

main52119-44910iACM20,CLM20..LHD200310-200507

W(HEADLAMP CLEANER)

52161CPIECE, FRONT BUMPER

main52161-16010iACM20,CLM20200105-200310

52162CPIECE, FRONT BUMPER

main53384-44010iACM20,CLM20200105-200310

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-44040iACM20,CLM20200105-200310

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-44040iACM2#,CLM20200105-200310

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53112DGRILLE, RADIATOR, LOWER RH

main53112-44060iACM20,CLM20200105-200310

main53112-44070iACM2#,CLM20200310

53113DGRILLE, RADIATOR, LOWER LH

main53113-44060iACM20,CLM20200105-200310

main53113-44070iACM2#200310

main53113-44080iCLM20200310-200507

81481CBRACKET, FOG LAMP

main81481-10030iACM20,CLM20200105-200310

9011910464

main90119-10464

9015950311

main90159-50311

9015960431

main90159-60431

9017906127

main90179-06127

17 parts on this diagram · 2 diagrams in section
