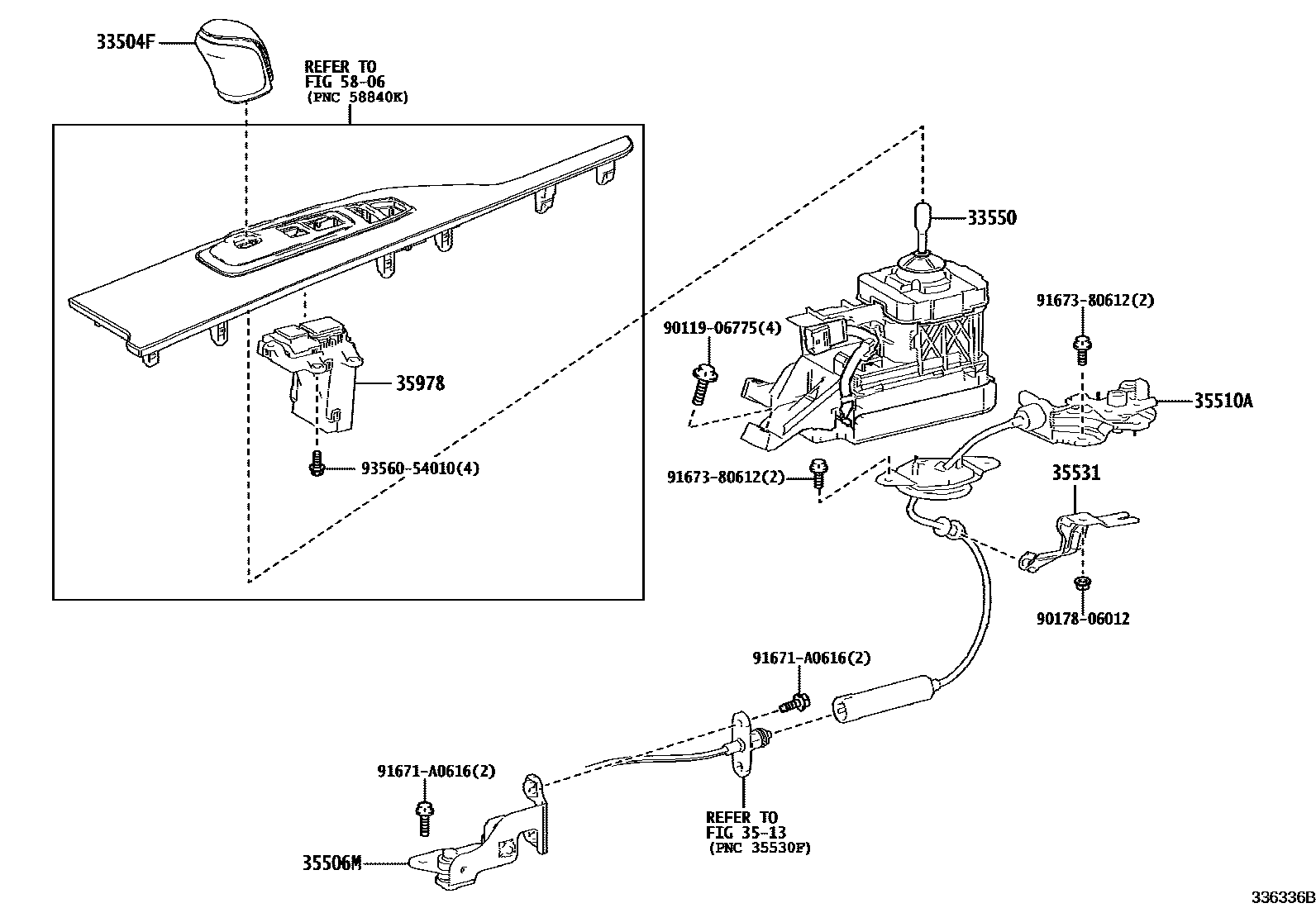

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-11010-C1iURZ100202007

BLACK,TRIM2#,3#

main33504-11010-E0iURZ100202007

OCHRE,TRIM4#

main33504-11010-J0iURZ100202111

BLUE,TRIM0#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-11010iURZ100..LHD202007

main33550-11020iURZ100..RHD202007

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35506MBRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2

main35506-50040iURZ100202007

35510ALEVER ASSY, PARKING LOCK RELEASE

main35510-11070iURZ100..RHD202007

main35510-11080iURZ100..LHD202007

35531BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1

main35531-11030iURZ100202007

35978INDICATOR, SHIFT POSITION

main35978-11010iURZ100..LHD202007

main35978-11020iURZ100..RHD202007

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9011906775

main90119-06775

9017806012

main90178-06012

91671A0616

main91671-A0616

9167380612

main91673-80612

9356054010

main93560-54010

13 parts on this diagram · 2 diagrams in section
