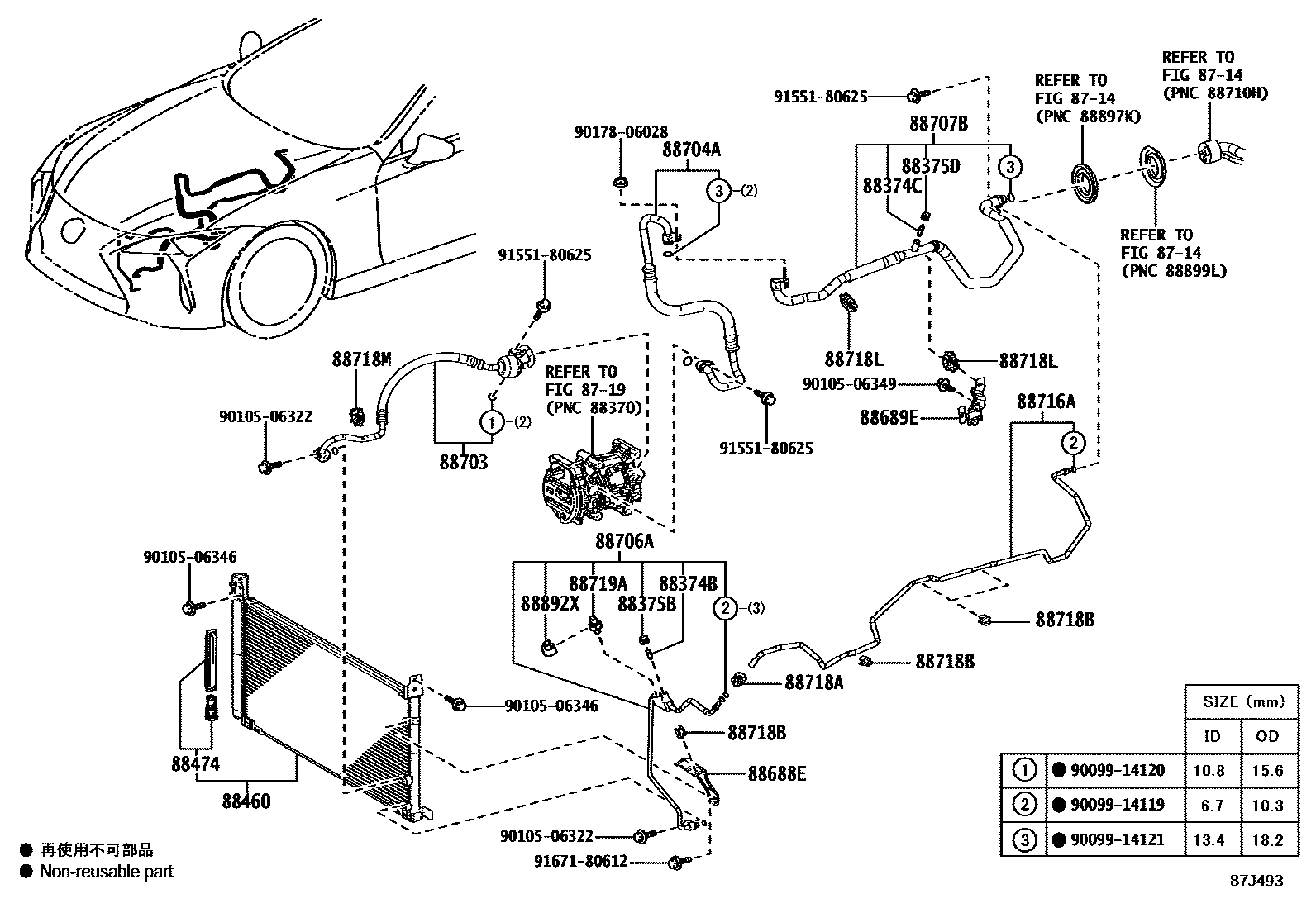

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGWZ100,URZ100201705

88374CVALVE, SERVICE, NO.2

main88374-30010iGWZ100,URZ100201705

88375BCAP, SERVICE VALVE, NO.1

main88375-30320iGWZ100,URZ100201705

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iGWZ100,URZ100201705

88460CONDENSER ASSY, COOLER

main884A0-11020iURZ100201705

main884A0-11030iGWZ100201705

88474DRYER, COOLER

main88474-47030iGWZ100,URZ100201705

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-11010iGWZ100,URZ100201705

88689EBRACKET, COOLER, NO.1

main88688-11030iURZ100201705

main88688-11040iGWZ100201705

88703HOSE SUB-ASSY, DISCHARGE

main88703-11010iURZ100201705-202004

main88703-11020iGWZ100201705

main88703-11030iURZ100202004

88704AHOSE SUB-ASSY, SUCTION, A

main88704-11010iURZ100201705-202004

main88704-11020iGWZ100201705

main88704-11030iURZ100202004

88706ATUBE SUB-ASSY, LIQUID, A

main88706-11030iGWZ100,URZ100201705

88707BTUBE SUB-ASSY, SUCTION, B

main88707-11050iURZ100201705-202004

main88707-11070iGWZ100..LHD201705

main88707-11080iGWZ100..RHD201705

main88707-11100iURZ100202004

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-11010iURZ100..LHD201705

main88716-11020iURZ100..RHD201705

main88716-11030iGWZ100..LHD201705

main88716-11040iGWZ100..RHD201705

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iGWZ100,URZ100201705

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-50390iGWZ100,URZ100201705

88718LCLAMP, PIPING

main88718-42110iGWZ100,URZ100201705

88718MCLAMP, PIPING

main88718-47090iGWZ100,URZ100201705

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iGWZ100,URZ100201705

88892XCOVER, COOLER, NO.2

main88892-50120iGWZ100,URZ100201705

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9010506346

main90105-06346

9010506349

main90105-06349

9017806028

main90178-06028

9155180625

main91551-80625

9167180612

main91671-80612

30 parts on this diagram · 8 diagrams in section
