SPEAKER

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W450iGWZ100,URZ100202210

RH

main86150-0W460supersedes 86150-11030iGWZ100,URZ100202210

LH

86150BSPEAKER ASSY, W/BOX, NO.2

main86150-0W470×2supersedes 86150-11060iGWZ100,URZ100202210

86150CSPEAKER ASSY, W/BOX, NO.3

main86150-0W480supersedes 86150-11080iGWZ100,URZ100202210

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX50×2supersedes 86160-11070iGWZ100,URZ100202210

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WX50supersedes 86160-11060iGWZ100,URZ100202210

86168COVER, SPEAKER MOUNTING

main86168-0W020supersedes 86168-11010iGWZ100,URZ100202210

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-11010iGWZ100,URZ100201705-201709

main86240-11011iGWZ100,URZ100201710

9015950311

main90159-50311

9015960303

main90159-60303

9016440105

main90164-40105

9017906274

main90179-06274

9017908068

main90179-08068

9018906246

main90189-06246

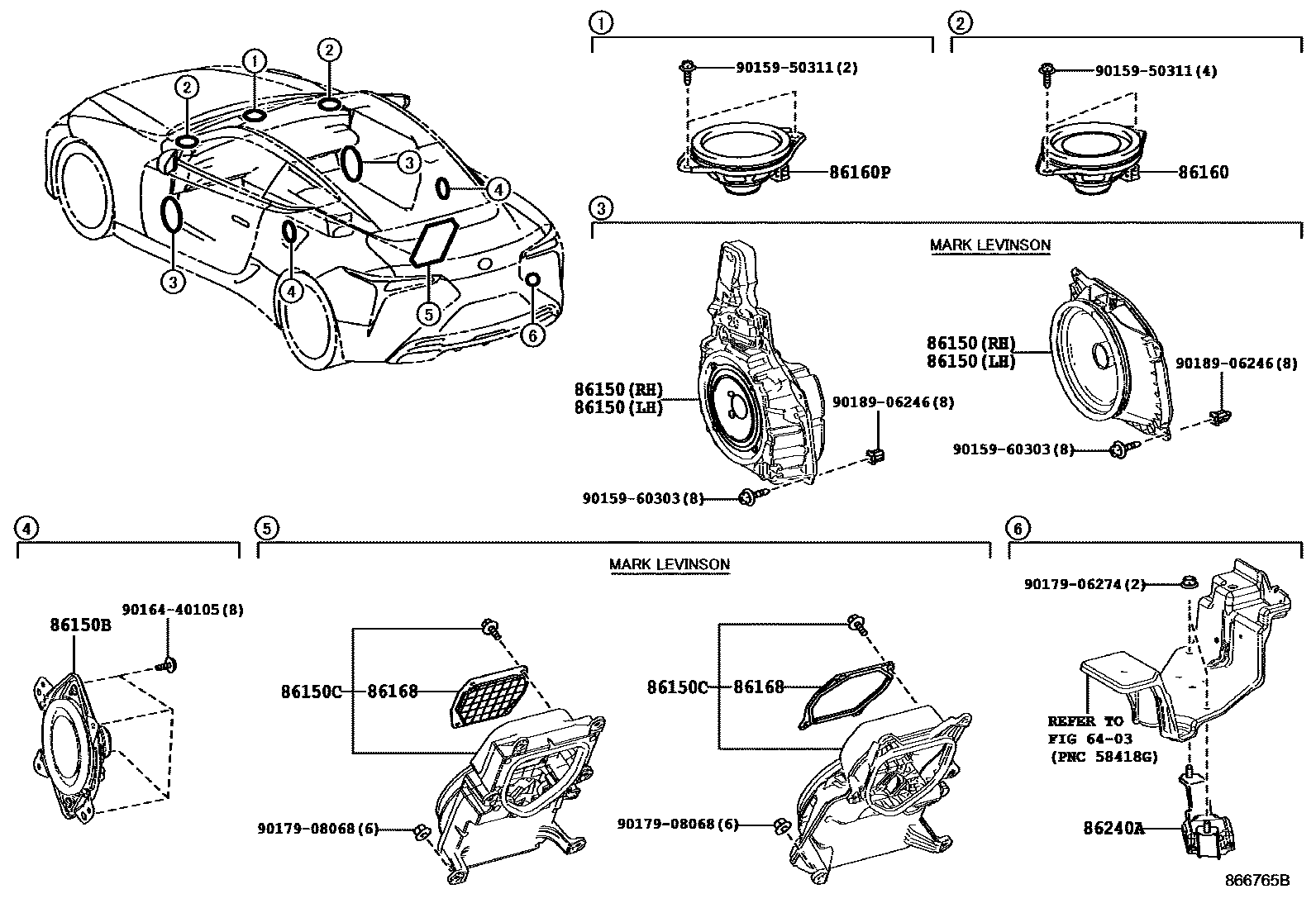

14 parts on this diagram · 1 diagram in section
