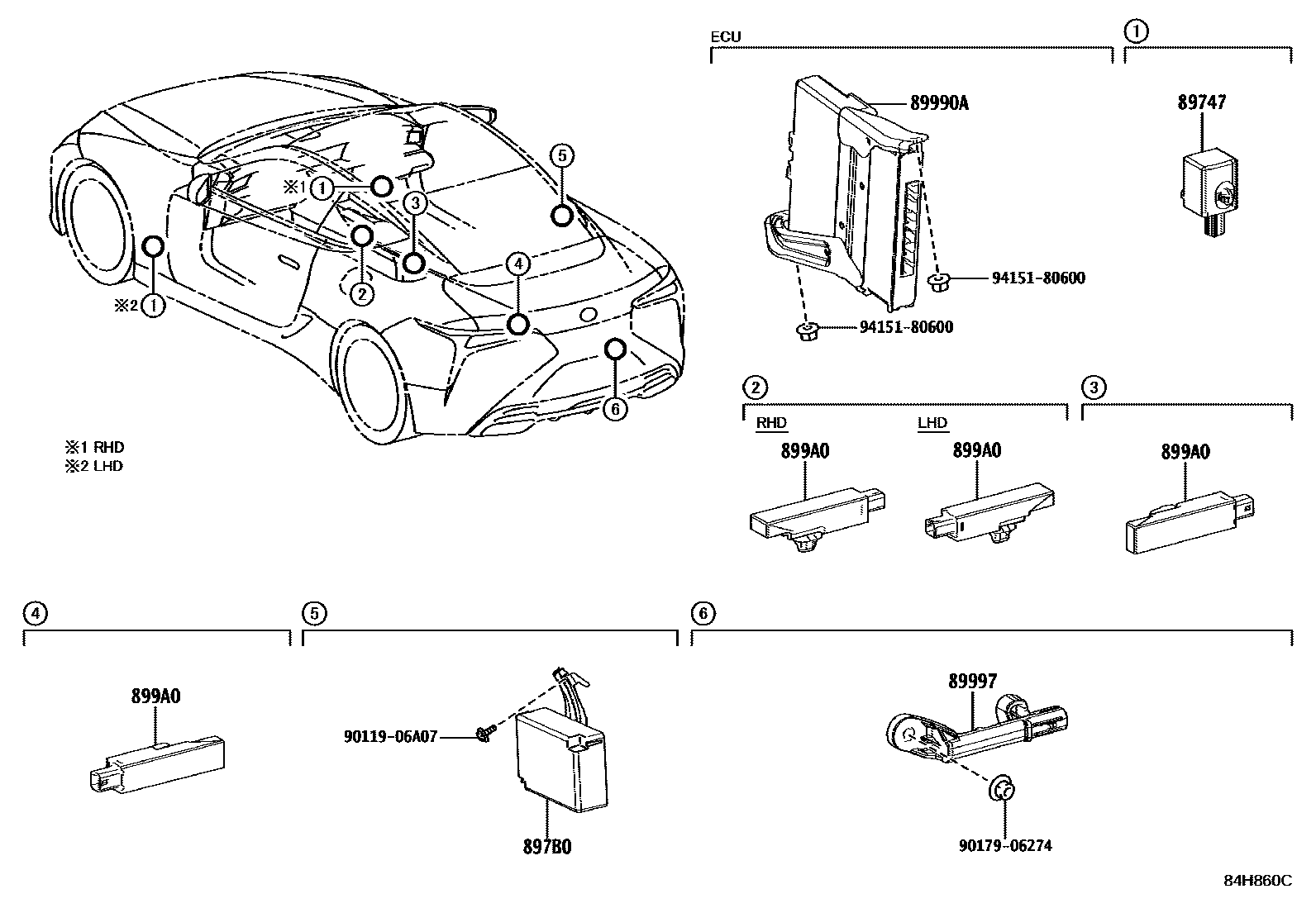

WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGWZ100,URZ100201705

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-11060iGWZ100,URZ100201705-201809

main897B0-11150iGWZ100,URZ100201809-202207

main897B0-11151iGWZ100,URZ100202208-202305

main897B0-11070iGWZ100,URZ100..LHD201705-201809

ISRAEL SPEC

main897B0-11121iGWZ100..RHD201906-202305

INDIA SPEC

main897B0-11160iGWZ100,URZ100..LHD201809-202305

ISRAEL SPEC

89990ACOMPUTER ASSY, SMART KEY

main89990-11011iURZ100201705-201809

main89990-11031iGWZ100201705-201809

main89990-11050iURZ100201809-202004

main89990-11060iGWZ100201809-202007

main89990-11100iURZ100202004-202111

main89990-11101iURZ100202112

main89990-11110iGWZ100202007-202201

main89990-11111iGWZ100202202

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGWZ100,URZ100201705

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010×3iGWZ100,URZ100201705

9011906A07

main90119-06A07

9017906274

main90179-06274

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
