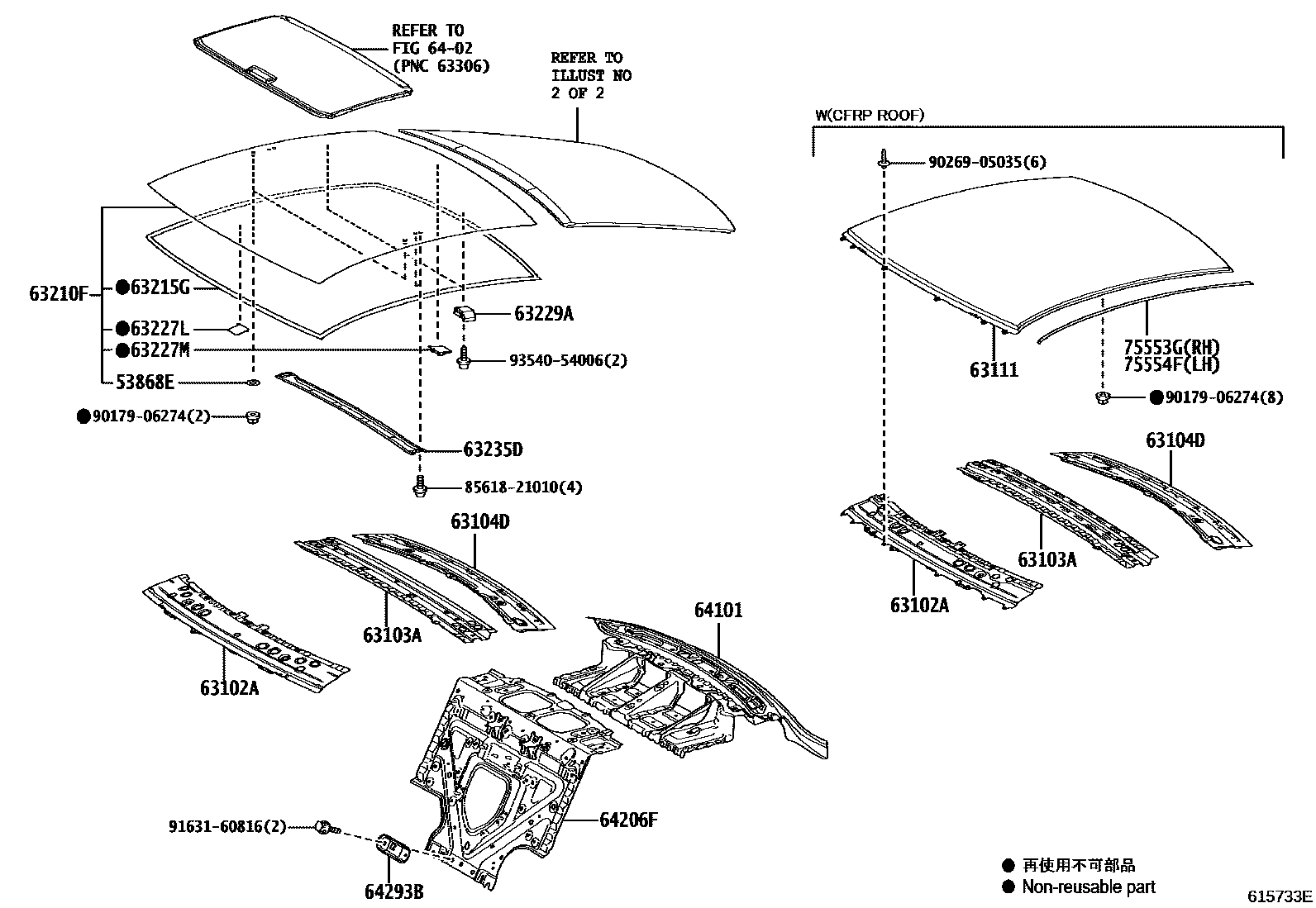

ROOF PANEL & BACK WINDOW GLASS
53868ESEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA; WITH(CARBON ROOF); WITH(CARBON ROOF)&ROOF HEADLINING-ALCANTARA
63102APANEL SUB-ASSY, WINDSHIELD HEADER
"S PACKAGE"
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
LUSTER YELLOW*()
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63111PANEL, ROOF
"S PACKAGE"
63210FGLASS ASSY, MOON ROOF
WITH(CARBON ROOF); WITH(CARBON ROOF)&ROOF HEADLINING-ALCANTARA
63215GMOULDING, MOON ROOF, FRONT
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA
63227LCLIP, ROOF WINDOW
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA
63227MCLIP, ROOF WINDOW, LOWER
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA
63229ASTOPPER, SLIDING ROOF SUNSHADE
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA
63235DFRAME, SLIDING ROOF HOUSING, CENTER
"AVIATION"*(D)&ROOF HEADLINING-ALCANTARA; "S PACKAGE"; "S PACKAGE"&ROOF HEADLINING-ALCANTARA
6402ROOF HEADLINING & SILENCER PAD
64101PANEL SUB-ASSY, UPPER BACK
64206FPANEL SUB-ASSY, ROOM PARTITION
64293BRETAINER, ROOM PARTITION
75553GMOULDING, ROOF DRIP SIDE, REAR RH
LUSTER YELLOW*()
75554FMOULDING, ROOF DRIP SIDE, REAR LH
LUSTER YELLOW*()
8561821010SCREW, SLIDE ROOF MOTOR THRUST
main85618-21010
9017906274
main90179-06274
9026905035
main90269-05035
9163160816
main91631-60816
9354054006
main93540-54006
22 parts on this diagram · 2 diagrams in section
