55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-11010i201705

main55213-11020i201705

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-11010i201705

main55215-11020i201705

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-11010i201705

58190BREST ASSY, FRONT FLOOR FOOT

main58190-11010i201705

main58190-11020i201705

58192GPANEL, FOOTREST, NO.2

main58192-11010i201705

main58192-11020i201705

58299GNET, BAGGAGE HOLDER

main58299-11010-C1i201705-202004

BLACK,TRIM2#,3#,41

main58299-11010-E2i201705

OCHRE,TRIM40

main58299-11010-J1i201705-202004

BLUE,TRIM8#

58441ECOVER, BATTERY SERVICE HOLE

main58441-11010-C1i201705

BLACK,TRIM2#,3#,41,42

main58441-11010-E0i201705

OCHRE,TRIM40

main58441-11010-J0i201705-202004

BLUE,TRIM8#

58441FCOVER, BATTERY SERVICE HOLE

main58441-11020-C1i201705

BLACK,TRIM2#,3#,41,42

main58441-11020-E0i201705

OCHRE,TRIM40

main58441-11020-J0i201705-202004

BLUE,TRIM8#

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-11040-C4i201705-202004

BLACK,TRIM2#,3#,41

main58510-11040-E3i201705-202004

OCHRE,TRIM40

main58510-11040-J2i201705-202004

BLUE,TRIM8#

main58510-11050-C3i201705-202004

BLACK,TRIM2#,3#,41

main58510-11050-E2i201705-202004

OCHRE,TRIM40

main58510-11050-J1i201705-202004

BLUE,TRIM8#

main58510-11060-C4i201705-202004

BLACK,TRIM2#,3#,41

main58510-11060-E3i201705-202004

OCHRE,TRIM40

main58510-11060-J2i201705-202004

BLUE,TRIM8#

main58510-11070-C3i201705-202004

BLACK,TRIM2#,3#,41

main58510-11070-E2i201705-202004

OCHRE,TRIM40

main58510-11070-J1i201705-202004

BLUE,TRIM8#

main58510-11080-C0i202004

BLACK,TRIM2#,3#,42

main58510-11080-E1i202004

OCHER,TRIM40

main58510-11090-C0i202004

BLACK,TRIM2#,3#,42

main58510-11090-E0i202004

OCHRE,TRIM40

main58510-11110-C0i202004

BLACK,TRIM2#,3#,42

main58510-11110-E0i202004

OCHER,TRIM40

main58510-11130-C0i202004

BLACK,TRIM2#,3#,42

main58510-11130-E0i202004

OCHRE,TRIM40

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×2i201705

BLACK,TRIM2#,3#,41,42

main90467-07049-J4×2i201705-202004

BLUE,TRIM8#

main90467-07049-L4×2i201705

OCHRE,TRIM40

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-11020-C1i201705-202004

BLACK,TRIM2#,3#,41

main58520-11020-E0i201705-202004

OCHRE,TRIM40

main58520-11020-J0i201705-202004

BLUE,TRIM8#

main58520-11030-C3i201705-202004

BLACK,TRIM2#,3#,41

main58520-11030-E2i201705-202004

OCHRE,TRIM40

main58520-11030-J2i201705-202004

BLUE,TRIM8#

main58520-11040-C1i201705-202004

BLACK,TRIM2#,3#,41

main58520-11040-E0i201705-202004

OCHRE,TRIM40

main58520-11040-J0i201705-202004

BLUE,TRIM8#

main58520-11050-C3i201705-202004

BLACK,TRIM2#,3#,41

main58520-11050-E2i201705-202004

OCHRE,TRIM40

main58520-11050-J2i201705-202004

BLUE,TRIM8#

main58520-11060-C0i202004

BLACK,TRIM2#,3#,42

main58520-11060-E0i202004

OCHRE,TRIM40

main58520-11070-C0i202004

BLACK,TRIM2#,3#,42

main58520-11070-E1i202004

OCHER,TRIM40

main58520-11090-C0i202004

BLACK,TRIM2#,3#,42

main58520-11090-E0i202004

OCHRE,TRIM40

main58520-11110-C0i202004

BLACK,TRIM2#,3#,42

main58520-11110-E0i202004

OCHER,TRIM40

58530BCLIP(FOR FRONT FLOOR CARPET)

main63399-26050-B0×8i201705

LT.GRAY

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-11010-C1i201705

BLACK,TRIM2#,3#,41,42

main58569-11010-E0i201705

OCHRE,TRIM40

main58569-11010-J0i201705-202004

BLUE,TRIM8#

58694BPLATE, MAT SET, UPPER

main58694-78010×4i201705

58698CPLATE, MAT SET, LOWER

main58698-78010×4i201705

59999CLAMP(FOR FLOOR MAT)

main59999-24010-C4×5i201705-202004

BLACK,TRIM2#,3#,41

main59999-24010-E3×5i201705

OCHRE,TRIM40

main59999-24010-J1×5i201705-202004

BLUE,TRIM8#

62135CRETAINER, COWL SIDE CARPET

main62135-30020×2i201705

62533HBRACKET, SIDE TRIM, NO.1

main62533-11010×2i201705

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

9016840061

main90168-40061

9046705172

main90467-05172

9046709229

main90467-09229

9046710217

main90467-10217

9167380620

main91673-80620

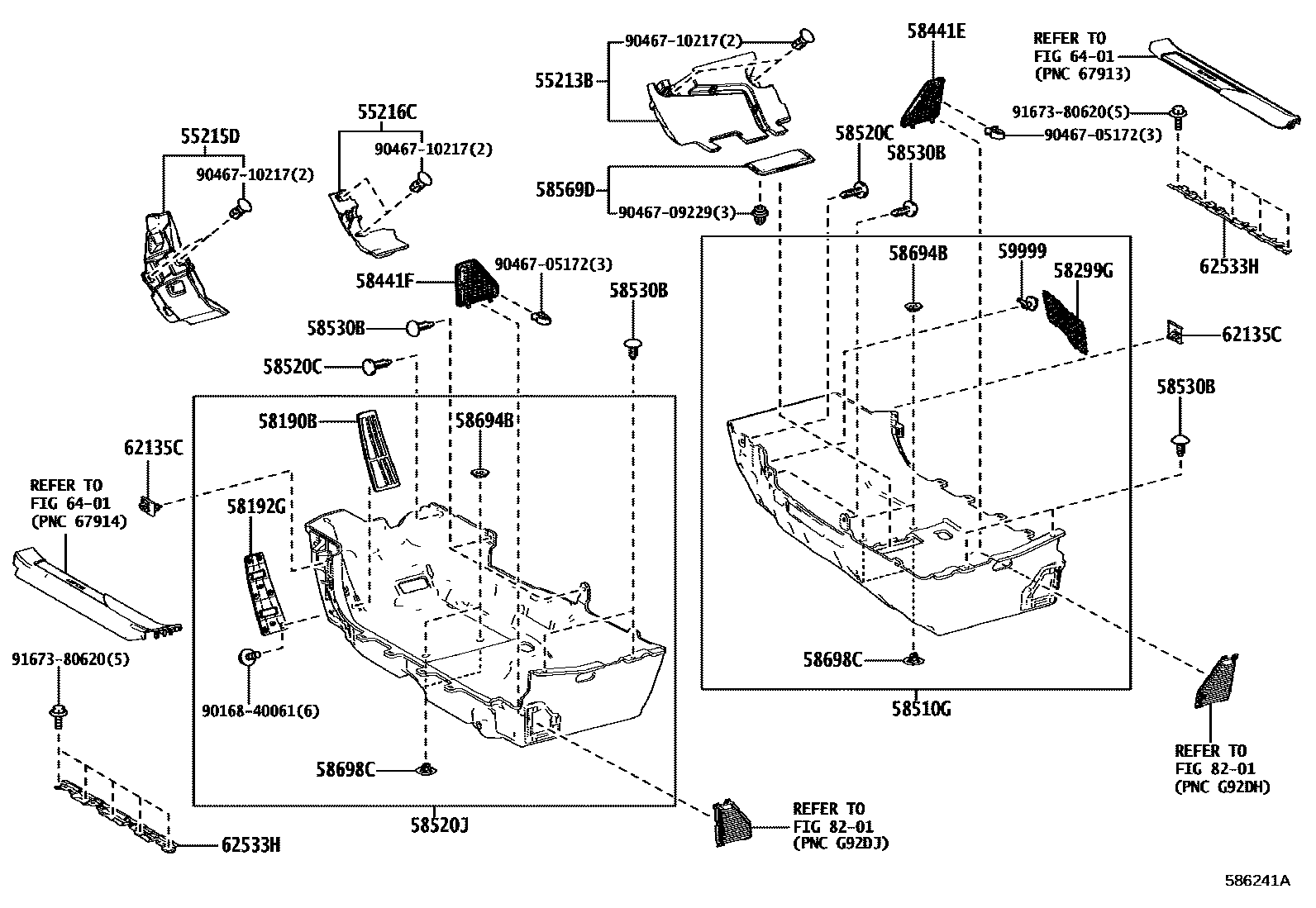

MAT & CARPET
