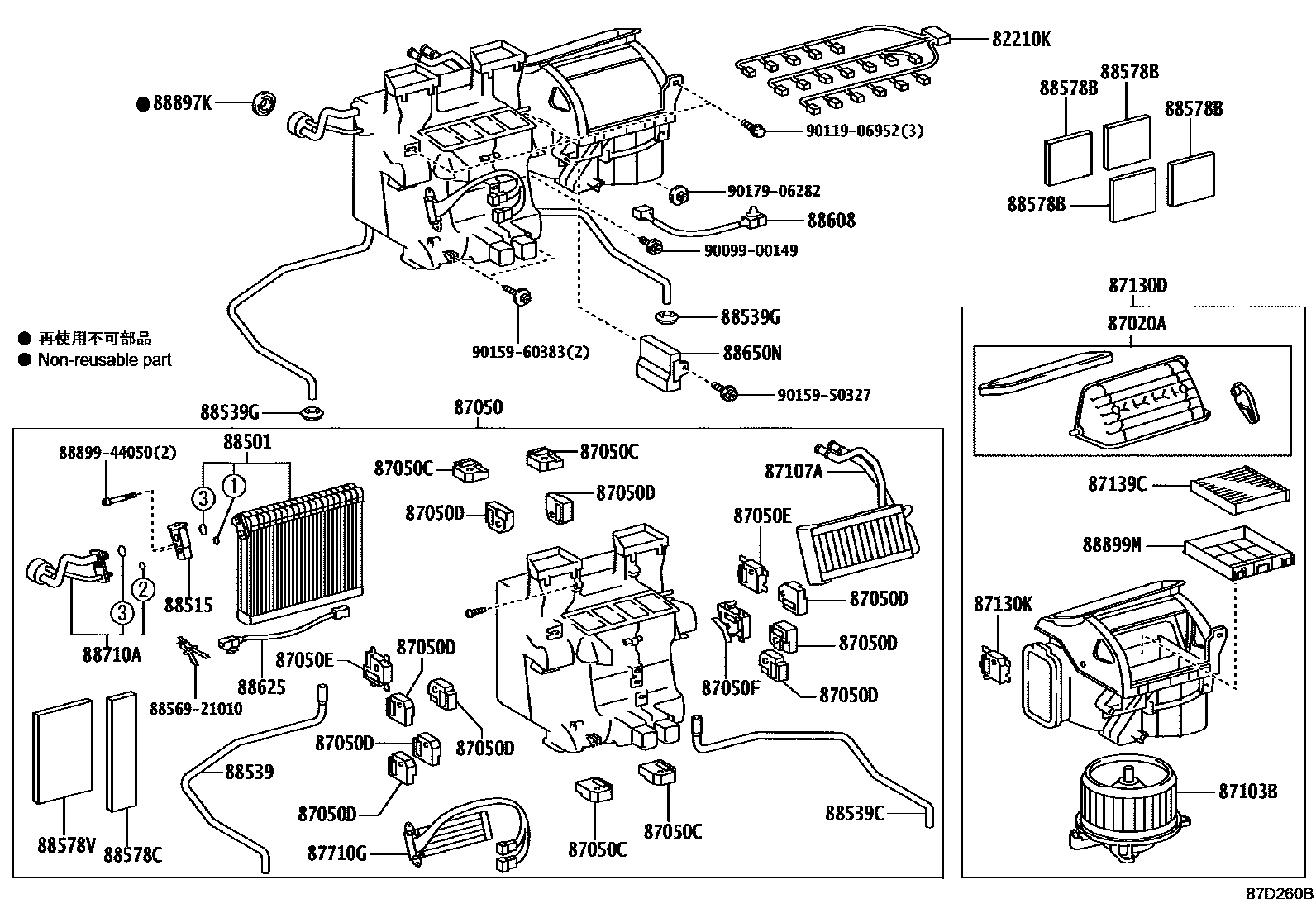

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87050FDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139CFILTER, CLEAN AIR
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88650NAMPLIFIER ASSY, AIR CONDITIONER
COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-WOOD,WITH(STEERING HEATER); F SPORT&COLD AREA SPEC&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-WOOD,WITH(STEERING HEATER); F SPORT&COLD AREA SPEC&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); COLD AREA SPEC&STEERING WHEEL-WOOD,WITH(STEERING HEATER); F SPORT&COLD AREA SPEC&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); STEERING WHEEL-WOOD,WITH(STEERING HEATER); VERSION L&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); STEERING WHEEL-WOOD,WITH(STEERING HEATER); VERSION L&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC
STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC
F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); STEERING WHEEL-WOOD,WITH(STEERING HEATER); VERSION L&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC
STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER); STEERING WHEEL-WOOD,WITH(STEERING HEATER); VERSION L&STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
COLD AREA SPEC
STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH); STEERING WHEEL-WOOD & LEATHER,WITH(STEERING HEATER)
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
8856921010CLAMP (FOR COOLER RELAY)
main88569-21010
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9011906952
main90119-06952
9015950327
main90159-50327
9015960383
main90159-60383
9017906282
main90179-06282
34 parts on this diagram · 5 diagrams in section
