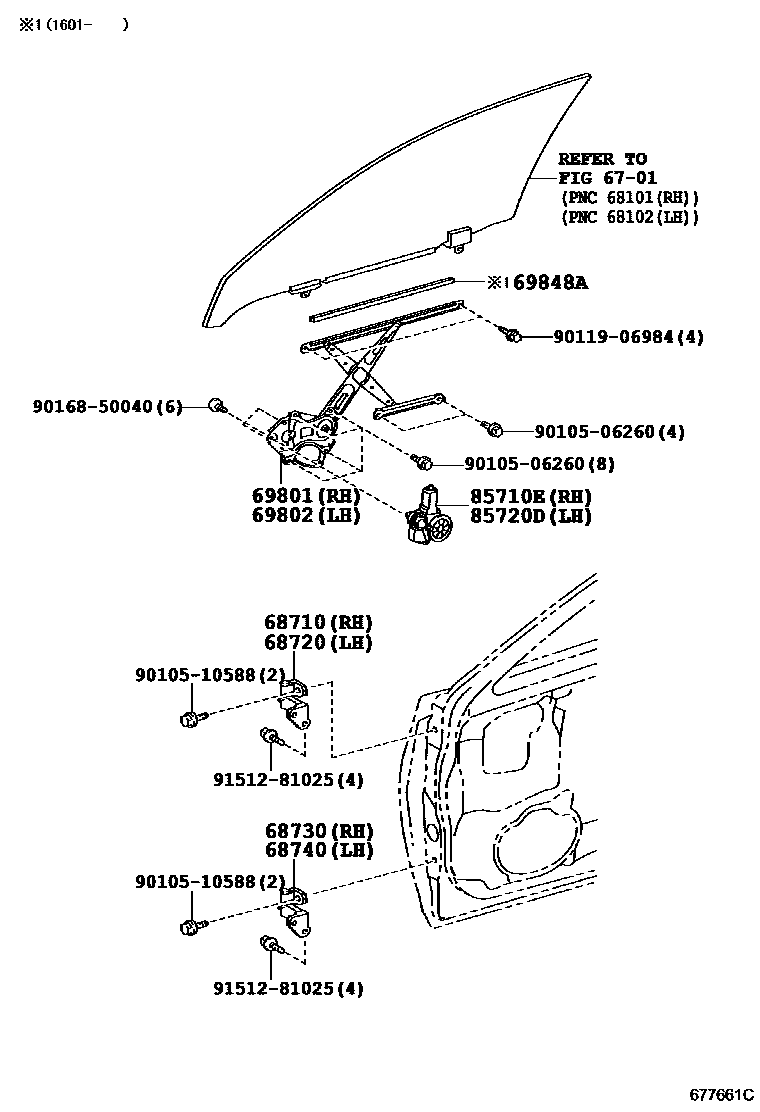

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68730-30180iUVF4#201209

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68740-30080iUVF4#201209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30160iUVF4#201209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30060iUVF4#201209

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iUVF4#201209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iUVF4#201209

69848ASEAL, WINDOW REGULATOR HOLE(FOR FRONT DOOR)

main69848-50010×2iUVF4#201601

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33251iUVF4#201509-201605

main85710-50103iUVF46..CHI201209-201212

main85710-50104iUVF4#201212-201509

main85710-50160iUVF4#201606

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33251iUVF4#201509-201605

main85720-50103iUVF46..CHI201209-201212

main85720-50104iUVF4#201212-201509

main85720-50150iUVF4#201606

9010506260

main90105-06260

9010510588

main90105-10588

9011906984

main90119-06984

9016850040

main90168-50040

9151281025

main91512-81025

15 parts on this diagram · 1 diagram in section
