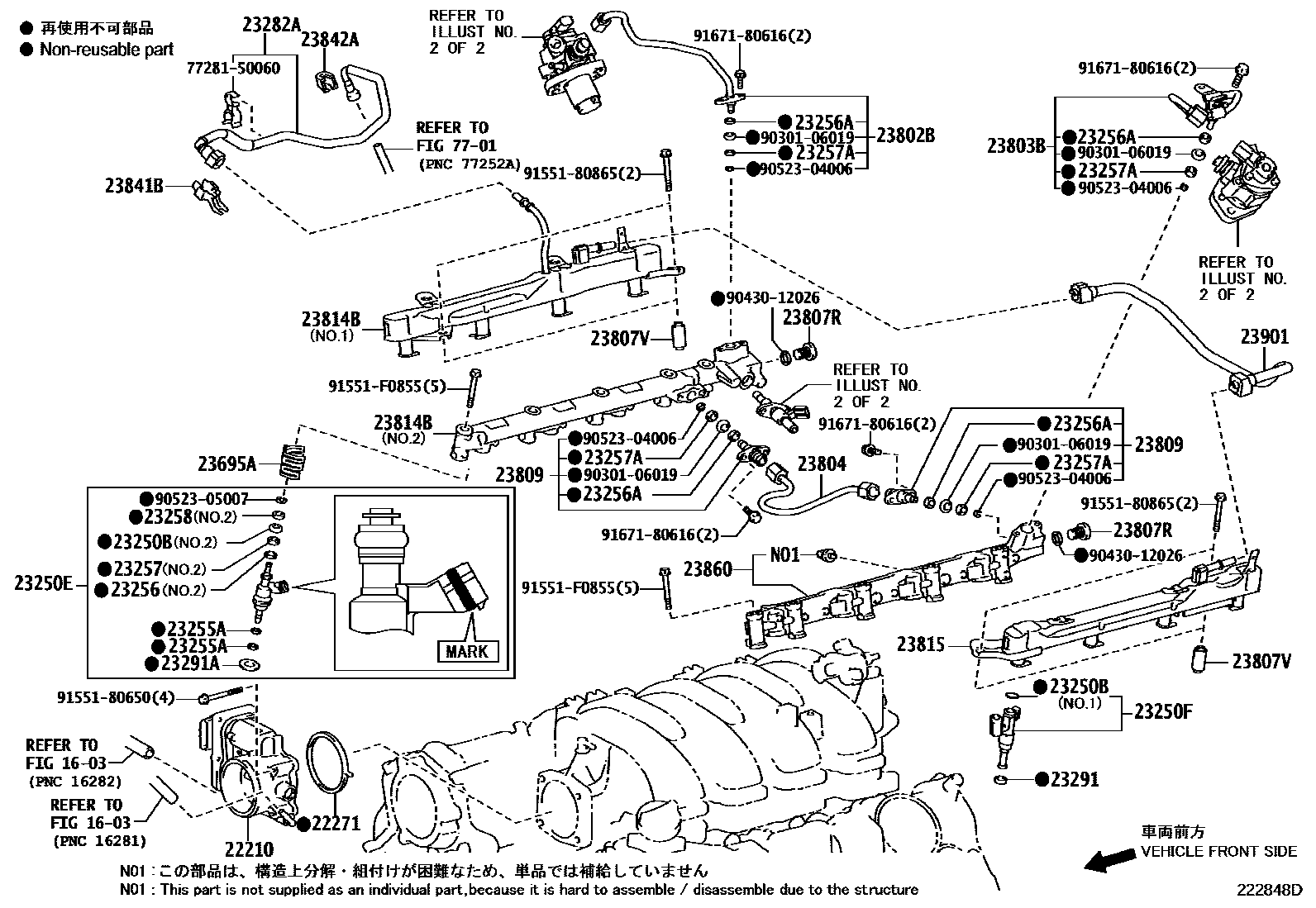

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
NO.2; NO.3
NO.1
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK YELLOW
MARK BLACK
MARK BROWN
MARK GREEN
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1; NO.2
23256ARING, FUEL PIPE, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
NO.1; NO.2
23257ARING, FUEL PIPE, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.1; NO.2
23282AHOSE, FUEL, NO.4
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23695ACLAMP, NOZZLE HOLDER
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23804PIPE SUB-ASSY, FUEL, NO.4
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809SUPPORT SUB-ASSY, FUEL PIPE
23814BPIPE, FUEL DELIVERY
NO.1
NO.2
23815PIPE, FUEL DELIVERY, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
7728150060BRACKET, FUEL MAIN TUBE, NO.1
main77281-50060
9030106019
main90301-06019
9043012026
main90430-12026
9052304006
main90523-04006
9052305007
main90523-05007
9155180650
main91551-80650
9155180865
main91551-80865
91551F0855
main91551-F0855
9167180616
main91671-80616
38 parts on this diagram · 2 diagrams in section
