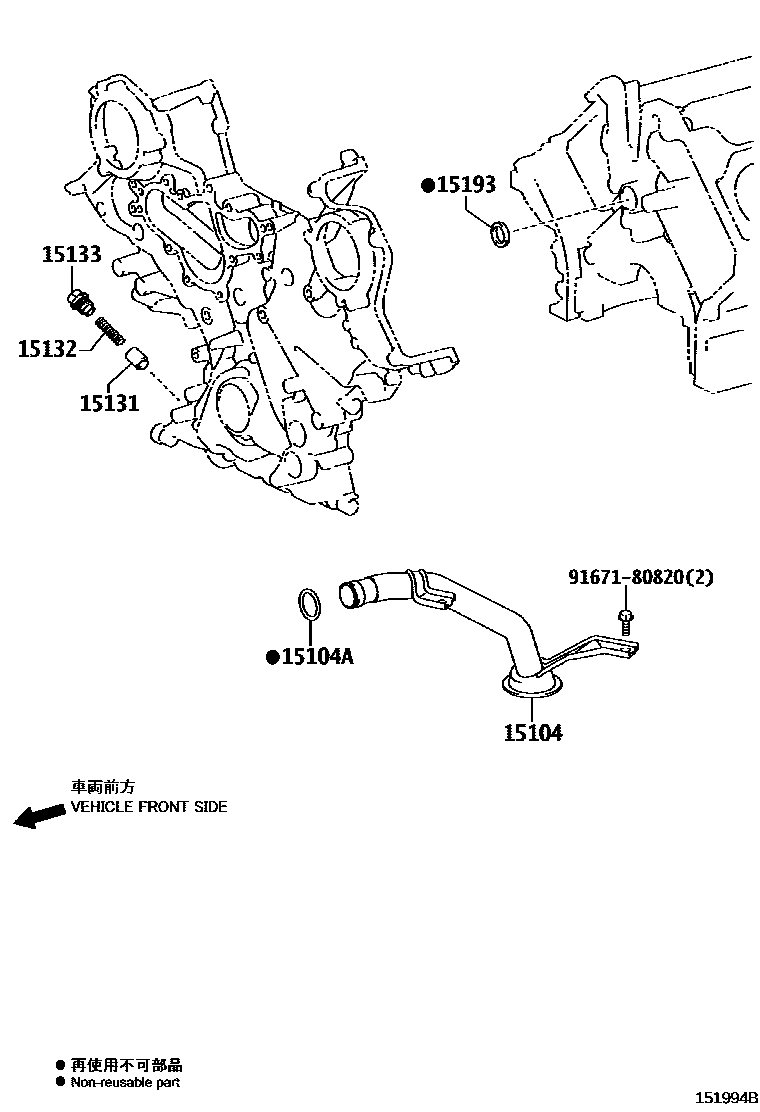

ENGINE OIL PUMP

15104STRAINER SUB-ASSY, OIL

main15104-38070i2URFSE..UVF4#201209

15104ARING, O(FOR OIL STRAINER)

main96721-24028i2URFSE..UVF4#201209

15131VALVE, OIL PUMP RELIEF

main15131-38070i2URFSE..UVF4#201209

15132SPRING, OIL PUMP RELIEF VALVE

main15132-38070i2URFSE..UVF4#201209

15133PLUG, OIL PUMP RELIEF VALVE

main15133-38070i2URFSE..UVF4#201209

15193GASKET, OIL PUMP

main15193-38010i2URFSE..UVF4#201209

9167180820

main91671-80820

7 parts on this diagram · 1 diagram in section
