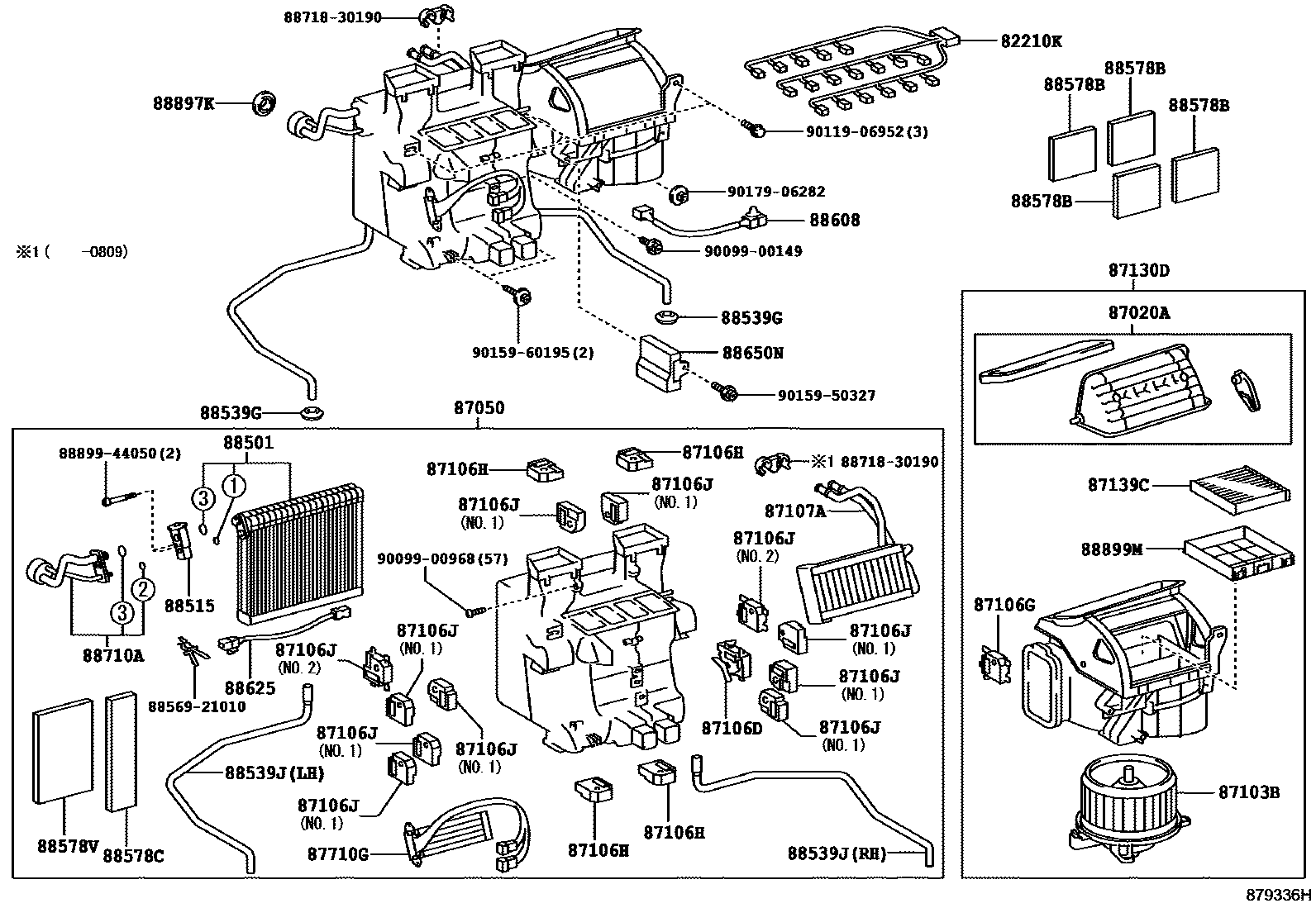

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
NO.1
NO.2
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
DRIVER SIDE
PASSENGER SIDE
DRIVER SIDE
PASSENGER SIDE
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)
WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)
WITH(REAR POWER SEAT)
WITH(REAR POWER SEAT)
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
8856921010CLAMP (FOR COOLER RELAY)
main88569-21010
8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30190
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9009900968
main90099-00968
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9017906282
main90179-06282
34 parts on this diagram · 7 diagrams in section
