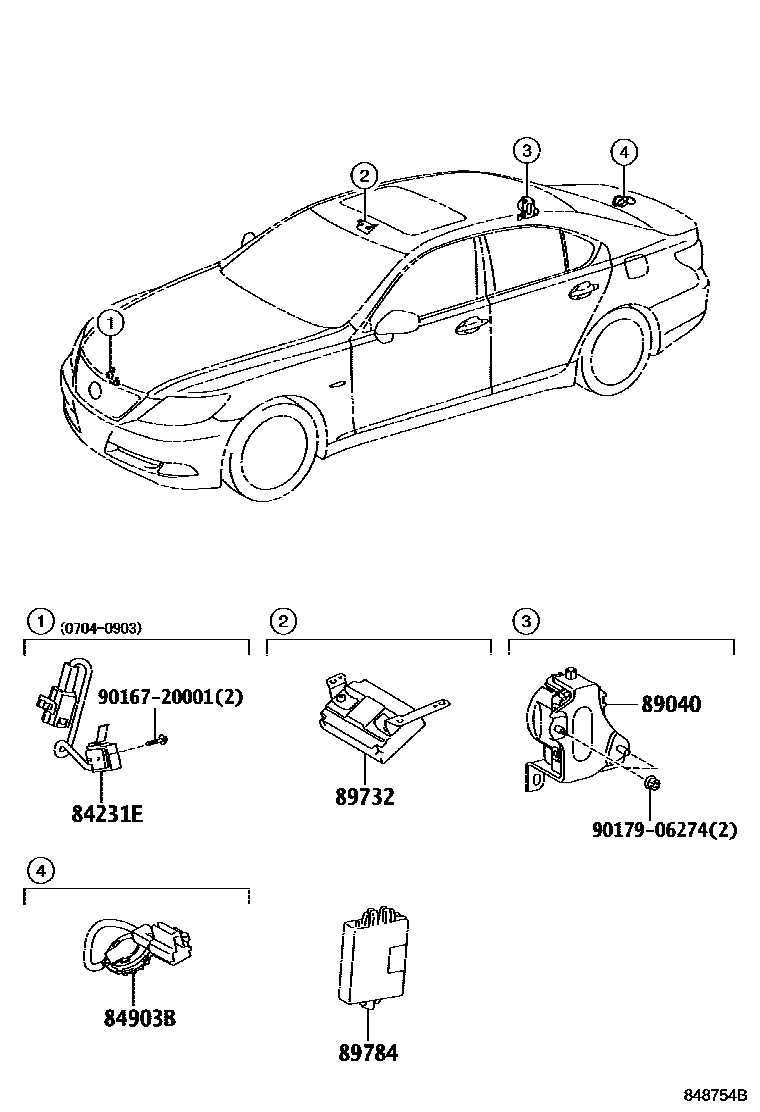

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-50160i200809-200903

main84231-50170i200704-200809

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-50210i200809-200911

89040SIREN ASSY, THEFT WARNING

main89040-50030i200704-200809

main89040-50040i200911

89732SENSOR, THEFT WARNING RADAR

main89732-50020supersedes 89732-50061i200704-200809

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH

main89732-50040supersedes 89732-50051i200704-200809

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH; ANTI-THEFT SYSTEM-WITH(SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH

main89732-50041supersedes 89732-50051i200811-200911

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH; ANTI-THEFT SYSTEM-WITH(SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH

main89732-50050supersedes 89732-50041i200704-200809

MOON ROOF-WITH

main89732-50051i200911-201209

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH; ANTI-THEFT SYSTEM-WITH(SIREN); ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH; FORMOSA SPEC; FORMOSA SPEC&MOON ROOF-WITH; ISRAEL SPEC; ISRAEL SPEC&MOON ROOF-WITH; KAZAKHSTAN SPEC; MOON ROOF-WITH; PHILIPPINES SPEC; RUSSIA SPEC; RUSSIA SPEC&MOON ROOF-WITH; SOUTH AMERICA SPEC; TURKY SPEC

main89732-50060supersedes 89732-50061i200809-200810

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH; MOON ROOF-WITH

main89732-50061supersedes 89732-50021i200811-200911

ANTI-THEFT SYSTEM-WITH; ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH; MOON ROOF-WITH

89784COMPUTER, IMMOBILIZER CODE

main89784-50010i200809-200911

main89784-50020i200911-201008

main89784-50030i201009

9016720001

main90167-20001

9017906274

main90179-06274

7 parts on this diagram · 4 diagrams in section
