STANDARD TOOL

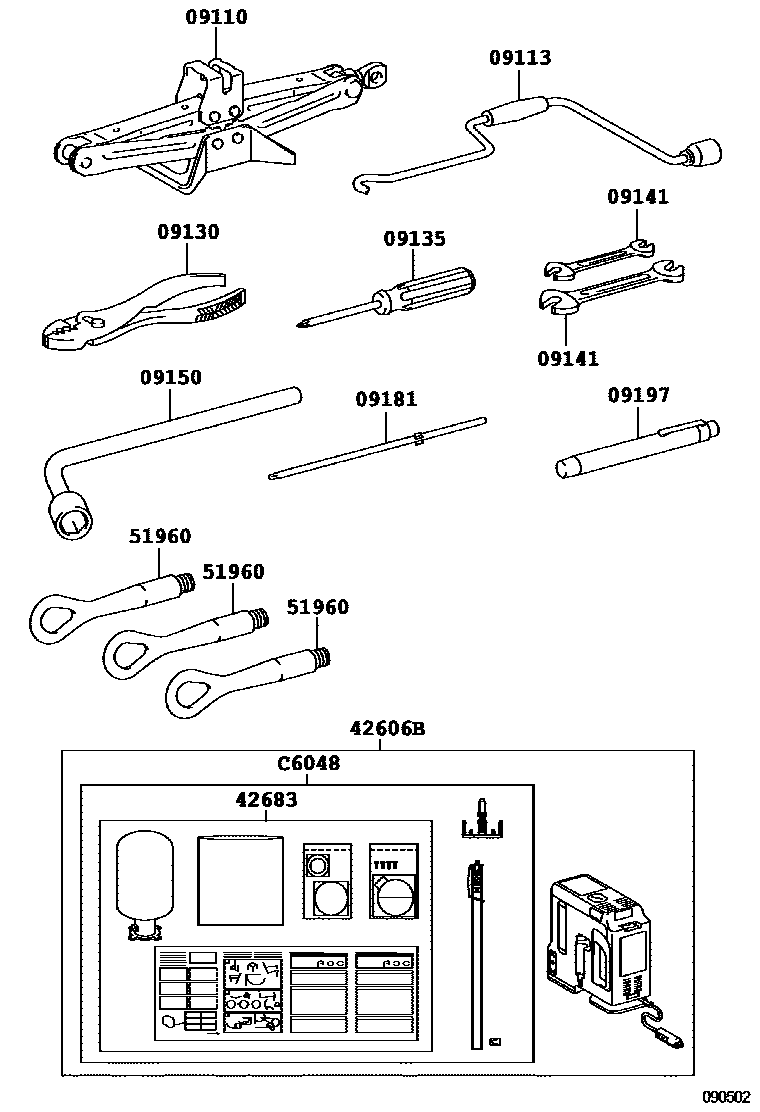

Parts diagram

09110JACK ASSY

main09111-50080i200704-201102

main09111-50110i201103

09113HANDLE, JACK

main09113-50010i200704-201012

main09113-50030i201101

09130PLIERS

main09130-50040i200704-200911

09135DRIVER, SCREW

main09135-50050i200704-200911

main09135-50060i200912

main99915-10700i200911-200912

09141SPANNER

main09141-50050i200704-201107

8 X 10

main09141-50060i200704-201107

12 X 14

main09141-50070i201107

8 X 10

main09141-60010i200911

8 X 10

main09141-60010i200911

8 X 10,SPARE TIRE-GROUND TIRE

main09141-60020i200911

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50030i200704-200911

main09150-50040i200911-201209

09181ROD, PARKING BRAKE RELEASE

main09181-50010i200704-201209

09197LIGHT, PEN

main09197-50040i200704-200911

42606BREPAIR KIT, TUBELESS TIRE

main42606-50020i200809-200911

SPARE TIRE-GROUND TIRE(COATED WHEEL)

main42606-50020i200911-201205

SPARE TIRE-GROUND TIRE

main42606-50021i201206-201209

SPARE TIRE-GROUND TIRE

42683SEAL, TIRE REPAIR

main42683-50020i200809-200911

SPARE TIRE-GROUND TIRE(COATED WHEEL)

main42683-50020i200911-201205

SPARE TIRE-GROUND TIRE

main42683-50021i201206-201209

SPARE TIRE-GROUND TIRE

51960HOOK ASSY, FRONT

main51961-50040i200704-200911

main51961-50050i200911-201110

main51961-50051i201111-201209

C6048REPAIR SET, TIRE

mainC604850020i200809-200911

SPARE TIRE-GROUND TIRE(COATED WHEEL)

mainC604850020i200911-201205

SPARE TIRE-GROUND TIRE

mainC604850021i201206-201209

SPARE TIRE-GROUND TIRE

12 parts on this diagram · 1 diagram in section
