WINDSHIELD WIPER

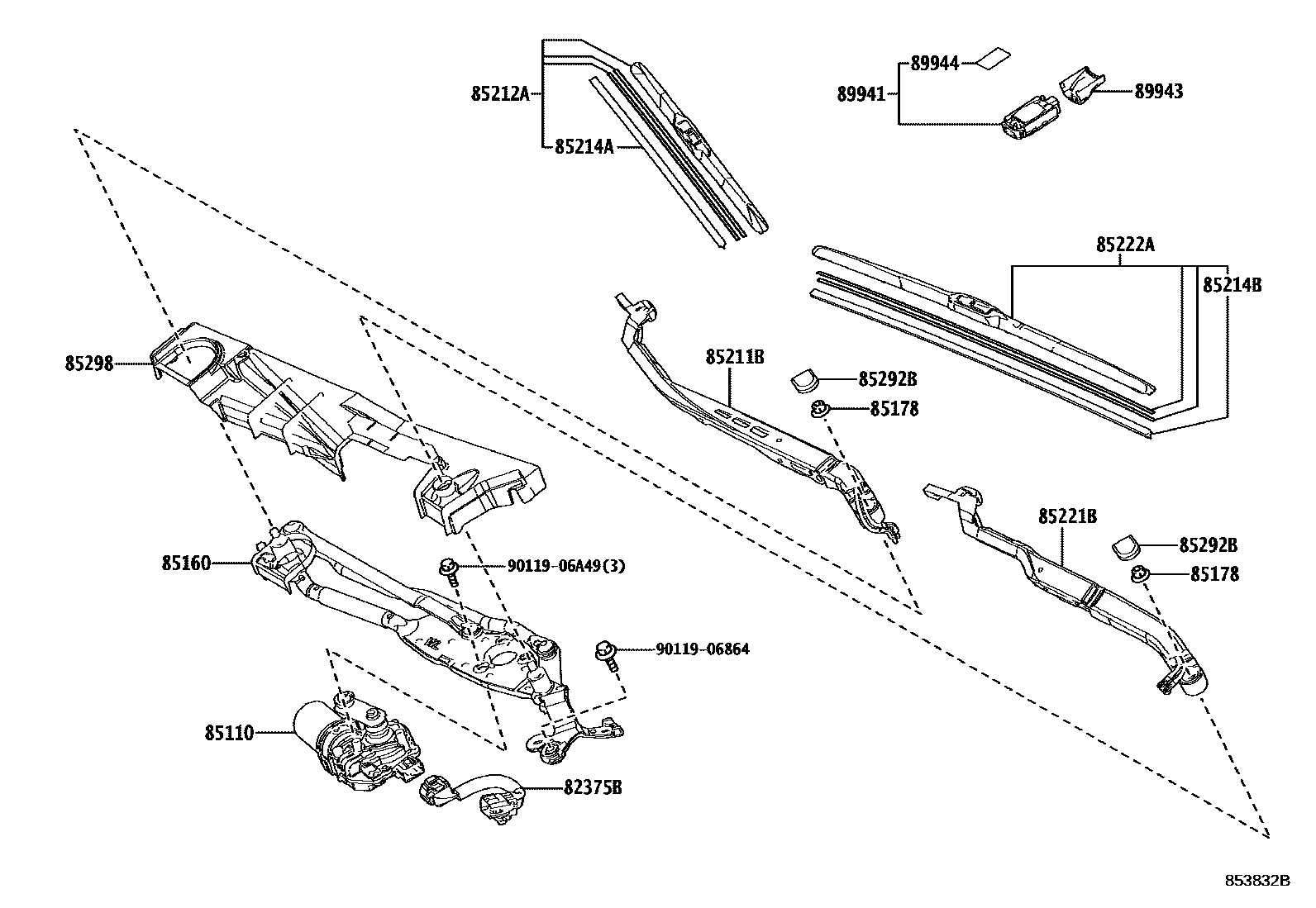

Parts diagram

82375BWIRE, WIPER MOTOR

main82375-50030i201710-202010

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-50170i201710-202007

main85110-50171i202011-202410

main85110-50180i201710-202007

main85110-50181i202011-202310

main85110-50190i202310-202410

main85110-50200i202310-202509

85160LINK ASSY, WINDSHIELD WIPER

main85150-50220i201710-202010

main85150-50221i202011-202410

main85150-50230i201710-202010

main85150-50231i202011-202509

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i202011-202410

85211BARM, FRONT WIPER, RH

main85211-50200i202011-202509

main85211-50220i201710-202010

85212ABLADE, FR WIPER, RH

main85212-50130i202011-202509

main85212-50140i202011-202410

85214ARUBBER, WIPER, RH

main85214-11010i201710-202010

main85214-60120i201710-202010

85214BRUBBER, WIPER, LH

main85214-11010i202011-202410

main85214-60120i201710-202010

85221BARM, FRONT WIPER, LH

main85221-50180i201710-202010

main85221-50200i201710-202010

85222ABLADE, FR WIPER, LH

main85222-50110i202011-202410

main85222-50130i201710-202010

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201710-202010

85298COVER, WIPER MOTOR

main85111-50080i202011-202509

main85111-50090i202011-202509

89941SENSOR, RAIN

main89941-11010i201710-202010

main89941-33060i202011-202310

main89941-50100i202011-202310

main89941-50110i202310-202410

main89941-50120i202310

89943COVER, RAIN SENSOR

main89943-11010i202011-202410

89944TAPE, RAIN SENSOR

main89944-42020i202011

main89944-48010i201710-201809

9011906864

main90119-06864

9011906A49

main90119-06A49

17 parts on this diagram · 4 diagrams in section
